Key Reminder Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the column cover.
Disconnect the key reminder switch connector.
Inspect for continuity between the key reminder switch terminals using an ohmmeter.
- If not as specified, replace the key reminder switch.

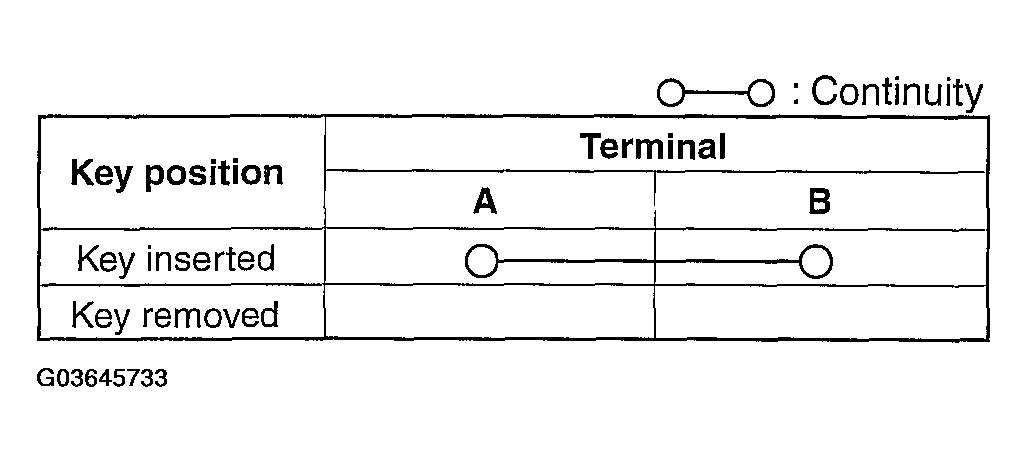

  Fig 1: Key Reminder Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.

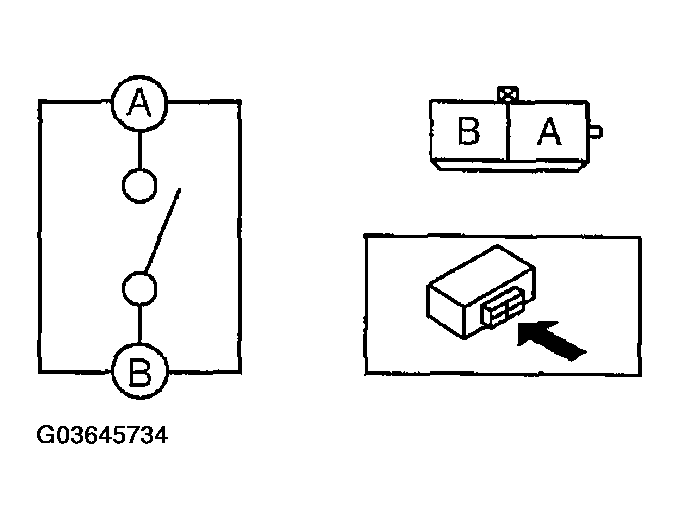

  Fig 2: Key Reminder Switch Circuit Diagram And Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
