When the customer has two or more valid keys from the old steering lock
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When replacing the steering lock, the coil and keys should be replaced as a set.
- If no specific time interval is given, each step should be performed within 30 seconds of the previous step.
- Remove the steering lock.
- Connect the ignition switch connector and key reminder switch connector to a new steering lock.

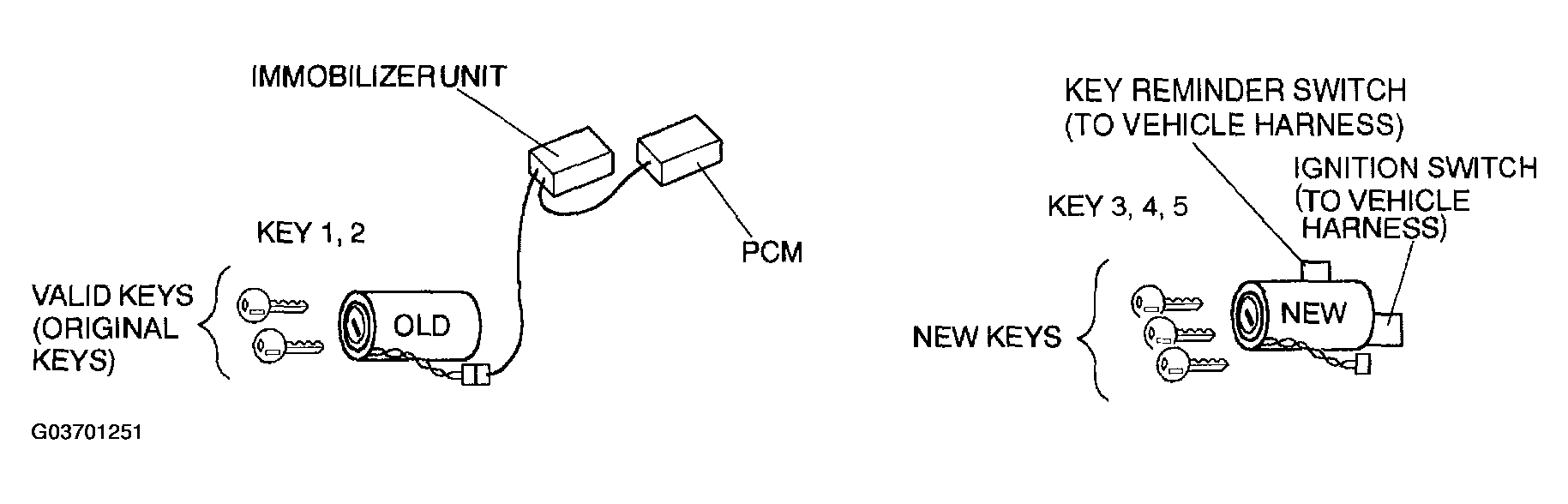

- Connect the coil connector to the removed steering lock as shown in the figure.
- Insert key 1 into the removed steering lock.
- Insert key 3 into the new steering lock and hold for 1 second or more.
- Remove and insert key 3 five times at no more than 1-second intervals.
- Remove key 1 from the steering lock.
- Insert key 2 into the removed steering lock.
- Insert key 3 into the new steering lock and turn the key to the ON position. (1) Verify that the security light illuminates.
- After verifying that the security light goes off, turn the key to the LOCK position.NOTE:
- Perform Steps 11 and 12 within 30 seconds after Step 10.
- Disconnect the coil connector from the removed steering lock and connect to the hew steering lock.
- Turn key 3 to the ON position and verify that the security light illuminates.
- After verifying that the security light goes off, turn key 3 to the LOCK position and remove from the steering lock.
- Insert key 4 into the new steering lock and turn the key to the ON position.
- Verify that the security light illuminates.
- After verifying that the security light goes off, turn the key to the LOCK position and remove from the steering lock.
- Insert key 5 into the new steering lock and turn the key to the ON position.
- After verifying that the security light goes off, turn the key to the LOCK position.
- Wait for 30 seconds.
- Install the new steering lock to the vehicle.
