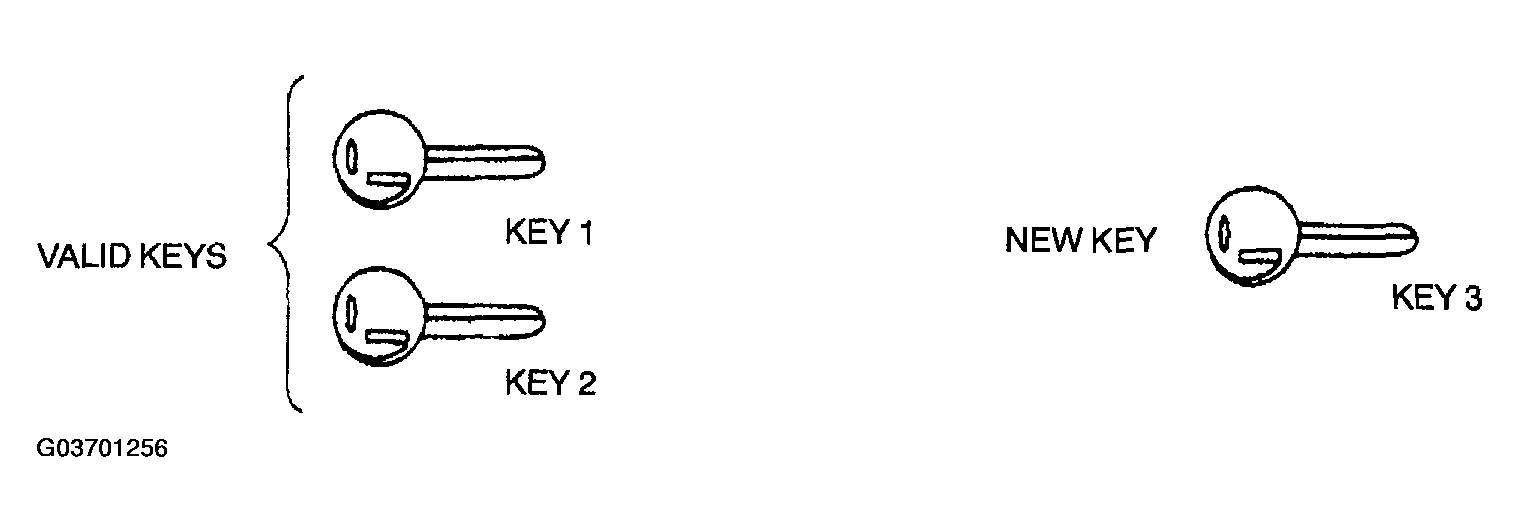

When customer has brought two or more valid keys
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If no specific time interval is given, each step should be performed within 30 seconds of the previous step.
- Cut new transponder equipped key(s).
- Using key 1, turn ignition switch to ON position then back to LOCK position five times.
The key should not remain at ON position or LOCK position for more than 1 second.
- Turn key 1 back to ON position. Observe illumination of security light in instrument cluster.
- Turn key 1 to LOCK position and remove key 1 from steering lock. Observe security light goes out.
- Using key 2, start engine. Observe that security light illuminates (for 1-2 seconds
) and engine continues to run.
- Turn key 2 to LOCK position and remove from steering lock.
- Repeat Step 3 with key 1.
- Repeat Step 3 with key 3.
- If there are 4-8 keys (valid and/or new keys), repeat Step 3.
- Wait for 30 seconds to quit reprogram mode.
