Section 416 (Fuel System)
>>
Fuel System Location Index
>>
Engine compartment side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine compartment side
WARNING:
This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

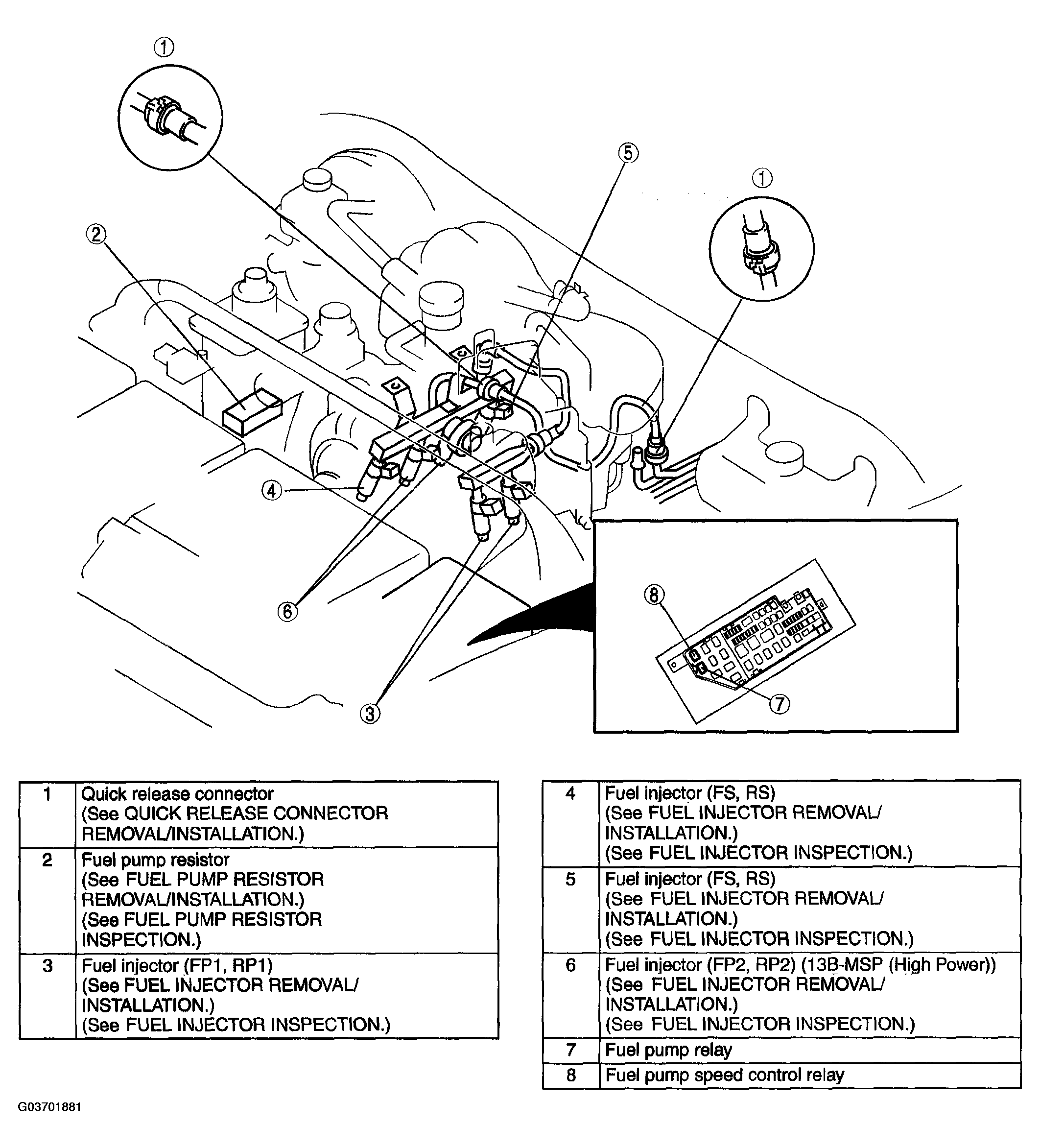

Fig 1: Identifying Fuel System Location Index (ENGINE COMPARTMENT SIDE)
Courtesy of MAZDA MOTORS CORP.
