Refrigerant Pressure Switch Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Discharge the refrigerant from the system. (See REFRIGERANT CHARGING .)

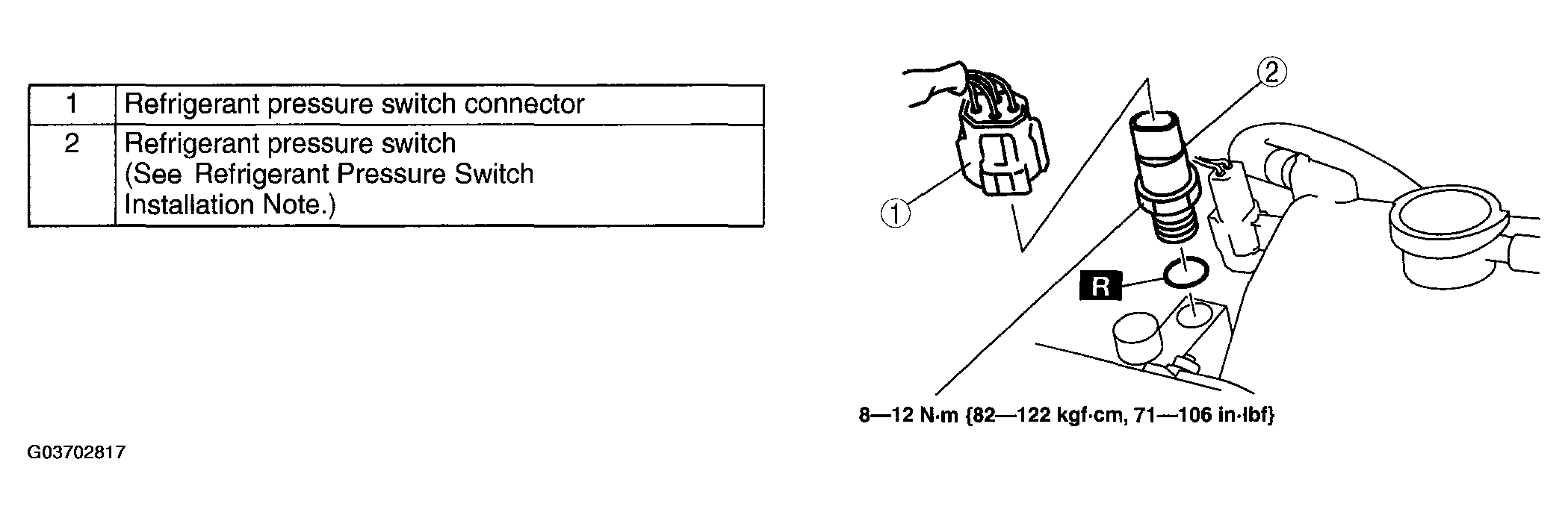

- Hold the piping block with pliers or a similar tool and loosen the refrigerant pressure switch using a wrench.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
