Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Turn over the mud guard.
Remove in the order indicated in the table.

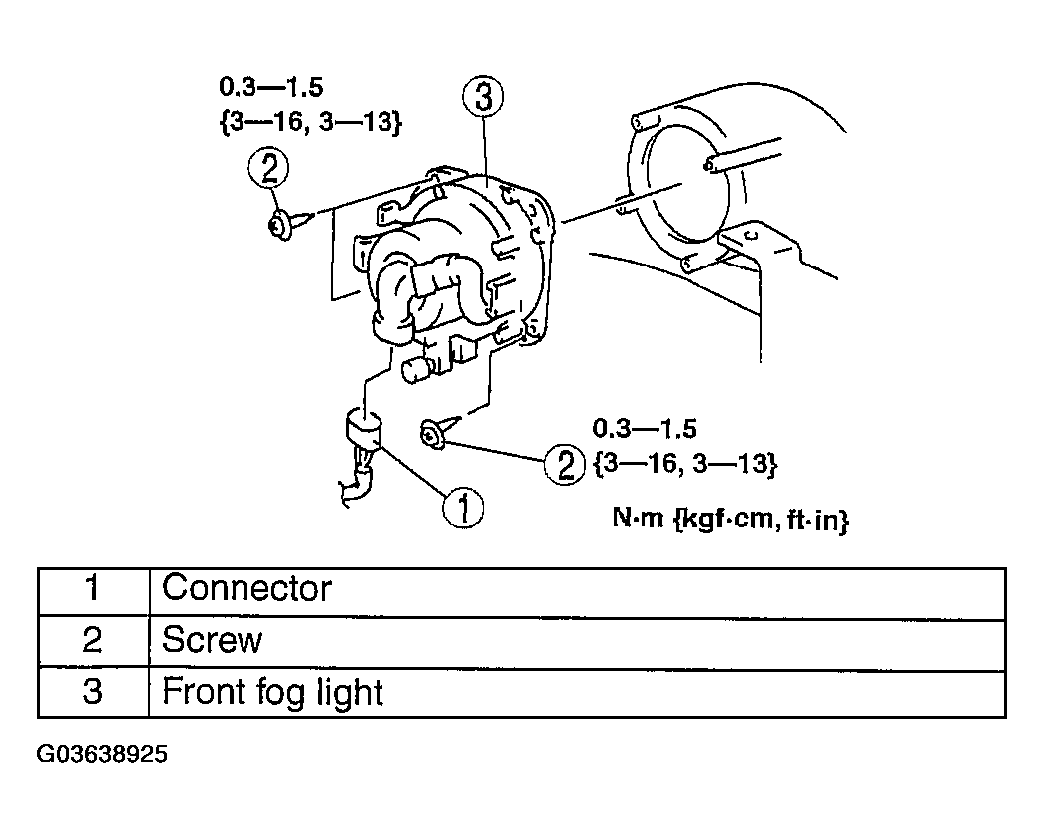

Fig 1: Removing Front Fog Light - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the front fog light. (See FRONT FOG LIGHT ADJUSTMENT [EXCEPT BP WITH TC] .) (See FRONT FOG LIGHT ADJUSTMENT [BP WITH TC] .)
