Upper Module Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver into the hole stamped mark.
  2. To remove upper module, lift it by pushing down the screwdriver's handle.

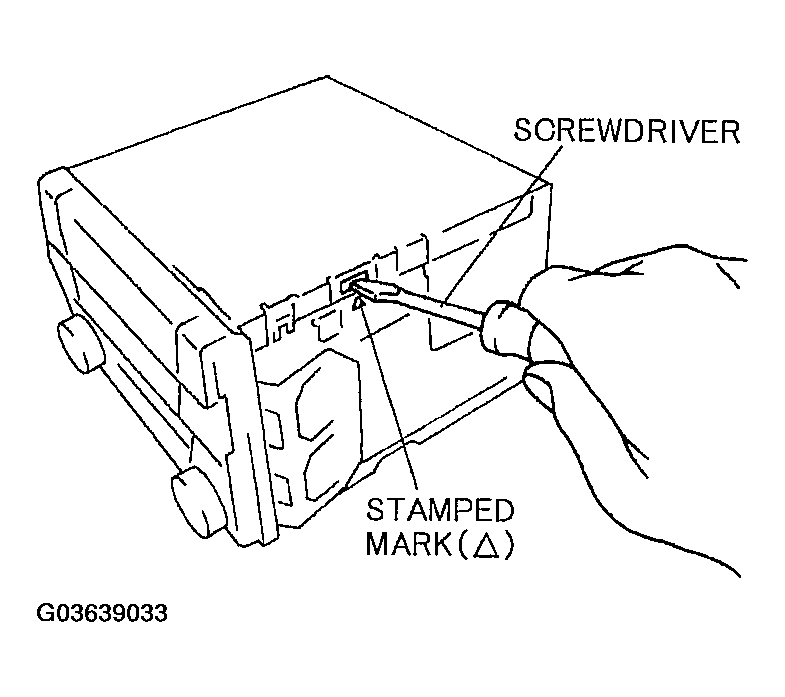

    Fig 1: Removing Upper Module
    G03639033Courtesy of MAZDA MOTORS CORP.
