Front Resistor Removal/Installation

Disconnect the negative battery cable.
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove in the order indicated in the figures.

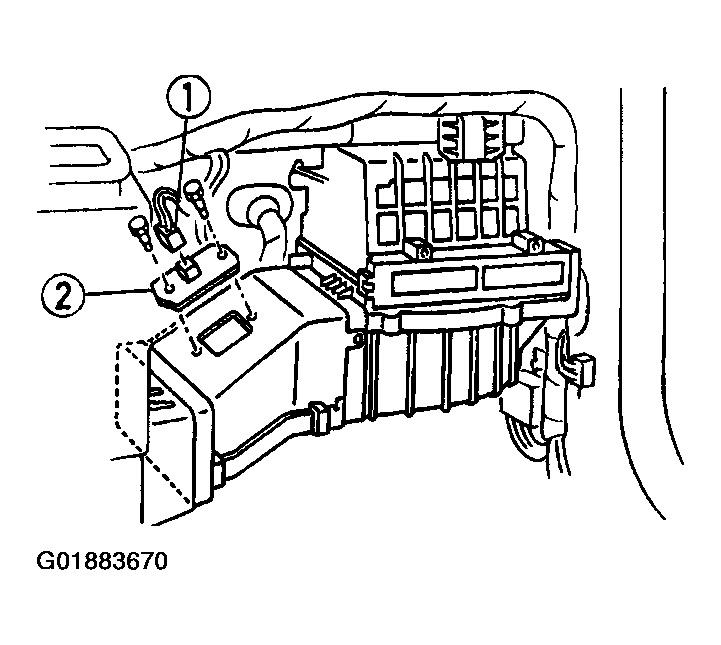

Fig 1: Removing Front Resistor
Courtesy of MAZDA MOTORS CORP.

Fig 2: Front Resistor Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
