Rear Climate Control Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the figure below.

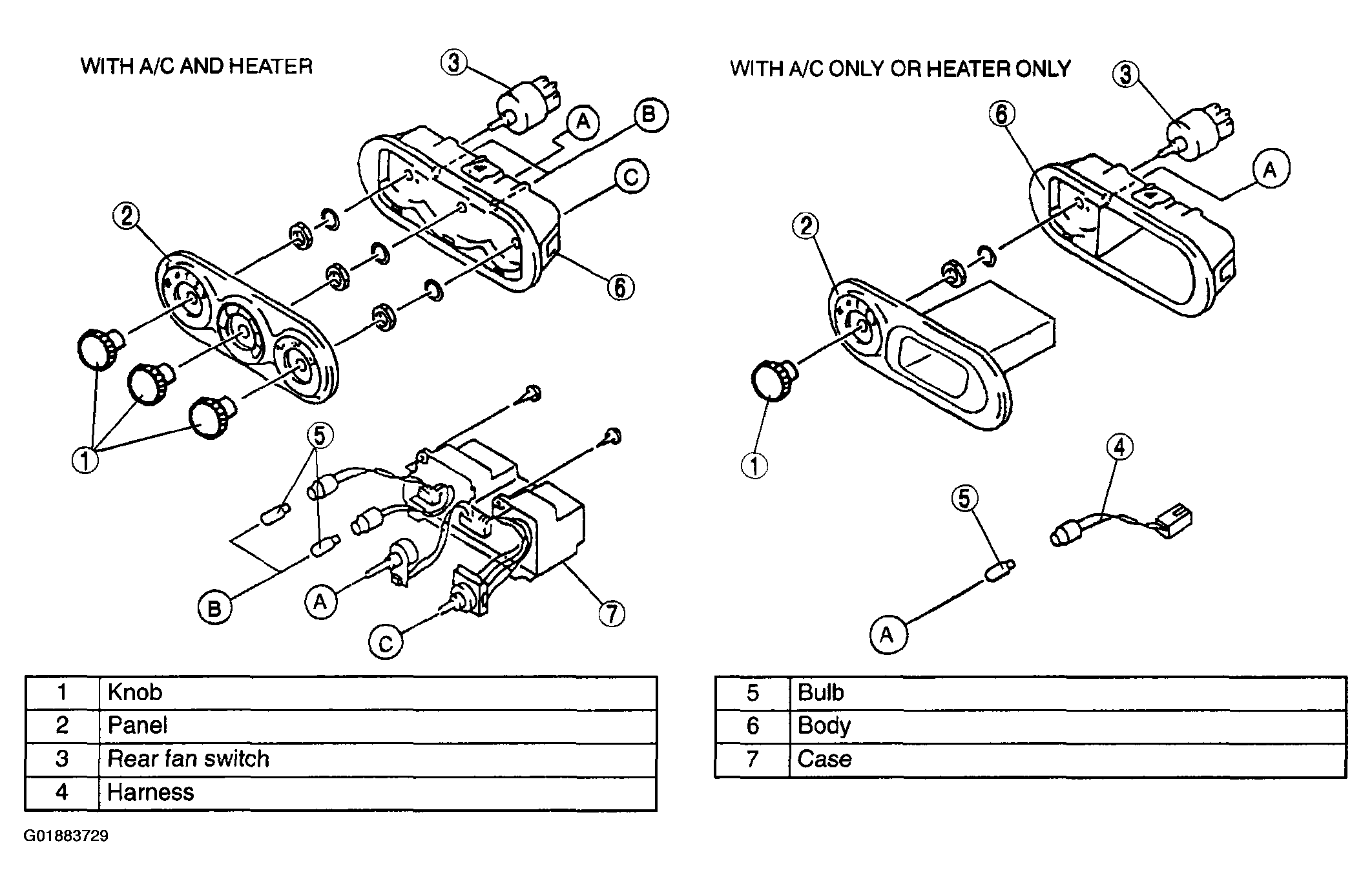

    Fig 1: Exploded View Of Rear Climate Control Unit
    G01883729Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
