THERMOSENSOR Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figures.

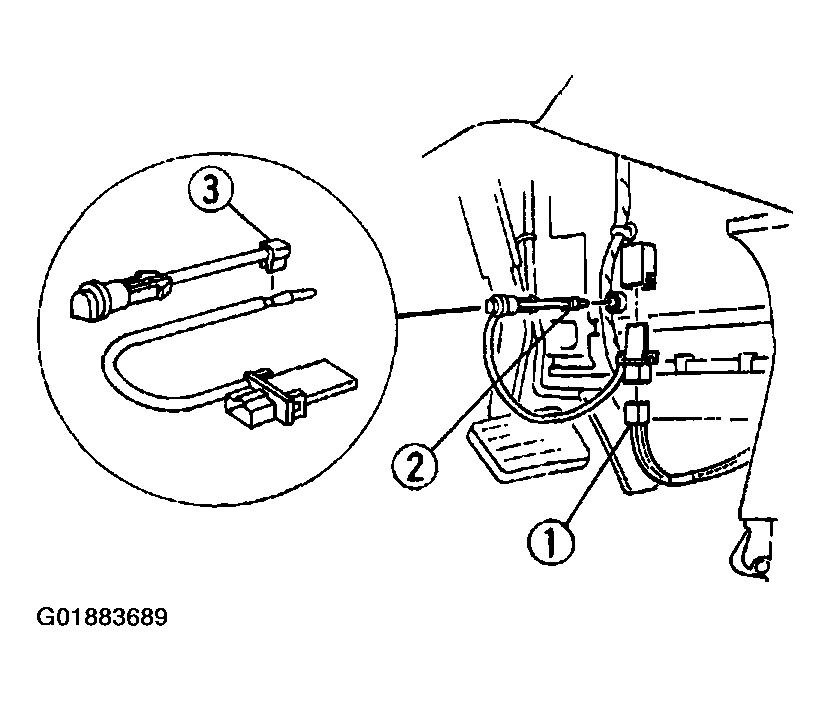

    Fig 1: Removing Thermosensor
    G01883689Courtesy of MAZDA MOTORS CORP.
    Fig 2: Thermosensor Removal Sequence
    G01883688Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
