Automatic Transaxle Control System Wiring Diagram

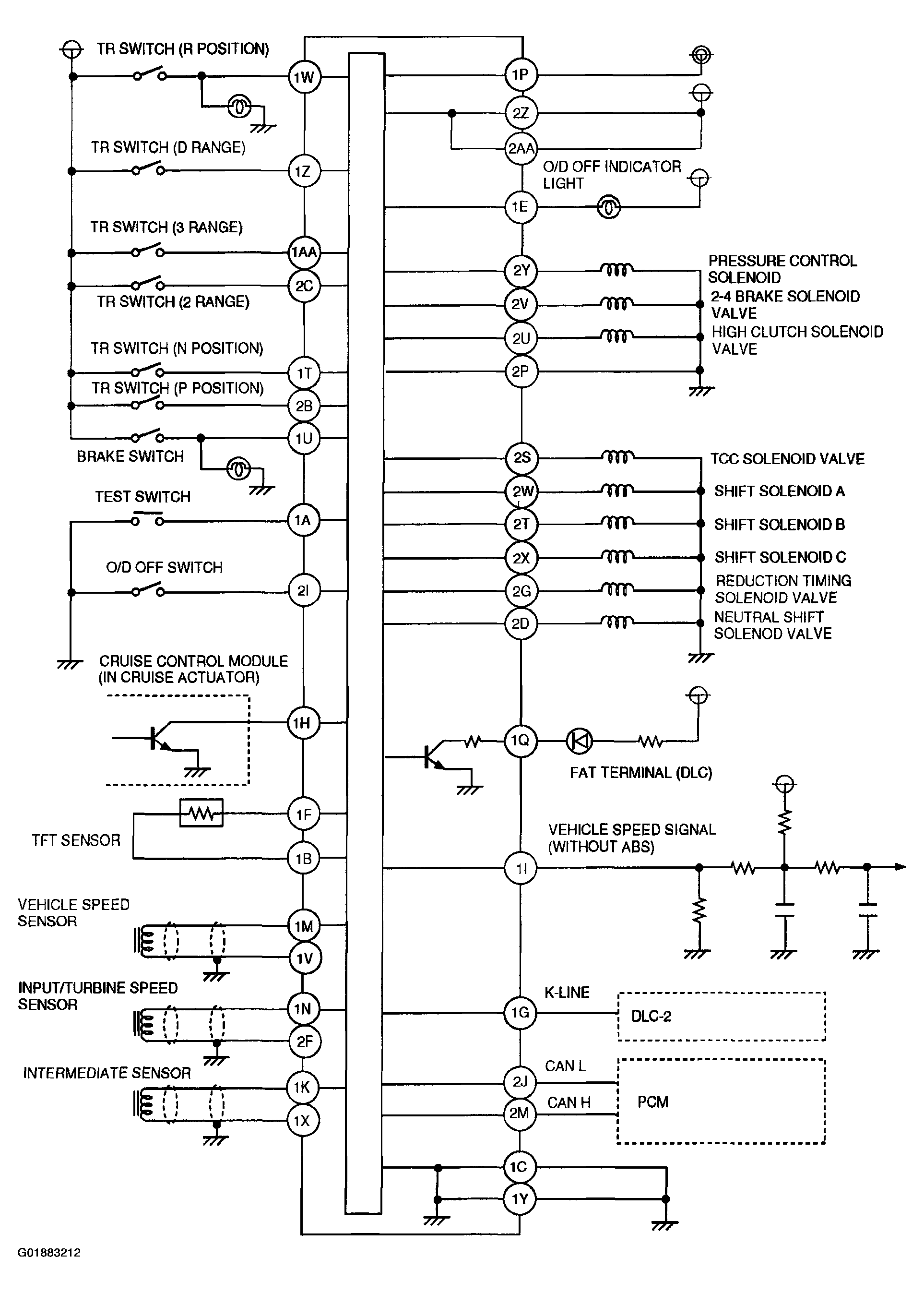

Fig 1: Automatic Transaxle Control System Wiring Diagram
G01883212Courtesy of MAZDA MOTORS CORP.
