DTC P0791: Intermediate Sensor Circuit Malfunction (Open/Short): Notes

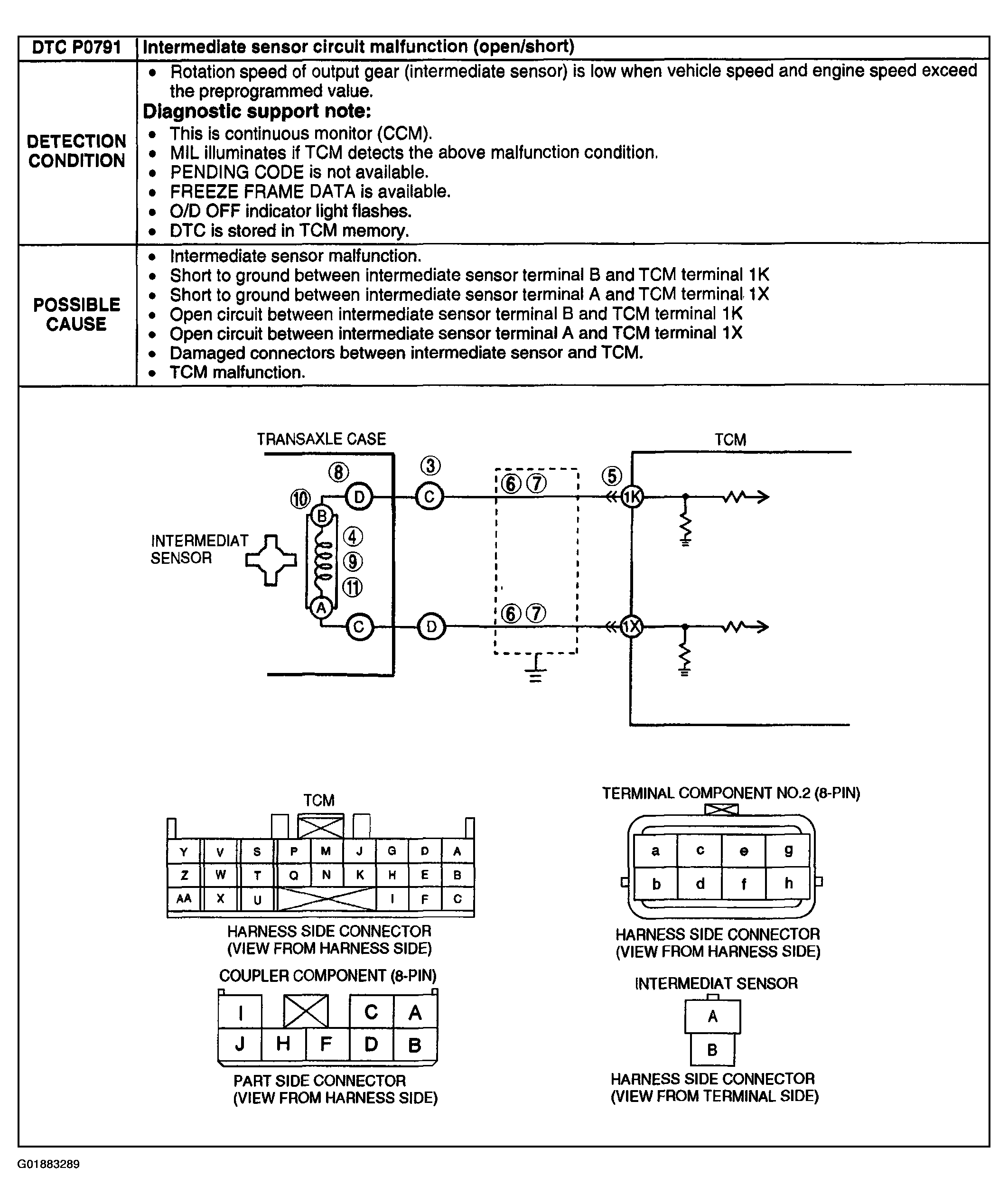

Fig 1: DTC P0791 - Detection Conditions & Possible Causes
G01883289Courtesy of MAZDA MOTORS CORP.
