Console Disassembly/Assembly

  1. Disassemble in the order indicated in the figure below.

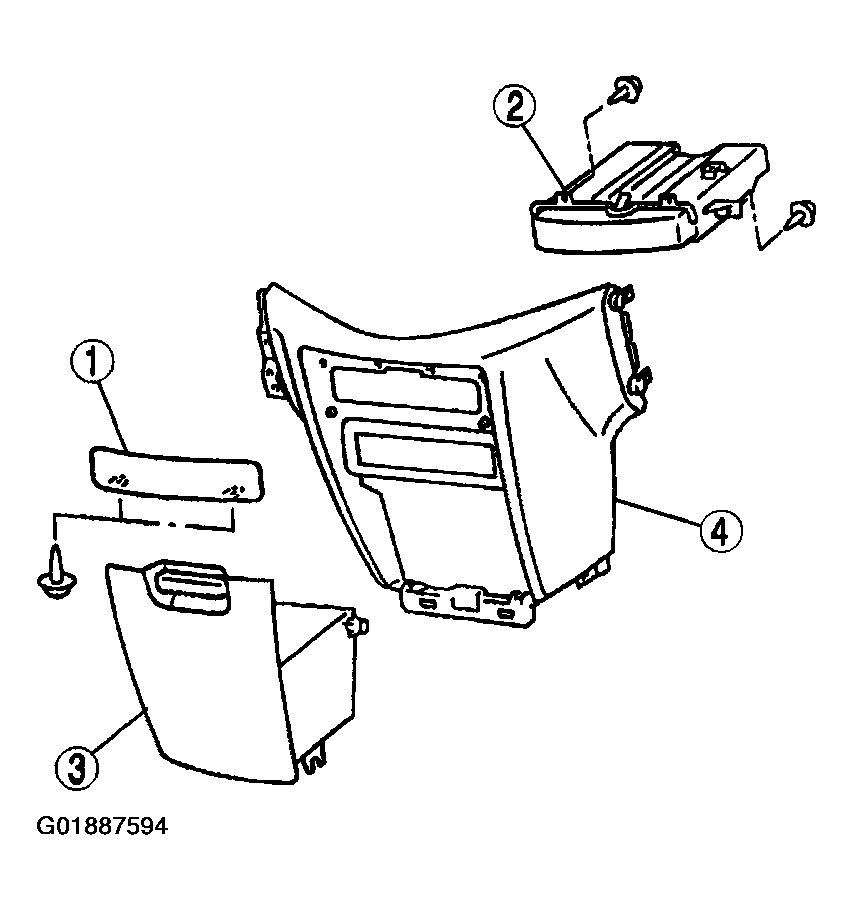

    Fig 1: Disassembling Console Components
    G01887594Courtesy of MAZDA MOTORS CORP.
    Fig 2: Console Component Legend
    G01887593Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
