Front Toe Adjustment

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Centering Steering Wheel

Courtesy of MAZDA MOTORS CORP.

Start the engine arid center the steering wheel.
Turn the engine off, and lock the steering wheel in position.
Check the toe settings. Follow the equipment manufacturer's instructions.

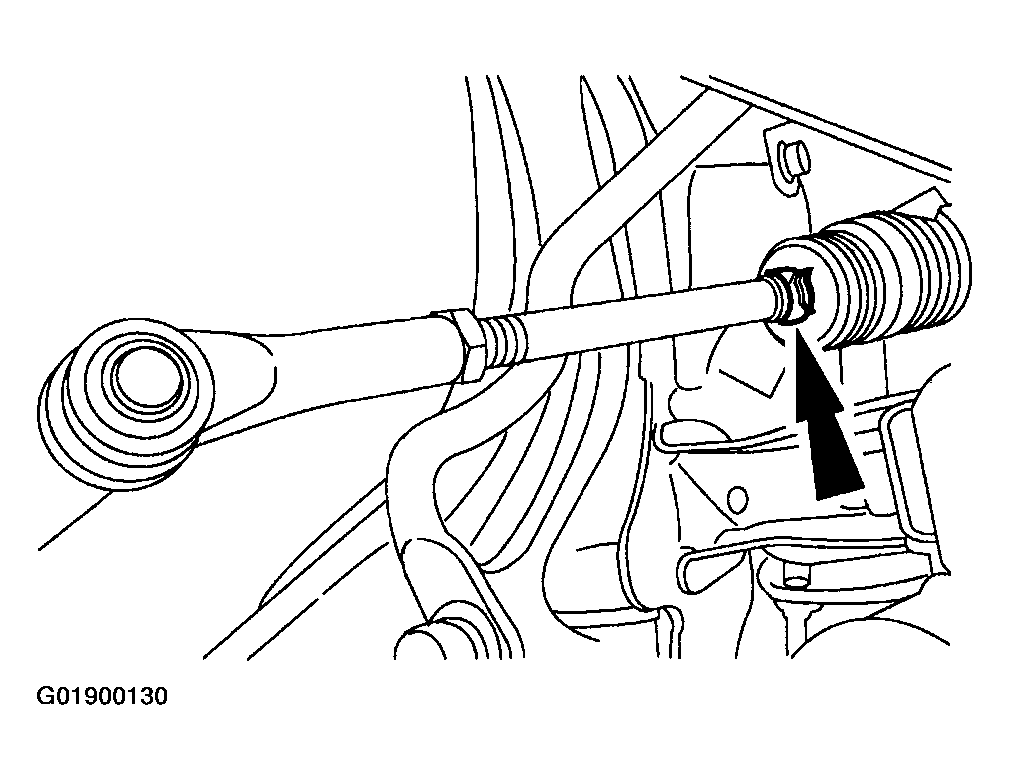

Fig 2: Removing Clamps
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.
Remove the clamps.

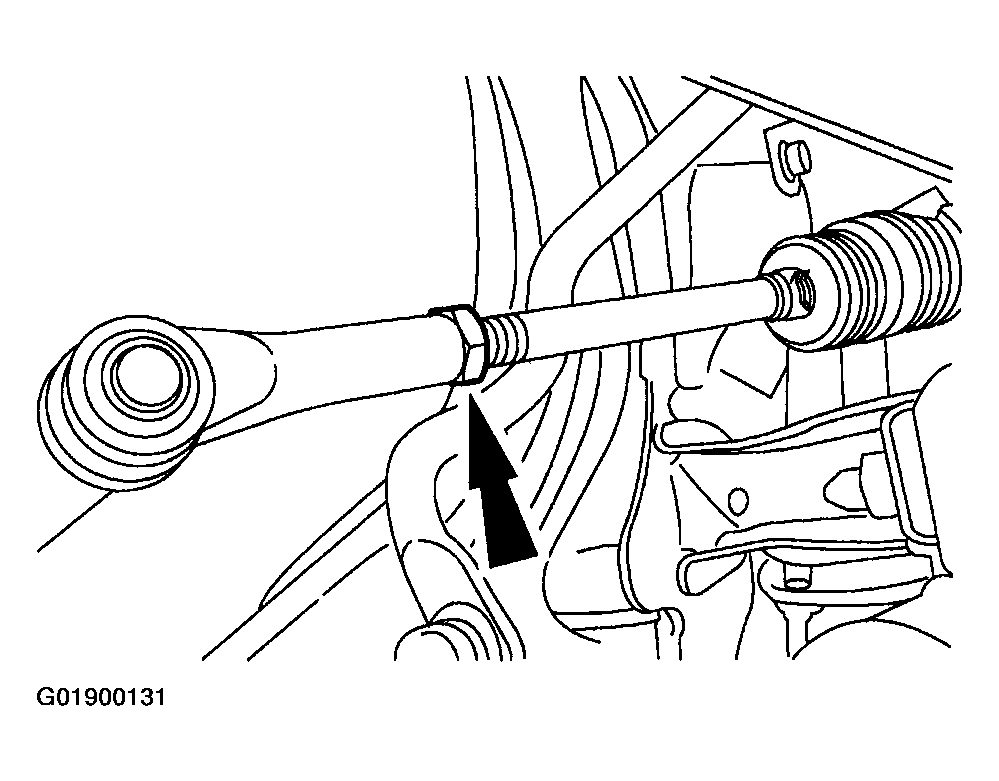

Fig 3: Loosening Nuts
Courtesy of MAZDA MOTORS CORP.
Loosen the nuts.
1. Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

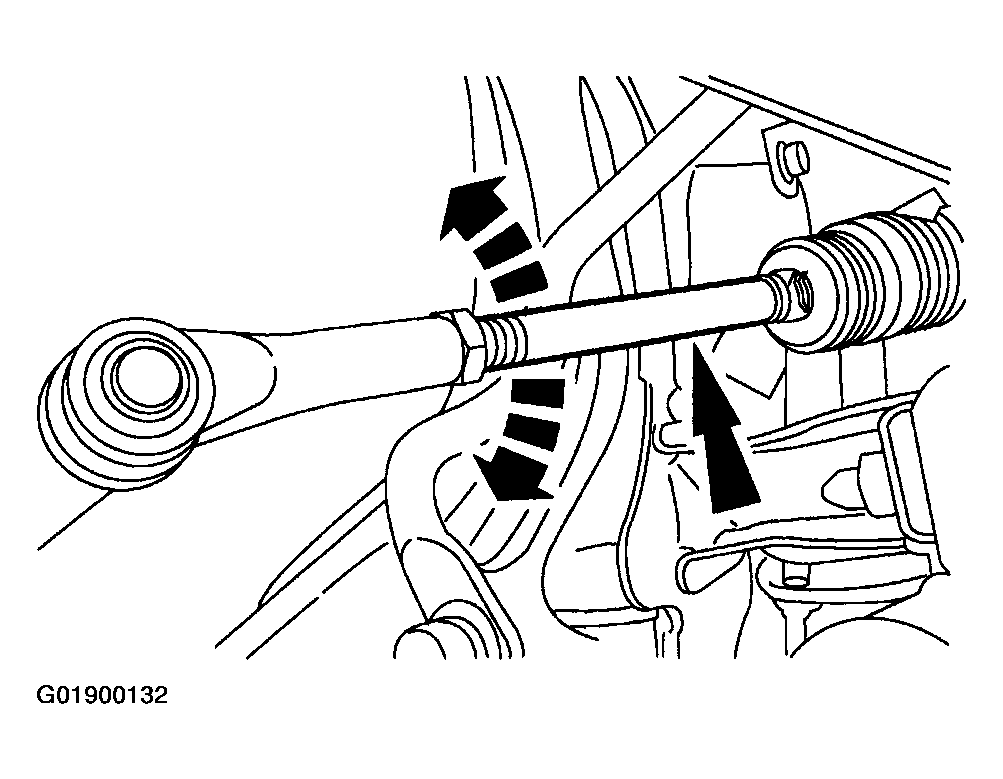

  Fig 4: Rotating Front Wheel Spindle Tie Rods
  Courtesy of MAZDA MOTORS CORP.
2. Rotate the front wheel spindle tie rods.

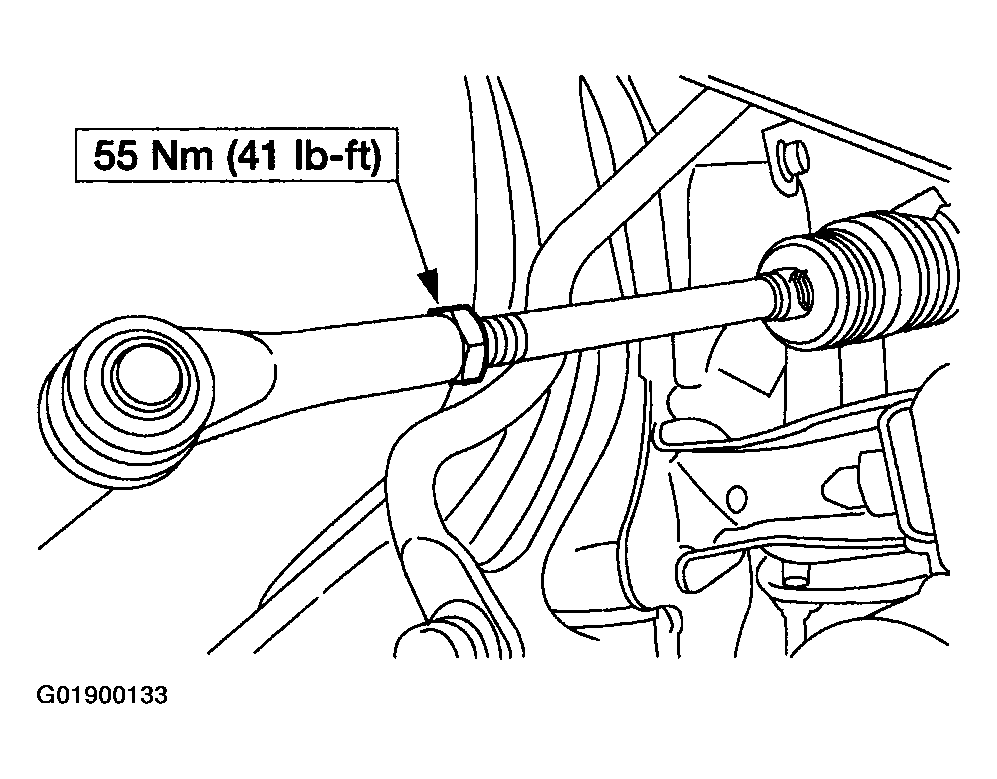

  Fig 5: Tightening Nuts
  Courtesy of MAZDA MOTORS CORP.
3. Tighten the nuts.

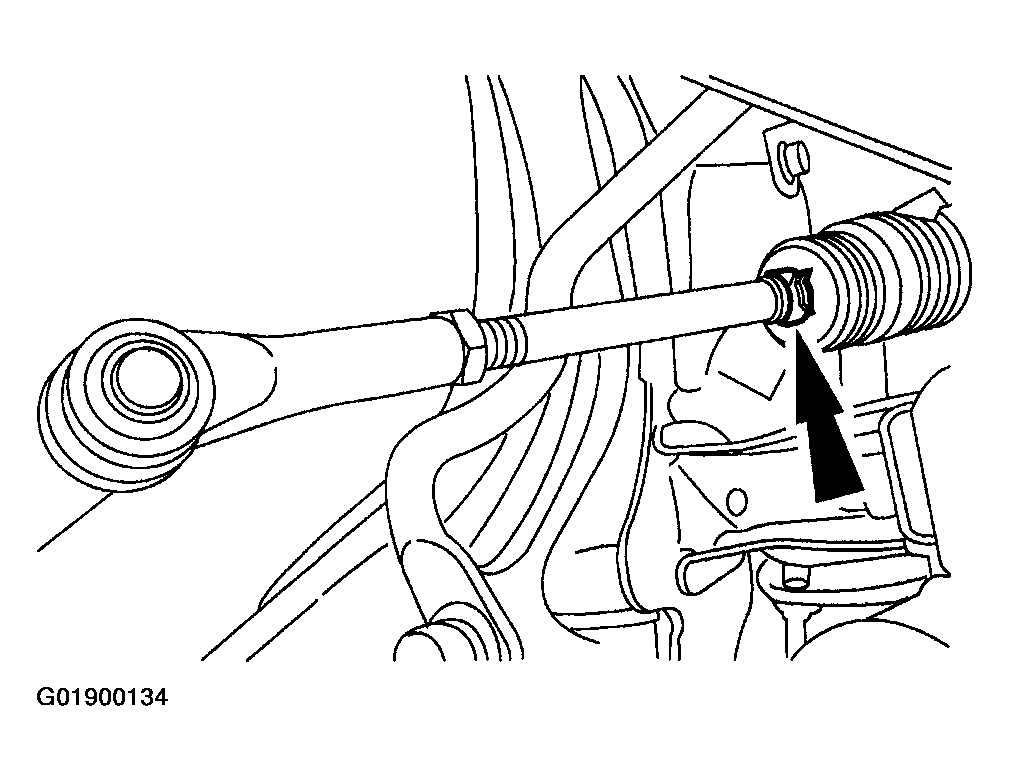

  Fig 6: Installing Clamp(s)
  Courtesy of MAZDA MOTORS CORP.
4. Install the clamp(s).
5. Recheck the toe settings. Follow the equipment manufacturer's instructions.
