Wheel Alignment Angles: Camber

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Camber is the inward or outward tilting of the wheels at the top.

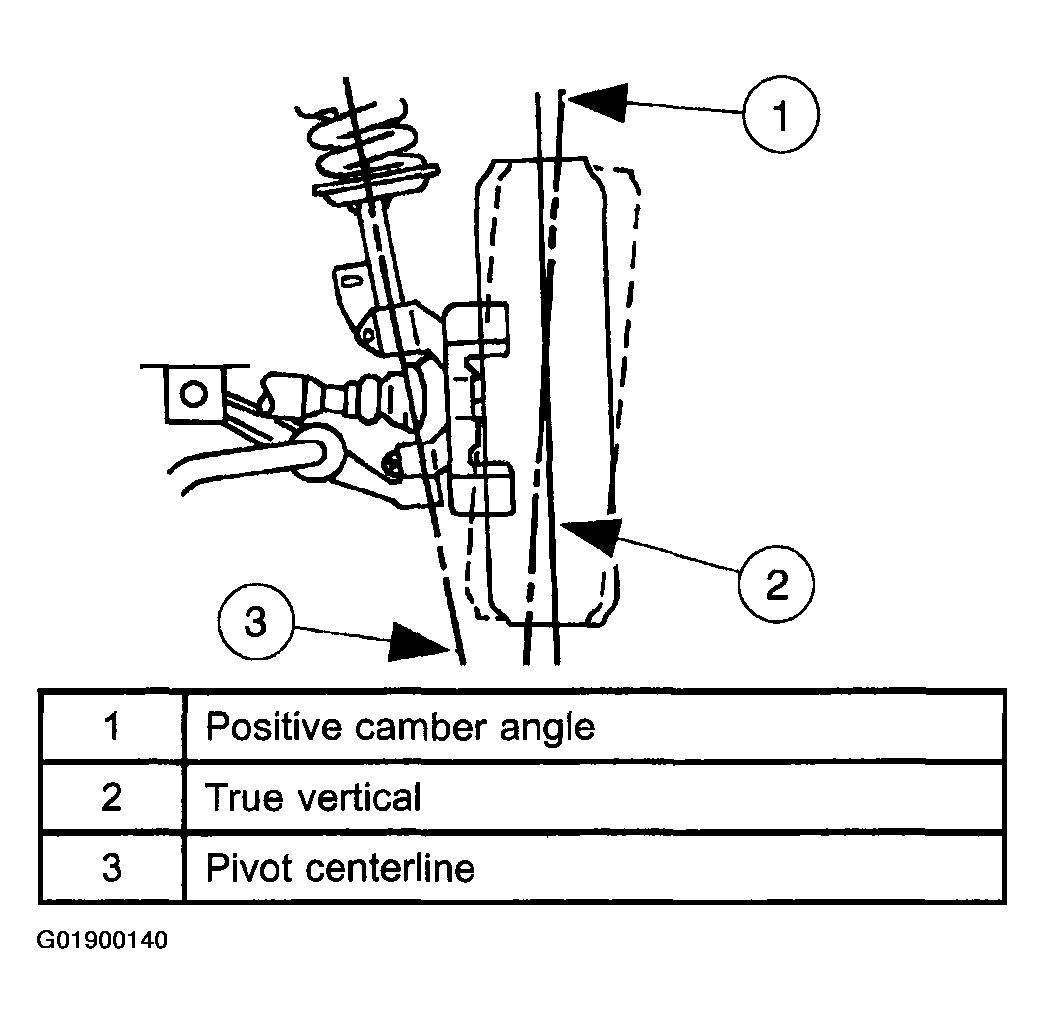

Fig 1: Identifying Camber Angle
G01900140Courtesy of MAZDA MOTORS CORP.

When the wheel tilts out at the top, then the camber is positive (+).

When the wheel tilts in at the top, then the camber is negative (-).
