Cruise Control Main Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the fuse block cover.
  3. Remove the panel light control switch. (See PANEL LIGHT CONTROL SWITCH INSPECTION .)
  4. Push the tabs of the cruise control main switch and pull the switch out from inside of the dashboard.
  5. Disconnect the cruise control main switch connector to remove the cruise control main switch.

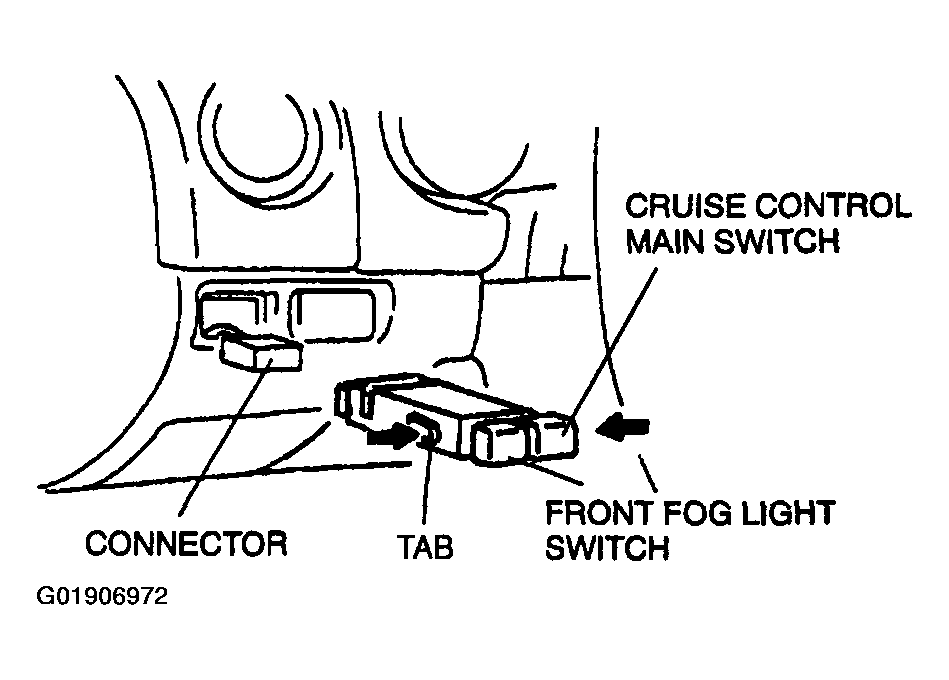

    Fig 1: Removing/Installing Cruise Control Main Switch
    G01906972Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
