Cruise Control Switch Inspection

  1. Remove the combination switch. (See COMBINATION SWITCH REMOVAL/INSTALLATION .)
  2. Measure the resistance between the cruise control switch terminals using an ohmmeter.
    • If not as specified, replace the wiper lever.

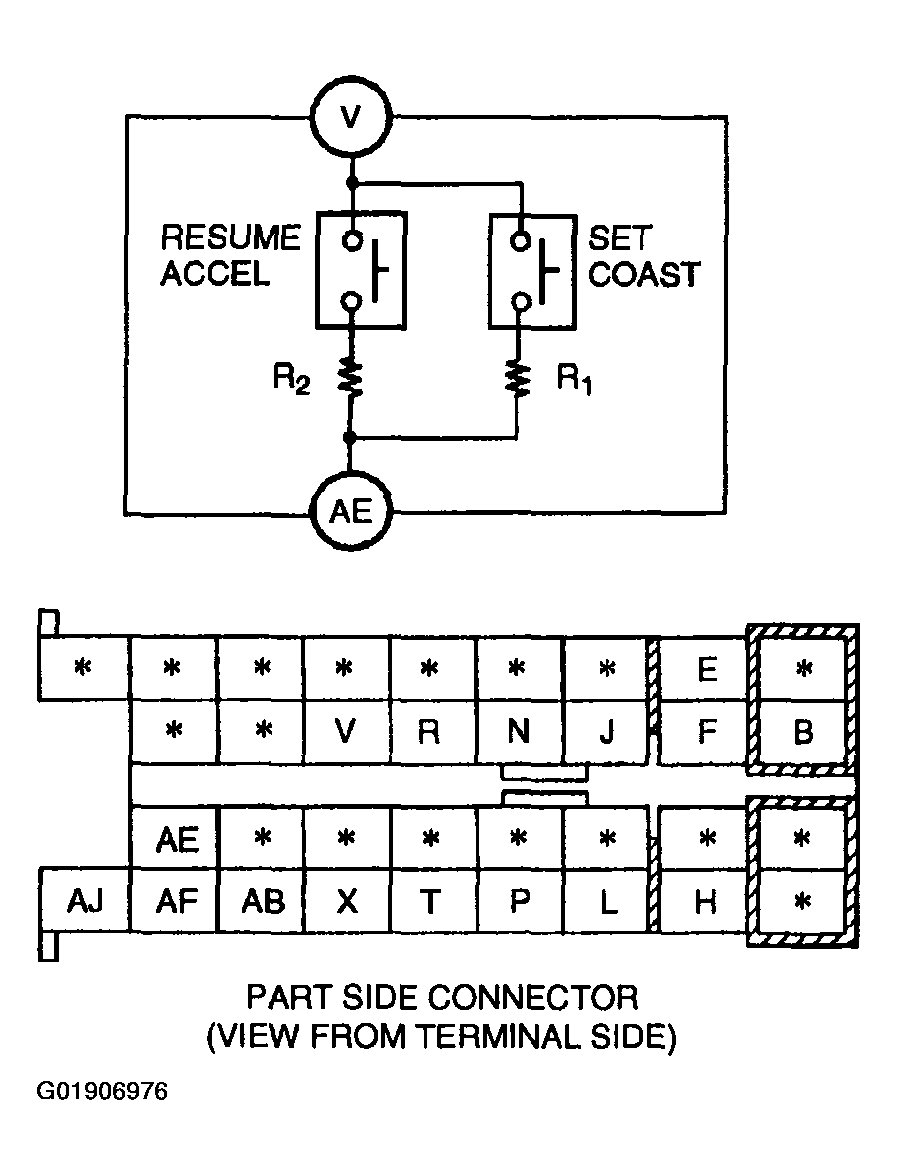

    Fig 1: Inspecting Cruise Control Switch Terminal Identification & Connector Views
    G01906976Courtesy of MAZDA MOTORS CORP.
    Fig 2: Cruise Control Switch Resistance Specifications
    G01906975Courtesy of MAZDA MOTORS CORP.
