Ignition Switch Inspection

Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Disconnect the ignition switch connector.
Inspect for continuity between the ignition switch terminals using an ohmmeter.
- If not as specified, replace the ignition switch.

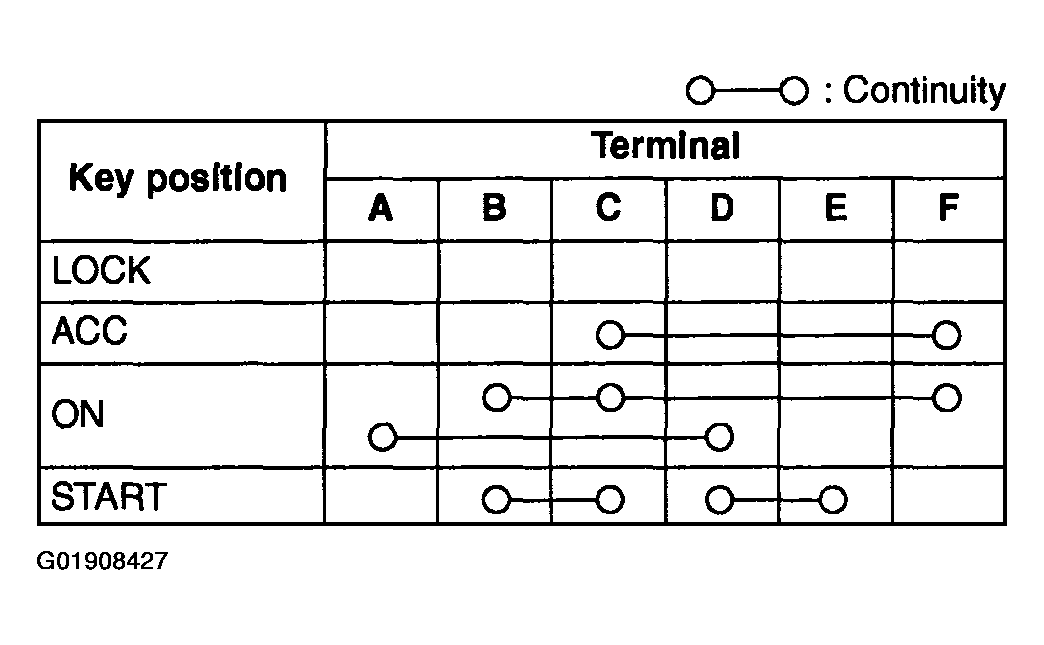

Fig 1: Ignition Switch Inspection Table
Courtesy of MAZDA MOTORS CORP.

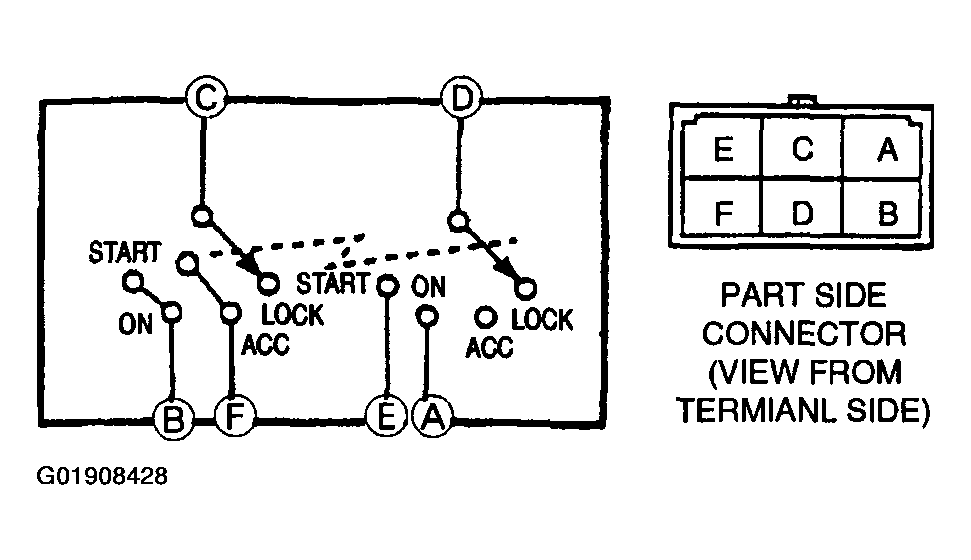

Fig 2: Inspecting Ignition Switch
Courtesy of MAZDA MOTORS CORP.
