Relay Location

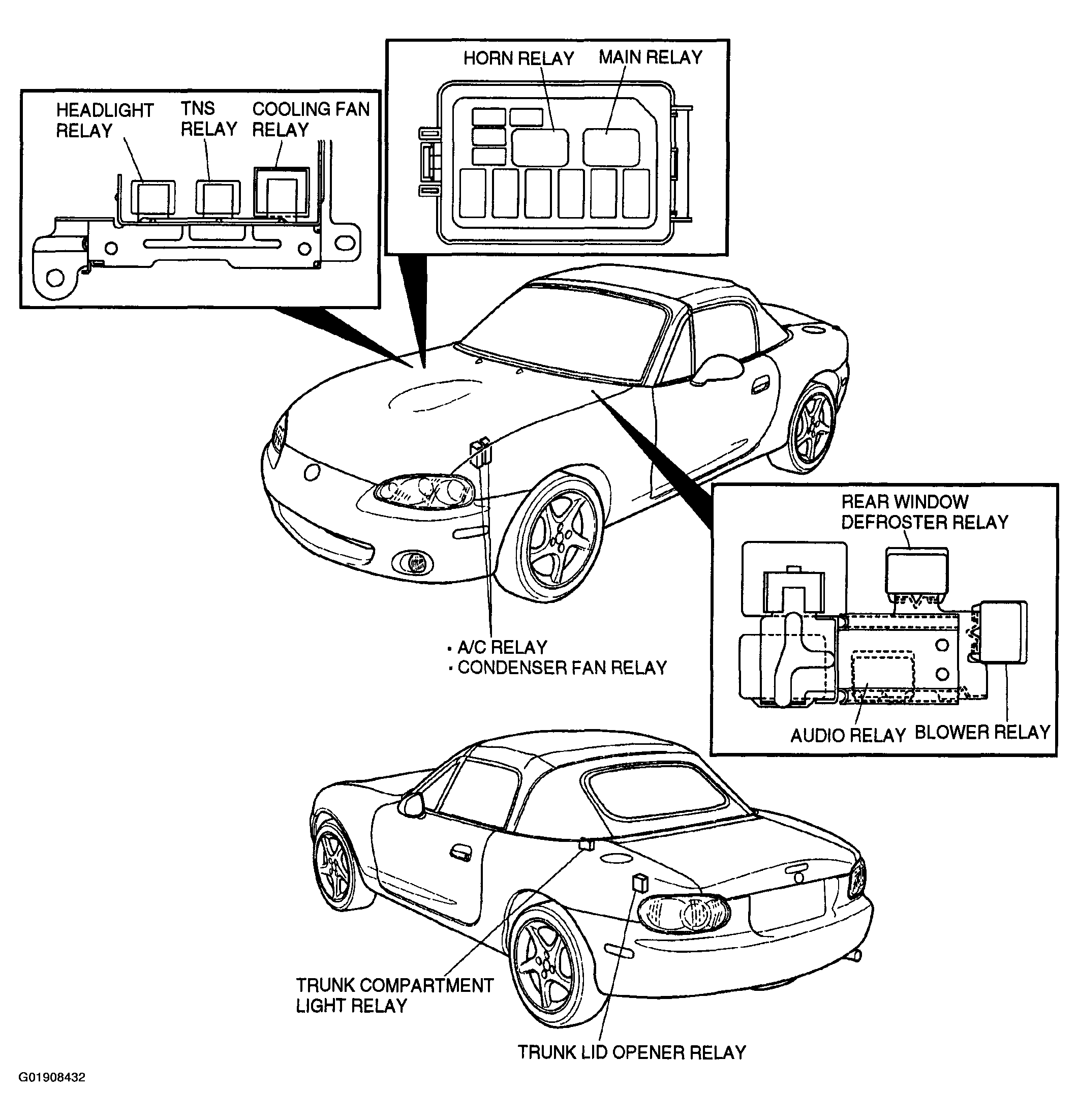

Fig 1: Identifying Power System Relays
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
