Power Window Motor Inspection

Remove the power window motor. (See POWER WINDOW REGULATOR DISASSEMBLY .)
Apply battery positive voltage to the power window motor terminals and inspect the operation of the power window motor.
- If not as specified, replace the power window motor.

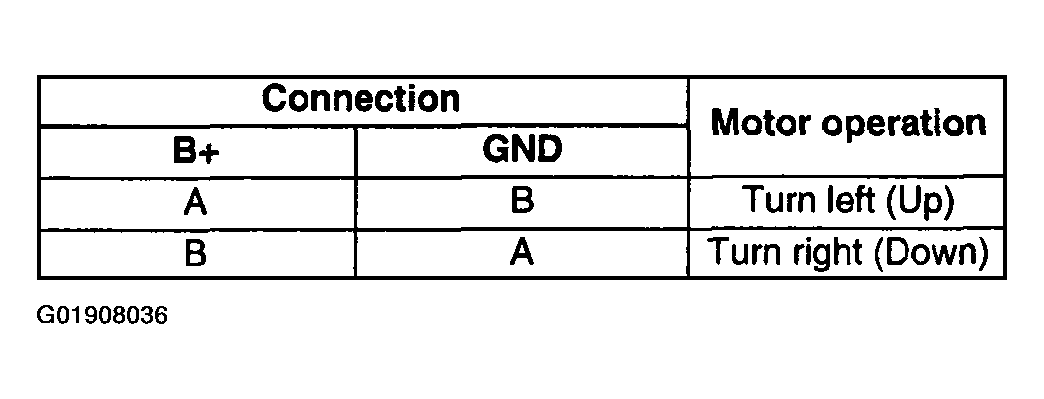

  Fig 1: Testing Window Motor (1 Of 2)
  Courtesy of MAZDA MOTORS CORP.

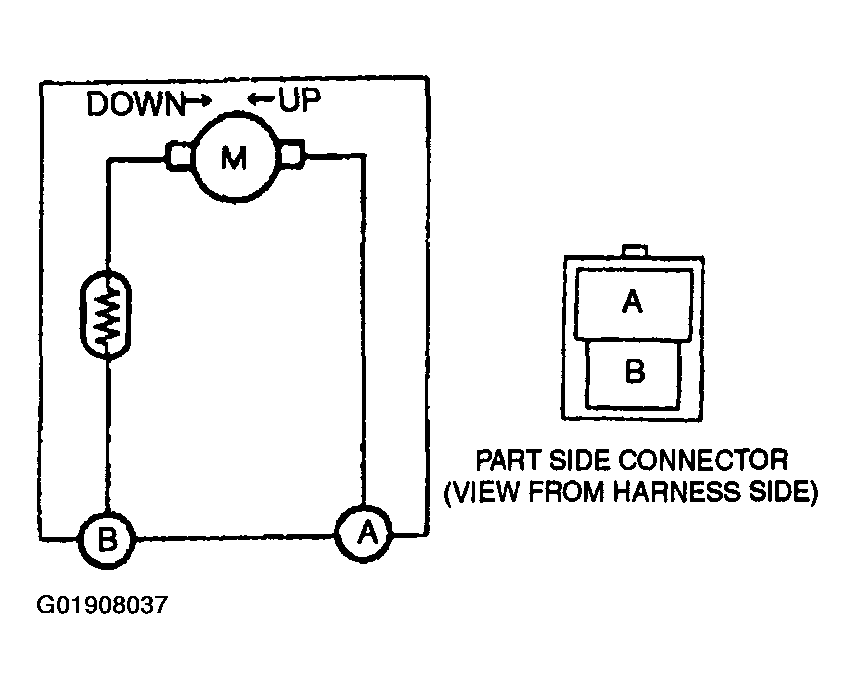

  Fig 2: Testing Window Motor (2 Of 2)
  Courtesy of MAZDA MOTORS CORP.
