Power Window Regulator Removal/Installation

  1. Remove the front glass guide. (See DOOR GLASS AND GUIDE REMOVAL/INSTALLATION  .)
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the figure.

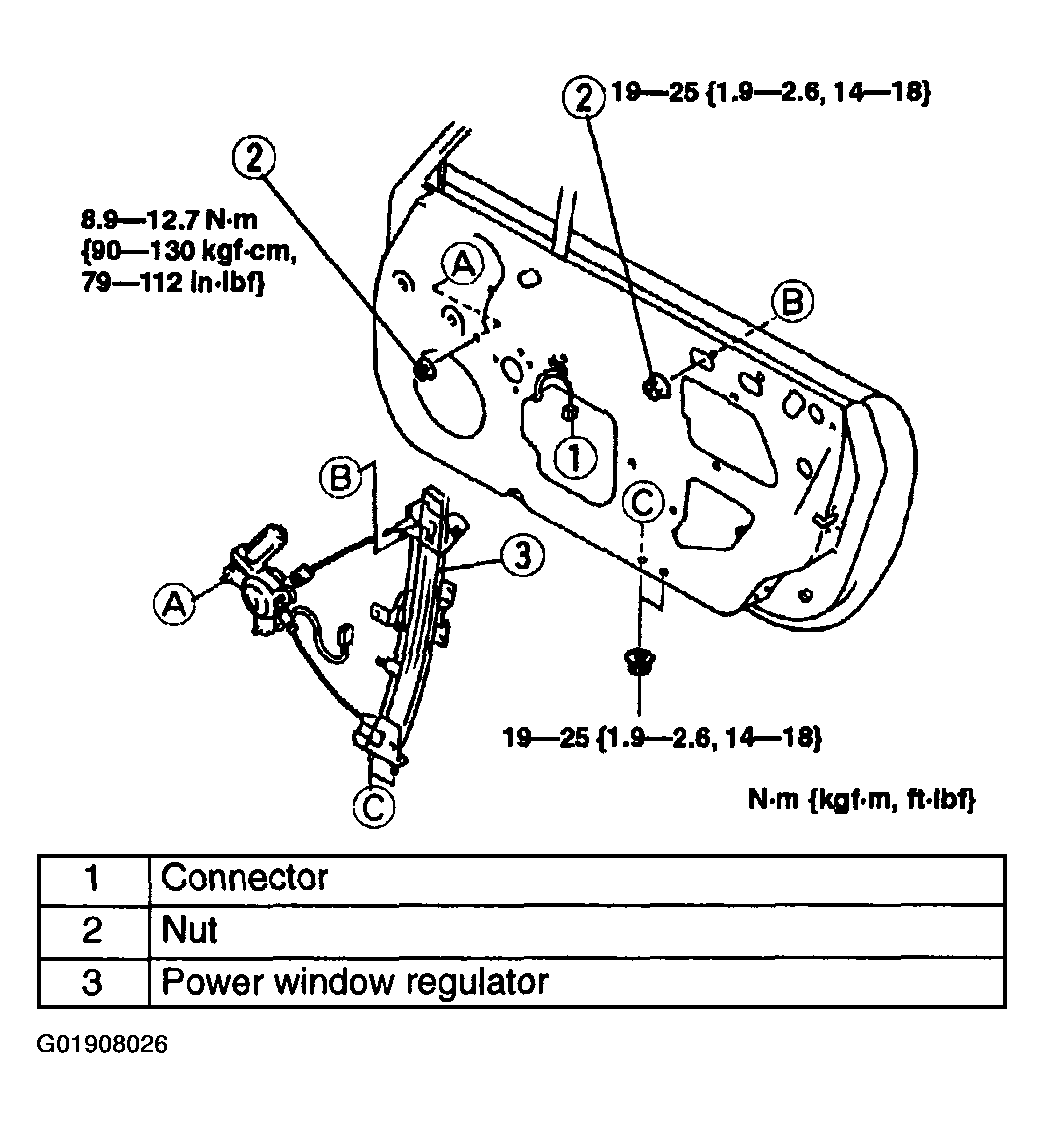

    Fig 1: Removing & Installing Power Window Regulator
    G01908026Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Adjust the door glass. (See DOOR GLASS ADJUSTMENT  .)
