Buckle Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the buckle switch connector.
  3. Remove the bolt, then remove the buckle.

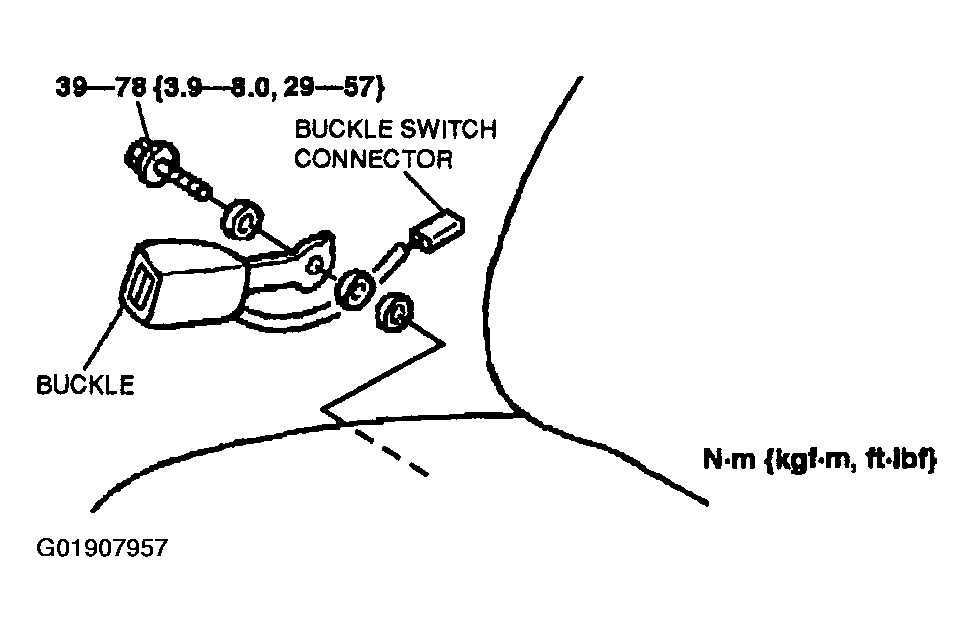

    Fig 1: Removing Bolt And Buckle
    G01907957Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
