Power Outside Mirror Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the door speaker. (See DOOR SPEAKER REMOVAL/INSTALLATION .)
  3. Disconnect the power outside mirror connector.
  4. Turn the power outside mirror forward.
  5. Remove the screws.

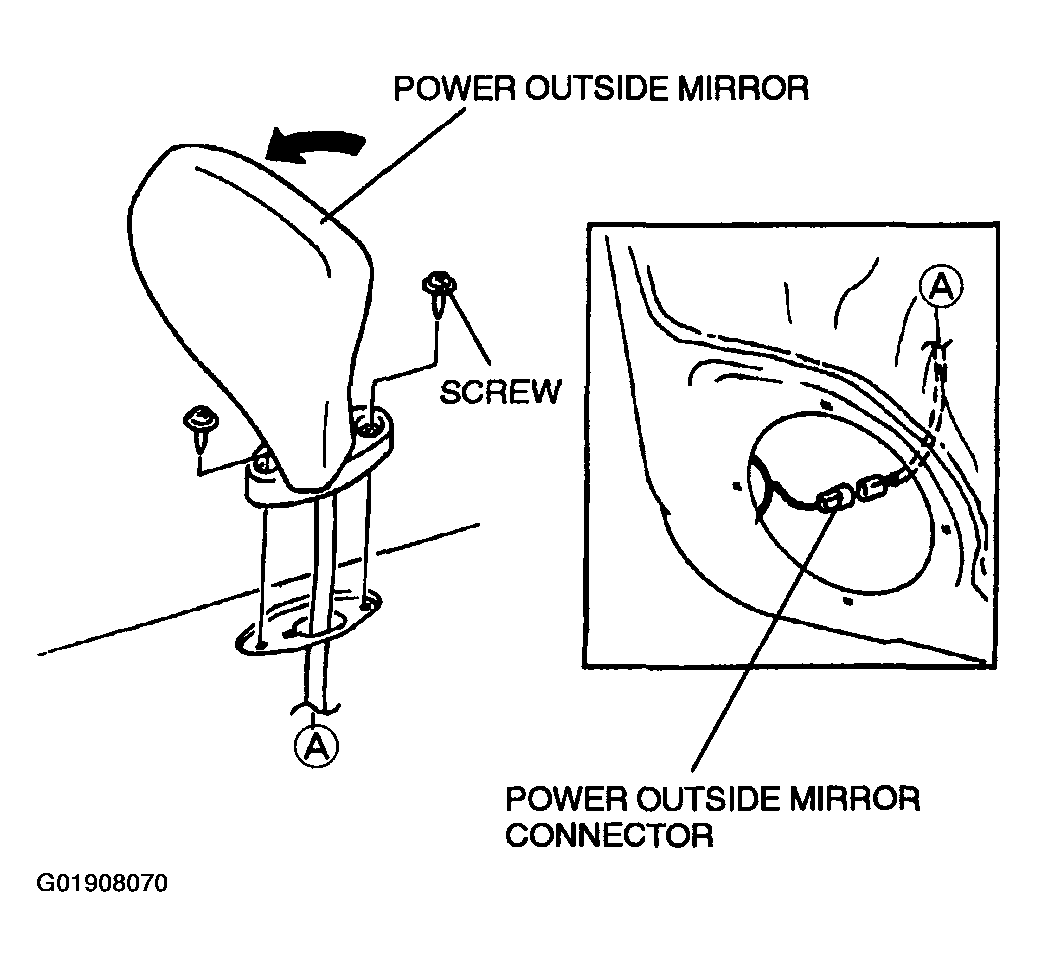

    Fig 1: Removing Screws
    G01908070Courtesy of MAZDA MOTORS CORP.
  6. Remove the power outside mirror.
  7. Install in the reverse order of removal.
