Antilock Brake System Location Index

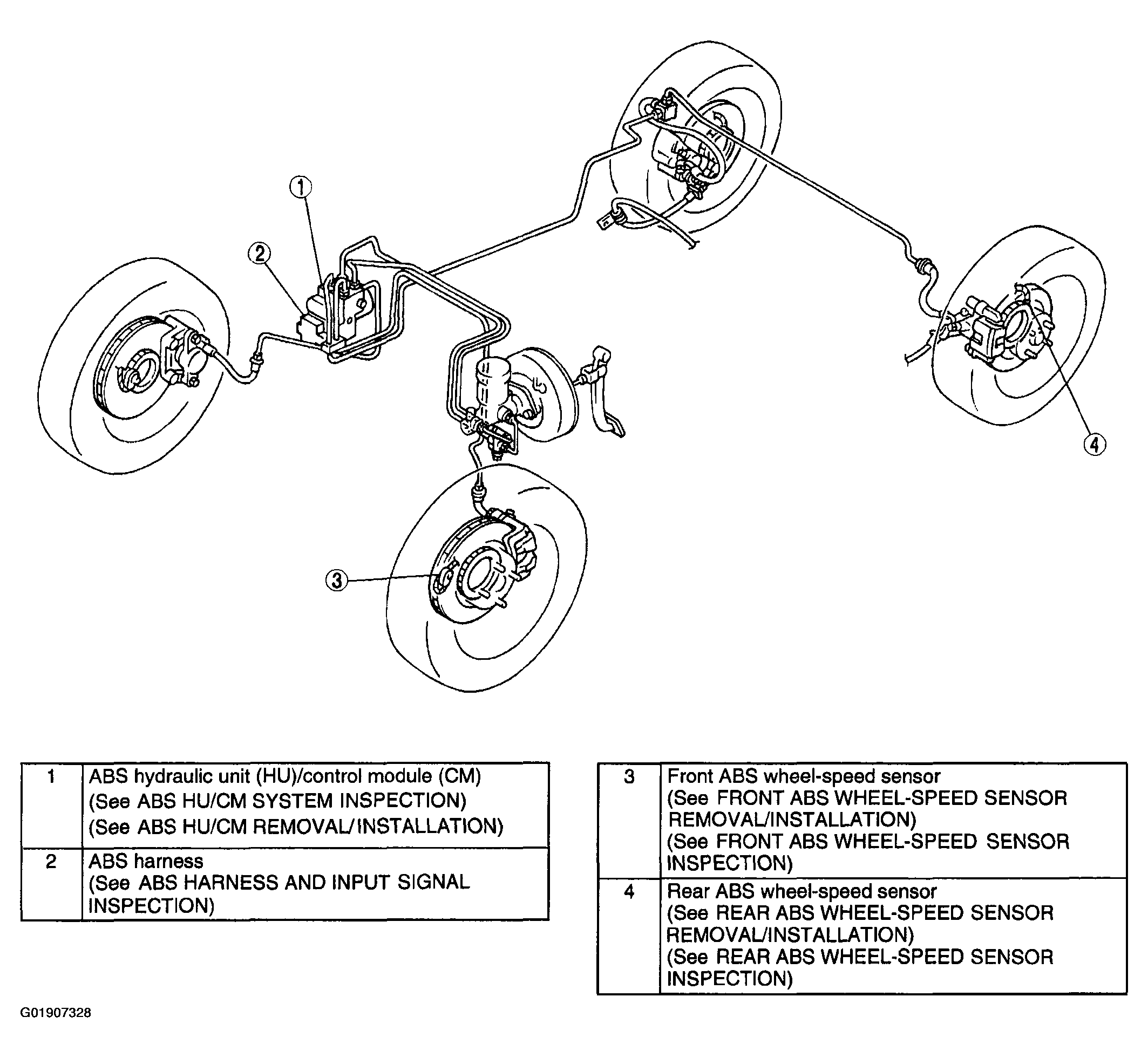

Fig 1: Identifying Antilock Brake System Location Index
G01907328Courtesy of MAZDA MOTORS CORP.
