Total Toe-In Adjustment

WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Adjust the toe-in before adjusting the camber.

Loosen the front and/or rear cam nuts.
Turn the front and/or rear adjusting cam bolts equally to provide the correct toe-in.

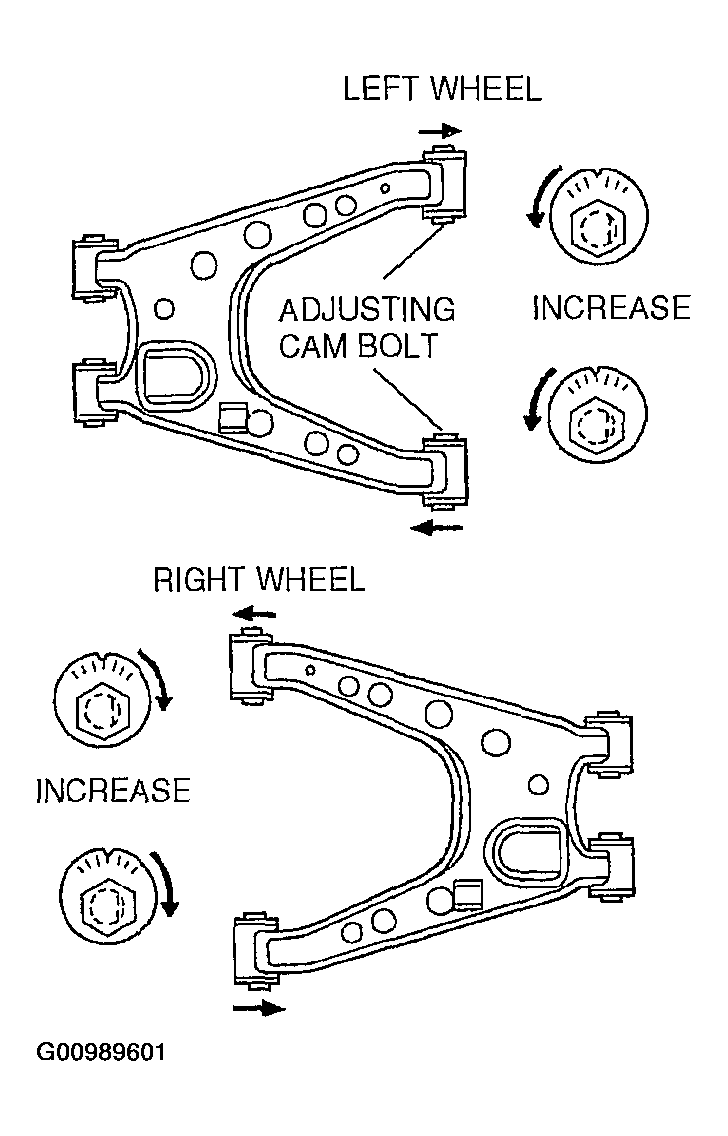

Fig 1: Adjusting Toe-In (Rear )
Courtesy of MAZDA MOTORS CORP.

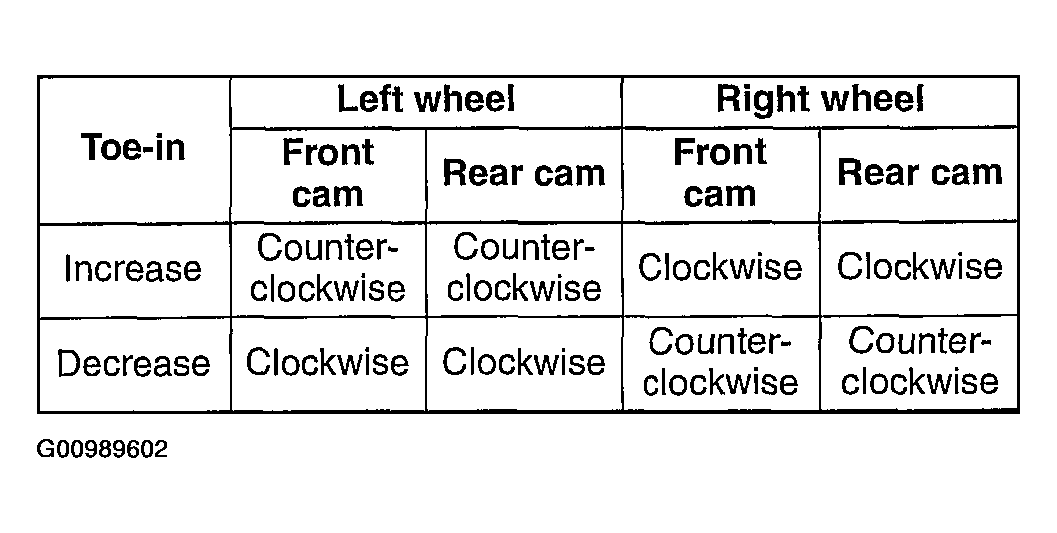

Fig 2: Identifying Toe-In Bolt Adjustments (Rear )
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Turning the front cam one graduation changes the toe-in about 2.3 mm {0.1 in} and the camber about 13' . Turning the rear cam one graduation changes the toe-in about 2.3 mm {0.1 in} and the camber about 8' .
Adjust the camber.
