System Specifications

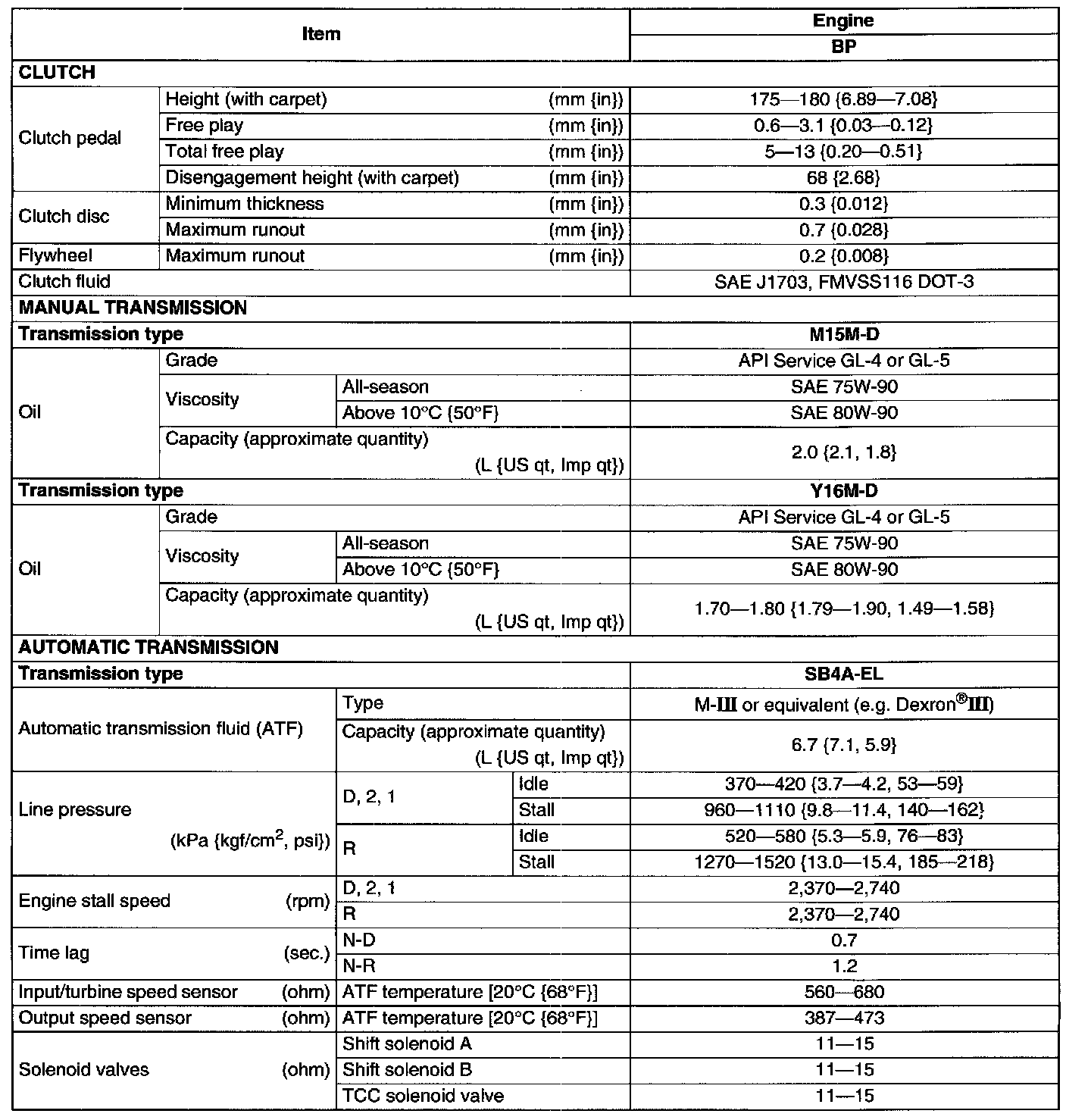

TRANSMISSION/TRANSAXLE TECHNICAL DATA

Drive Plate Mounting Bolts





Tightening torque 97 - 102 Nm (9.8 - 10.5 kgf-m, 71 - 75 ft. lbs.)
