Connector Installation Note

  1. Verify that the lock lever of the harness connector is completely pulled up.

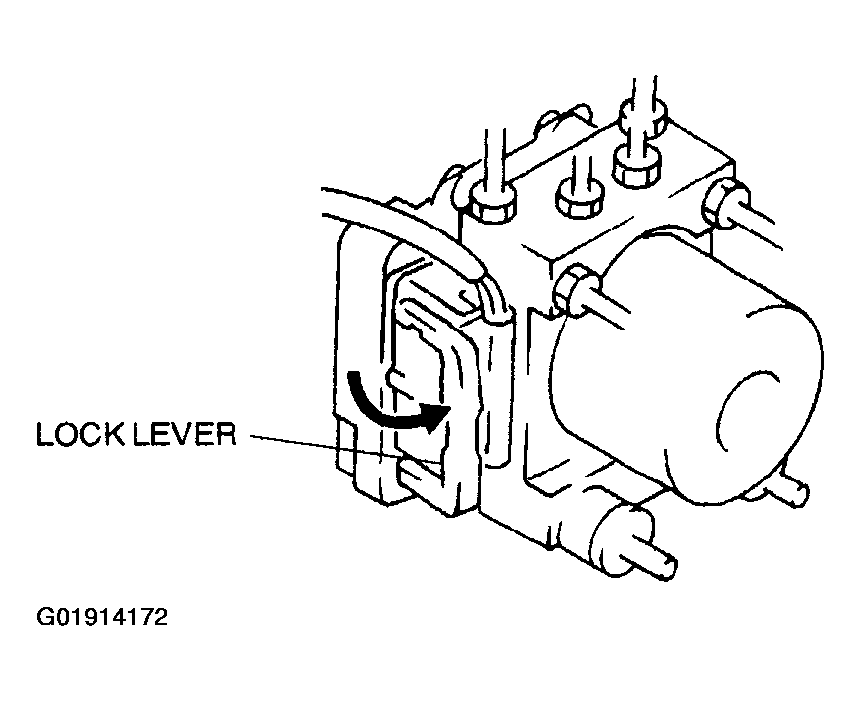

    Fig 1: Verifying Lock Lever Of Harness Connector Is Completely Pulled Up
    G01914172Courtesy of MAZDA MOTORS CORP.
