Abs Hydraulic Unit (HU)/Control Module (Cm) Removal/Installation: Notes

CAUTION:

Do not drop the ABS hydraulic unit (HU)/control module (CM). Replace it if it is subjected to an impact.

Remove the battery and battery tray.
Remove in the order indicated in the figure.

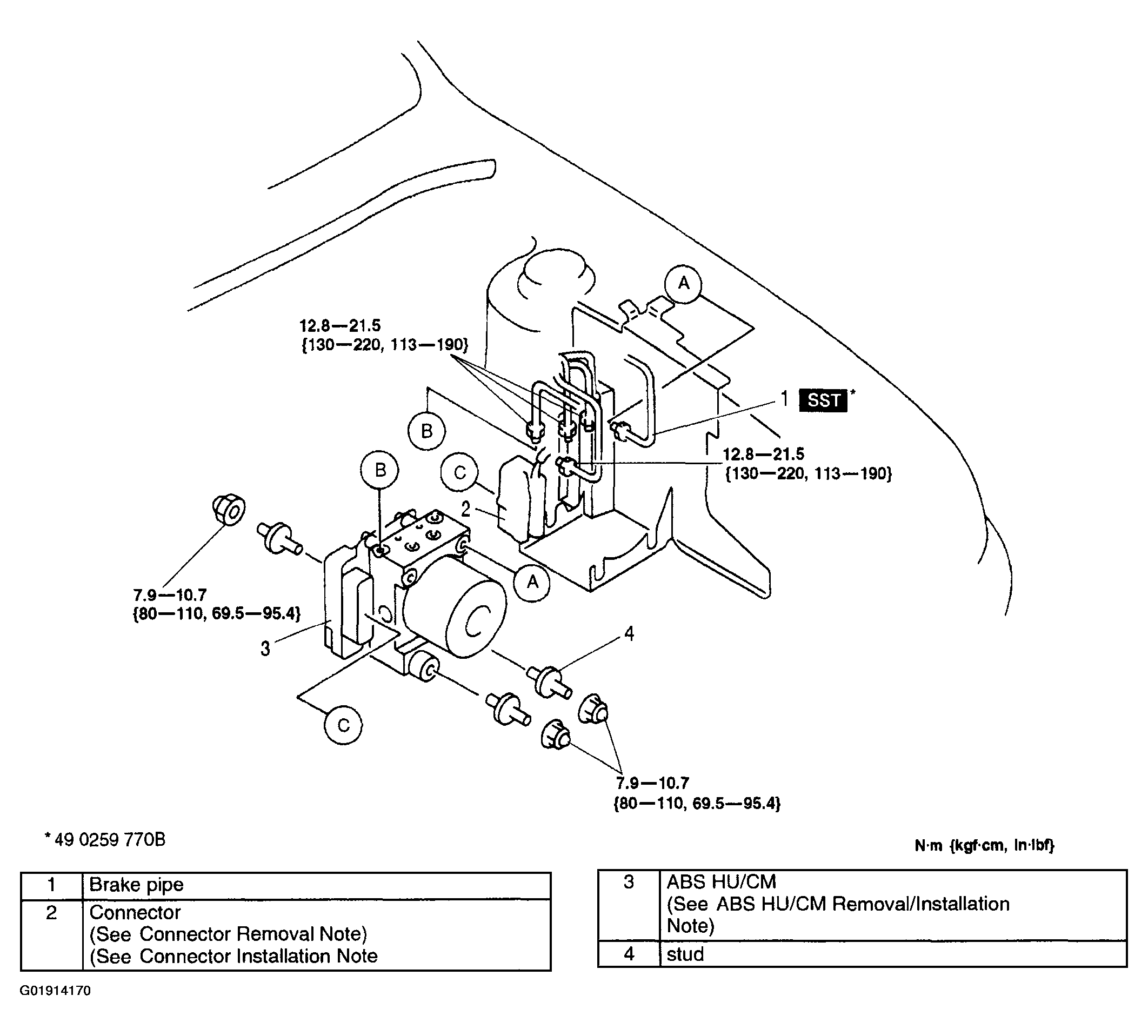

Fig 1: Identifying ABS Hydraulic Unit Control Module
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
