Automatic Transaxle Basic Inspection

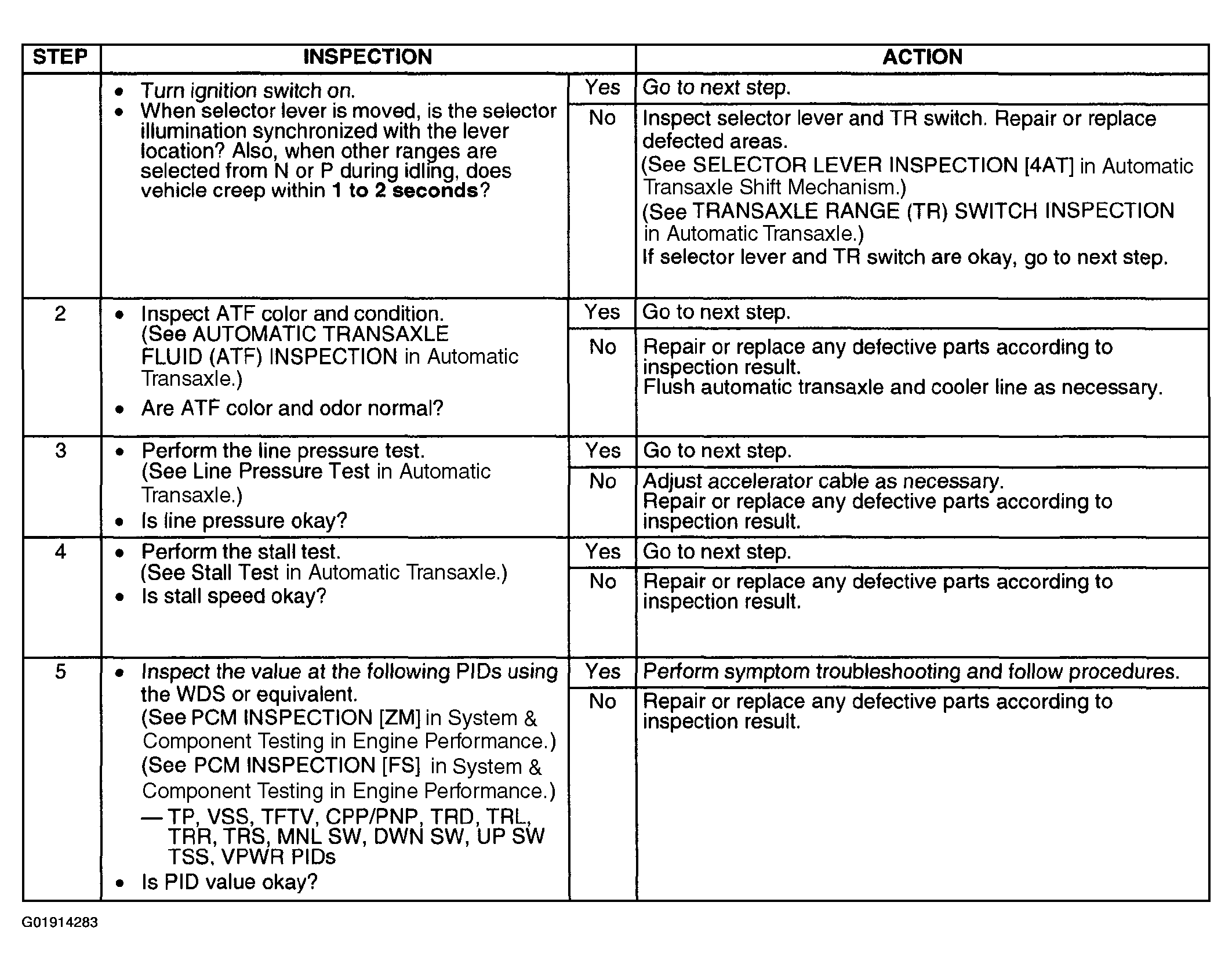

Fig 1: Automatic Transaxle Inspection Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
