Automatic Transaxle Symptom Troubleshooting Item Table: Notes
Use the chart below to verify the symptoms of the trouble in order to diagnose the appropriate area.

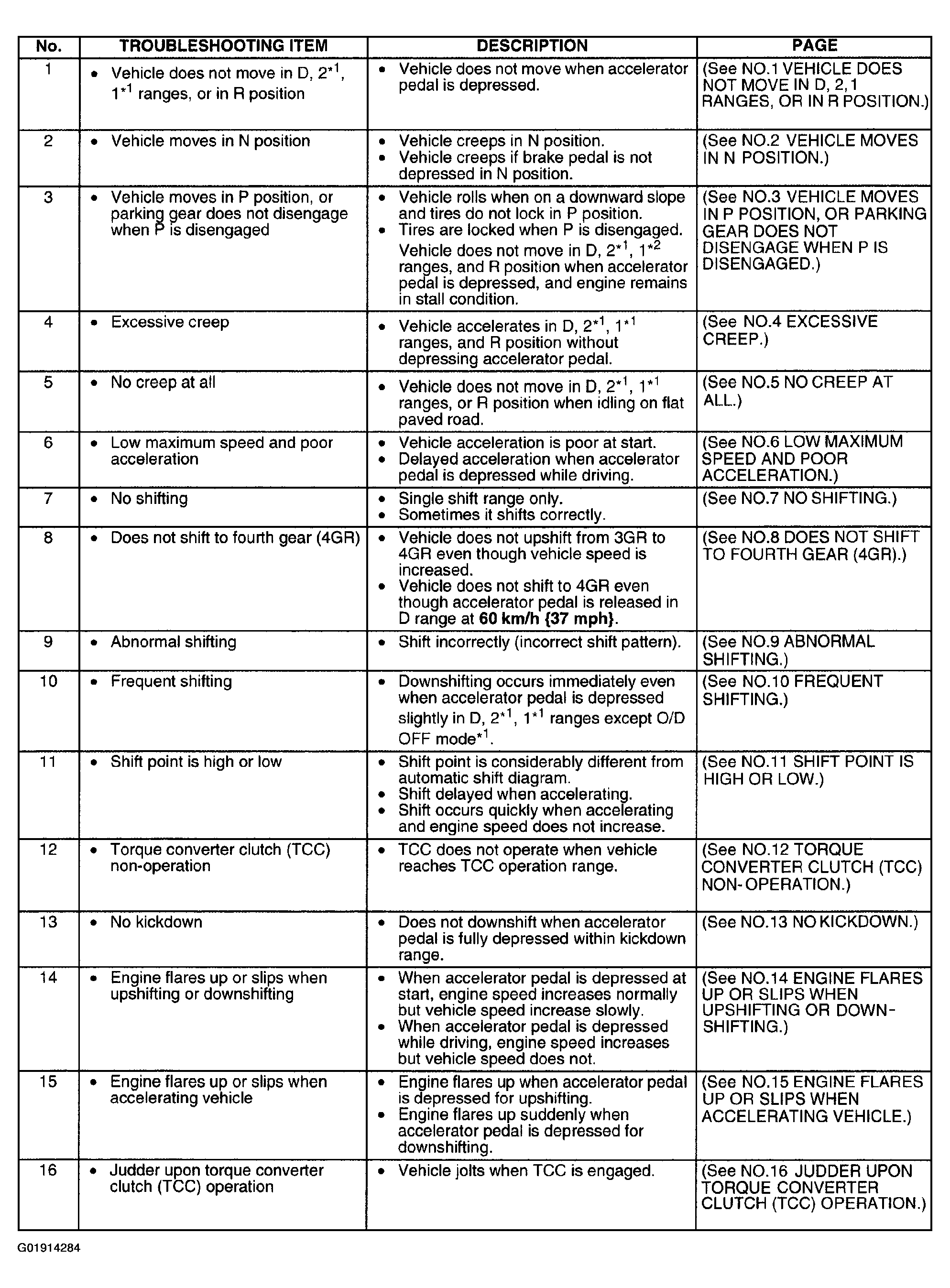

Fig 1: Automatic Transaxle Symptom Troubleshooting Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

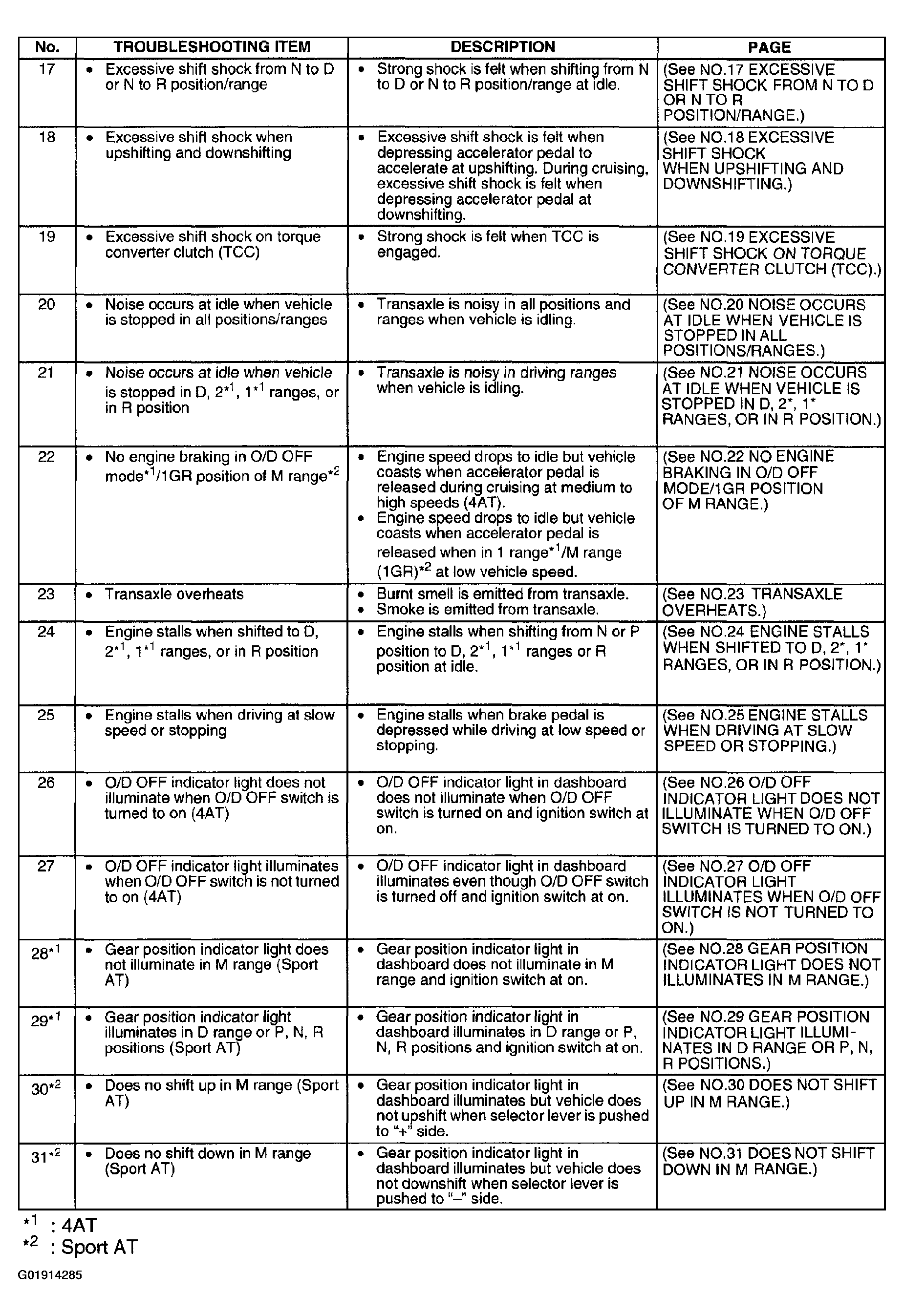

Fig 2: Automatic Transaxle Symptom Troubleshooting Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
