No. 3 Transmitter Id Code Cannot Be Reprogrammed

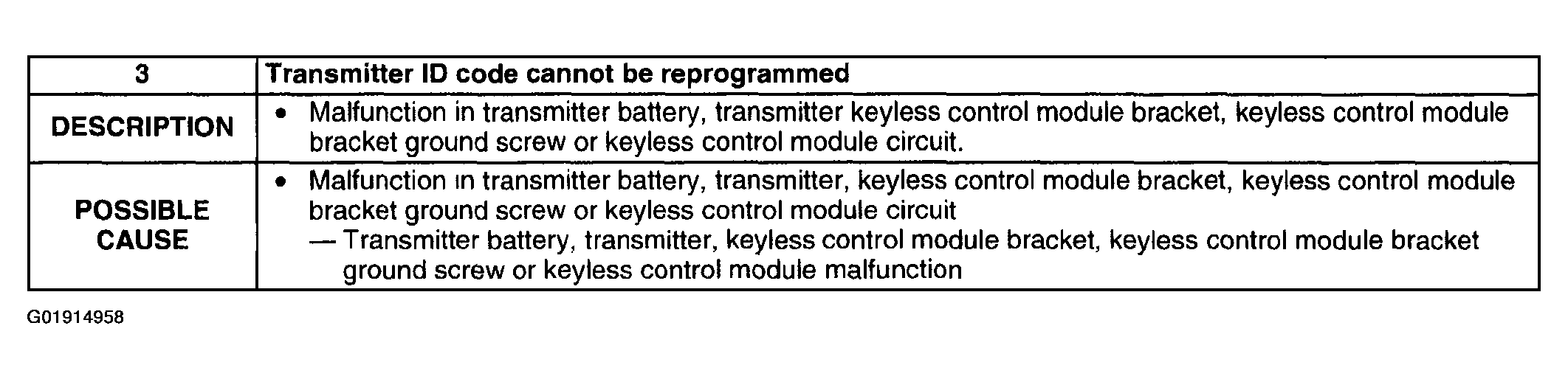

Fig 1: Diagnostic Table - No.3 Transmitter ID Code Cannot Be Reprogrammed

Courtesy of MAZDA MOTORS CORP.

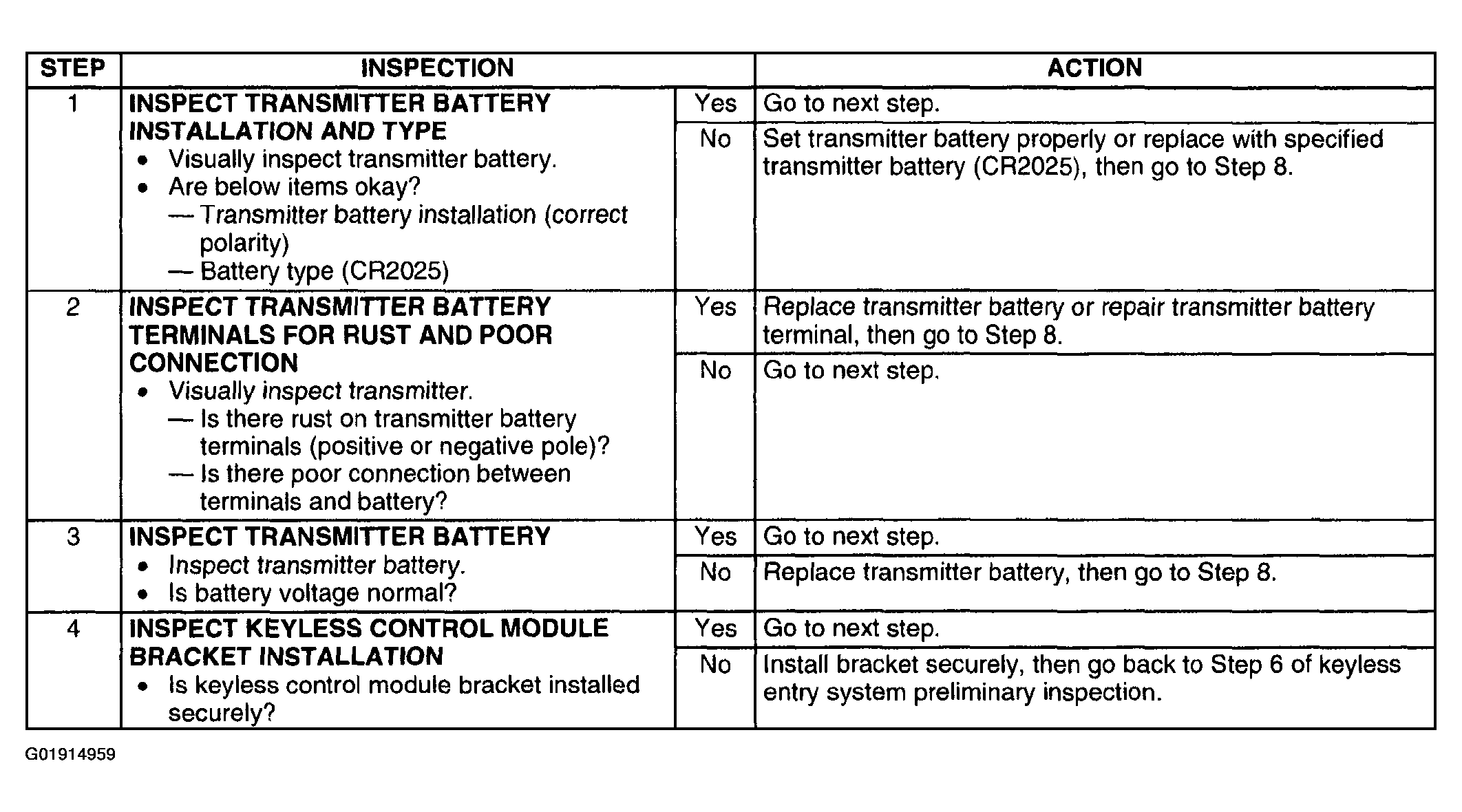

Fig 2: Diagnostic Procedure - No.3 Transmitter ID Code Cannot Be Reprogrammed (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

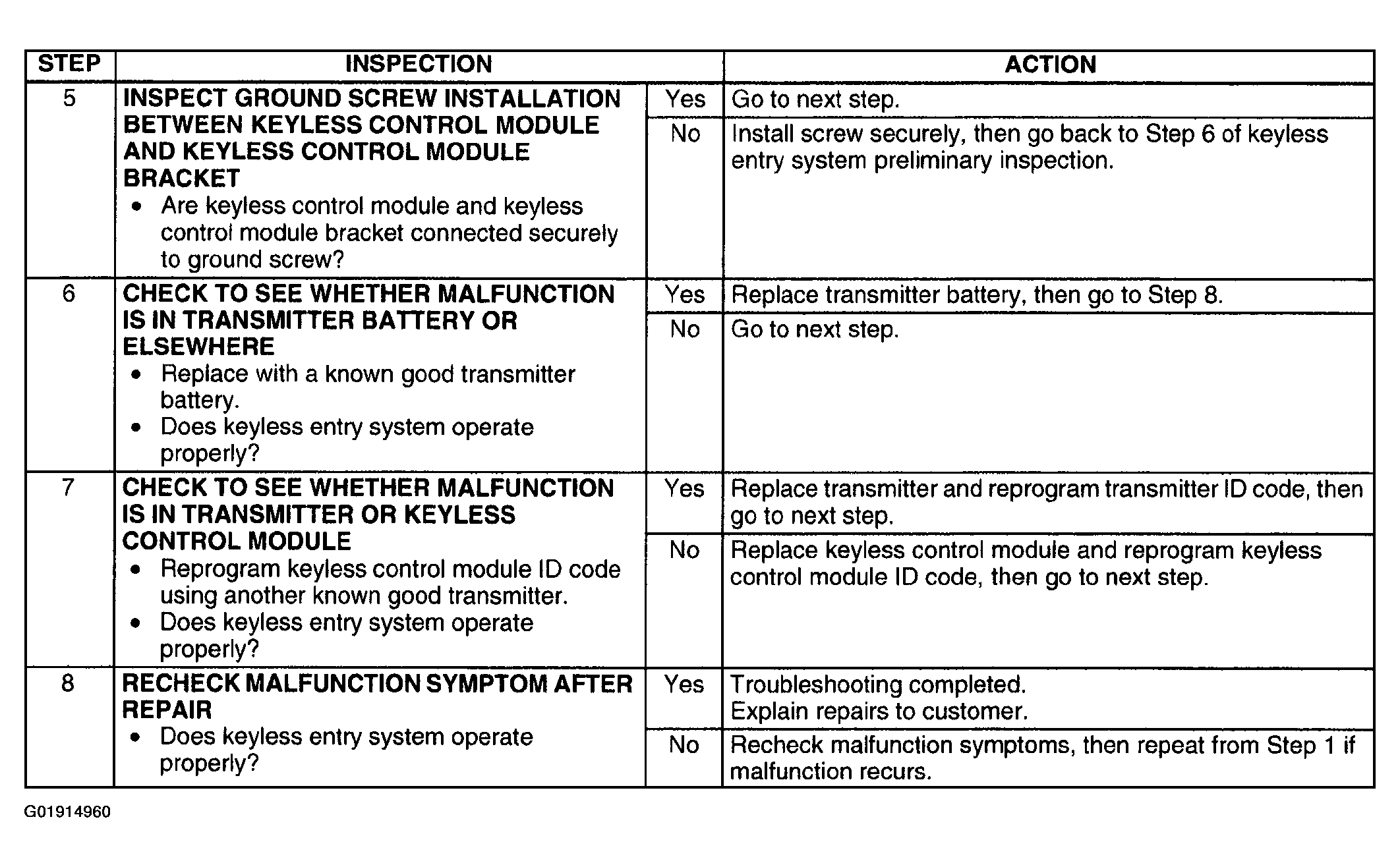

Fig 3: Diagnostic Procedure - No.3 Transmitter ID Code Cannot Be Reprogrammed (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
