Cruise Control Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE .)
  3. Disconnect the cruise control switch connector.
  4. Remove in the order indicated in the figure.

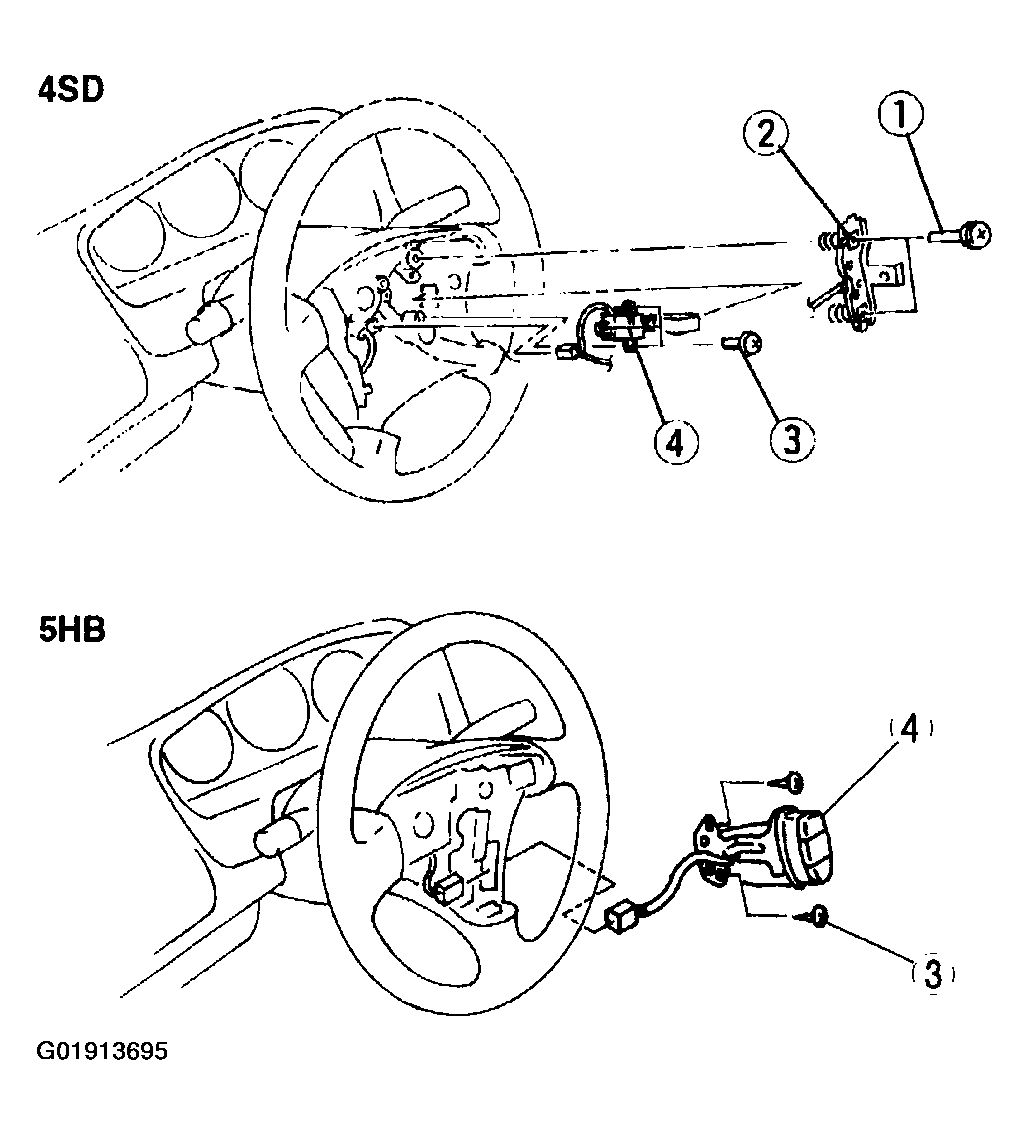

    Fig 1: Removing Cruise Control Switch
    G01913695Courtesy of MAZDA MOTORS CORP.
    Fig 2: Cruise Control Switch Removal Sequence
    G01913694Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
