Instrument Cluster Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
  3. Remove the meter hood.
  4. Remove in the order indicated in the figure(s).

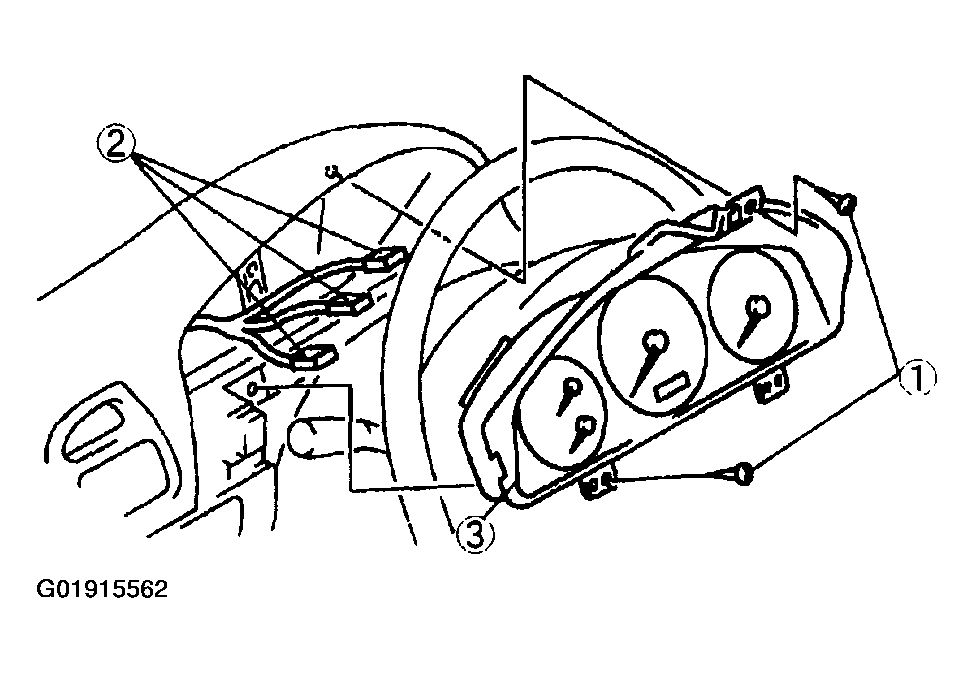

    Fig 1: Removing Instrument Cluster
    G01915562Courtesy of MAZDA MOTORS CORP.
    Fig 2: Instrument Cluster Removal Sequence
    G01915561Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
