Connector Locations

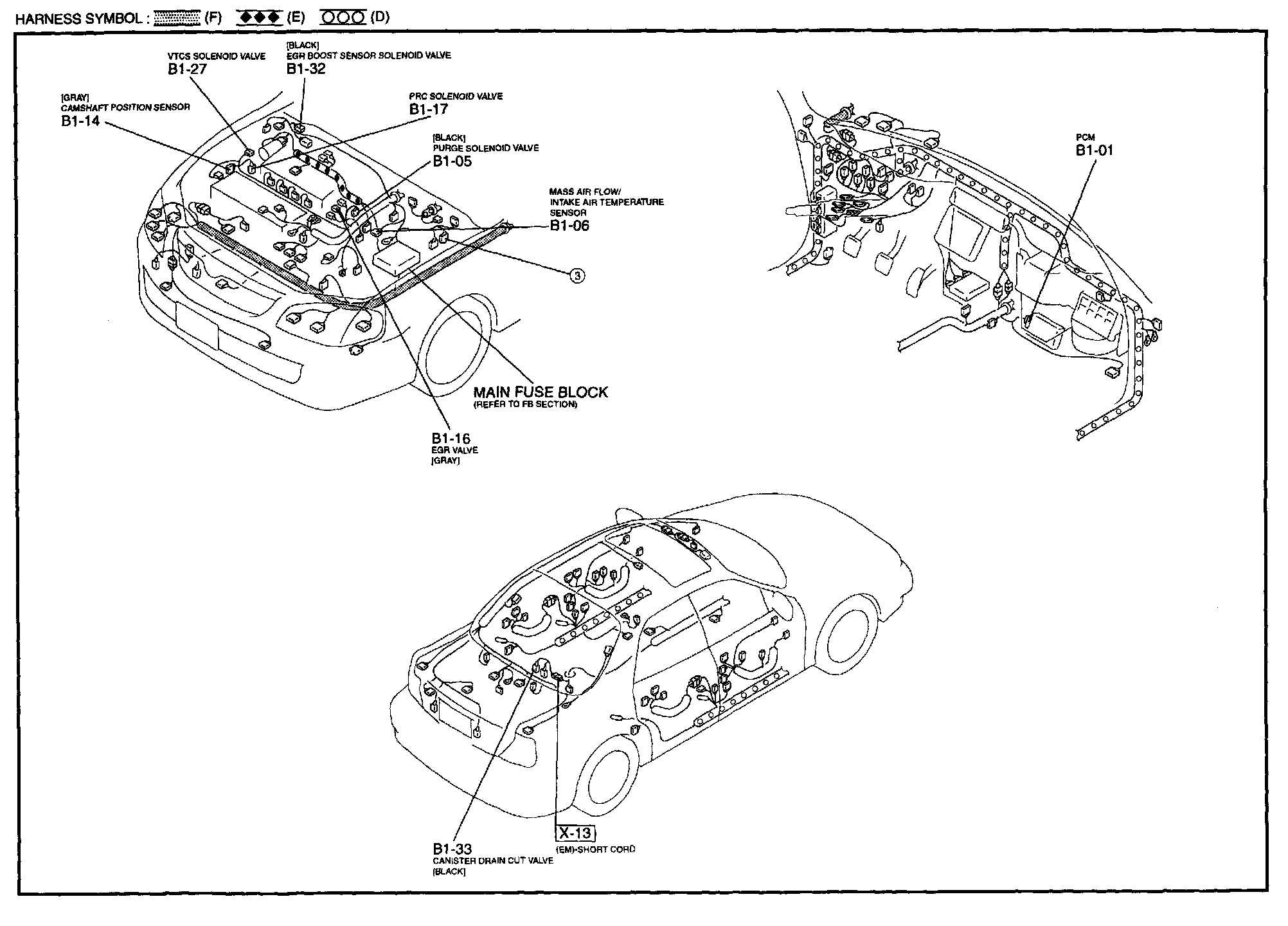

B-1a - EC-AT Control System/Engine Control System Harness/Connector Symbols:

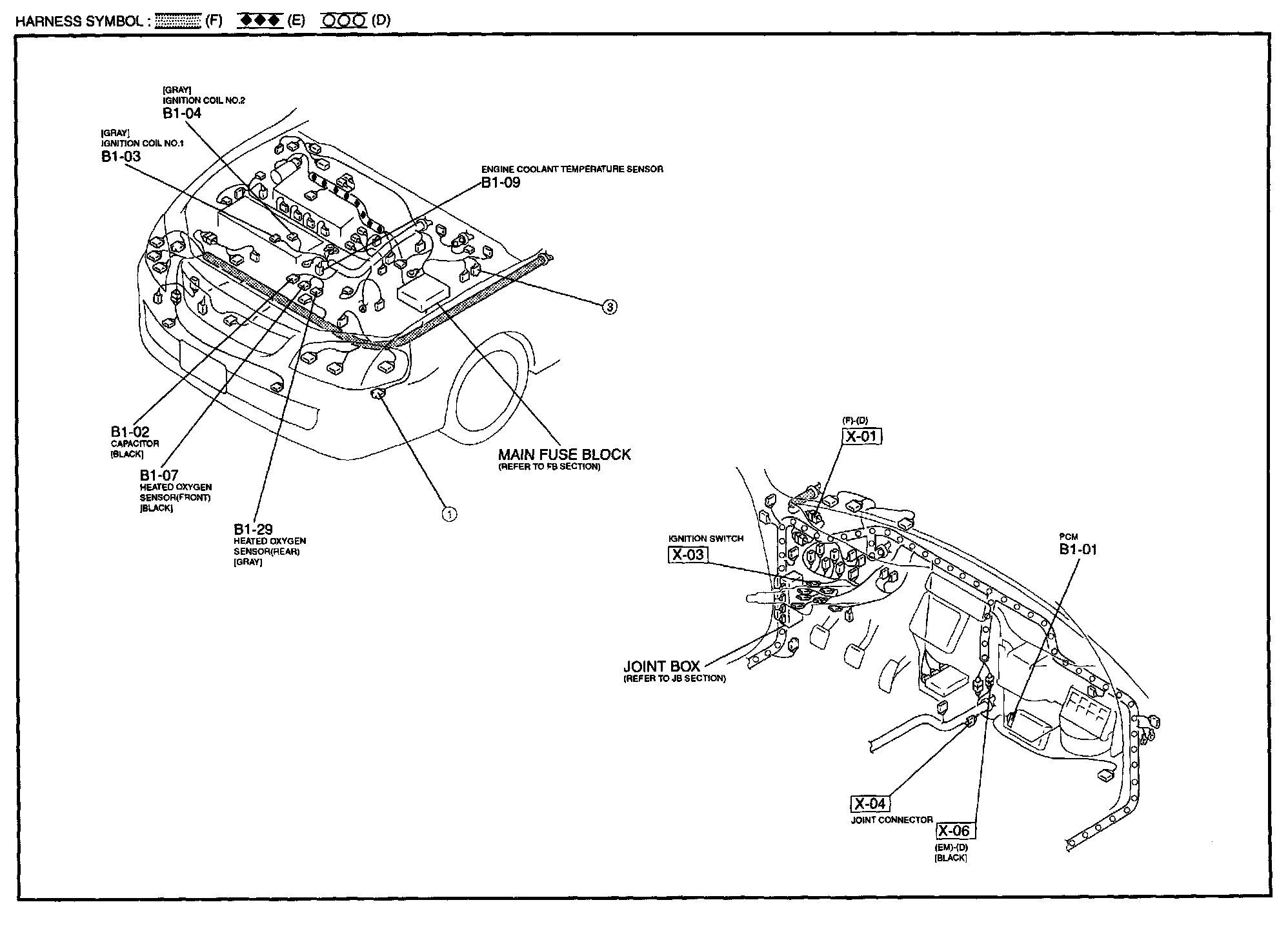

B-1b - EC-AT Control System/Engine Control System Harness/Connector Symbol:

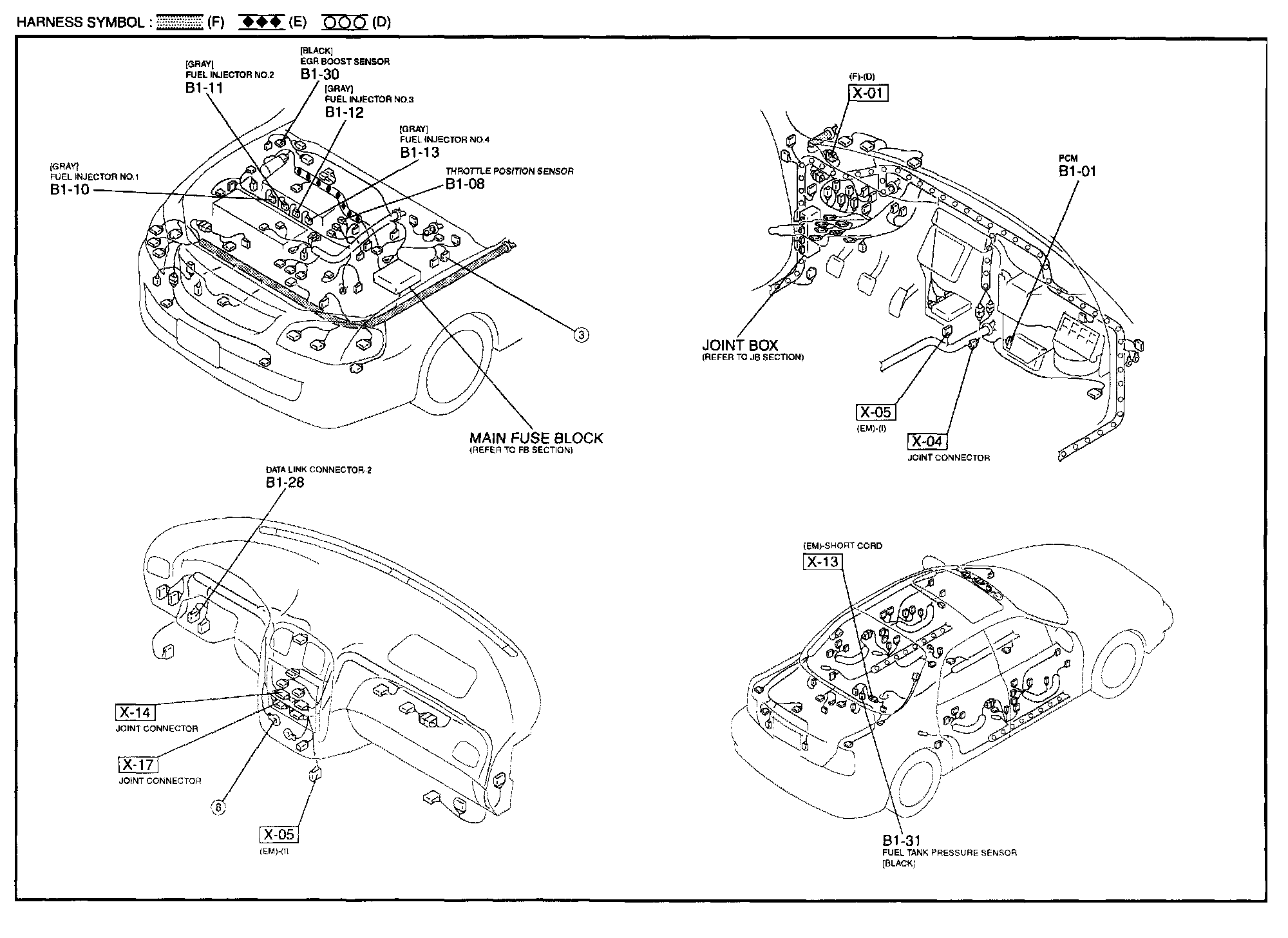

B-1c - EC-AT Control System/Engine Control System Harness/Connector Symbols:

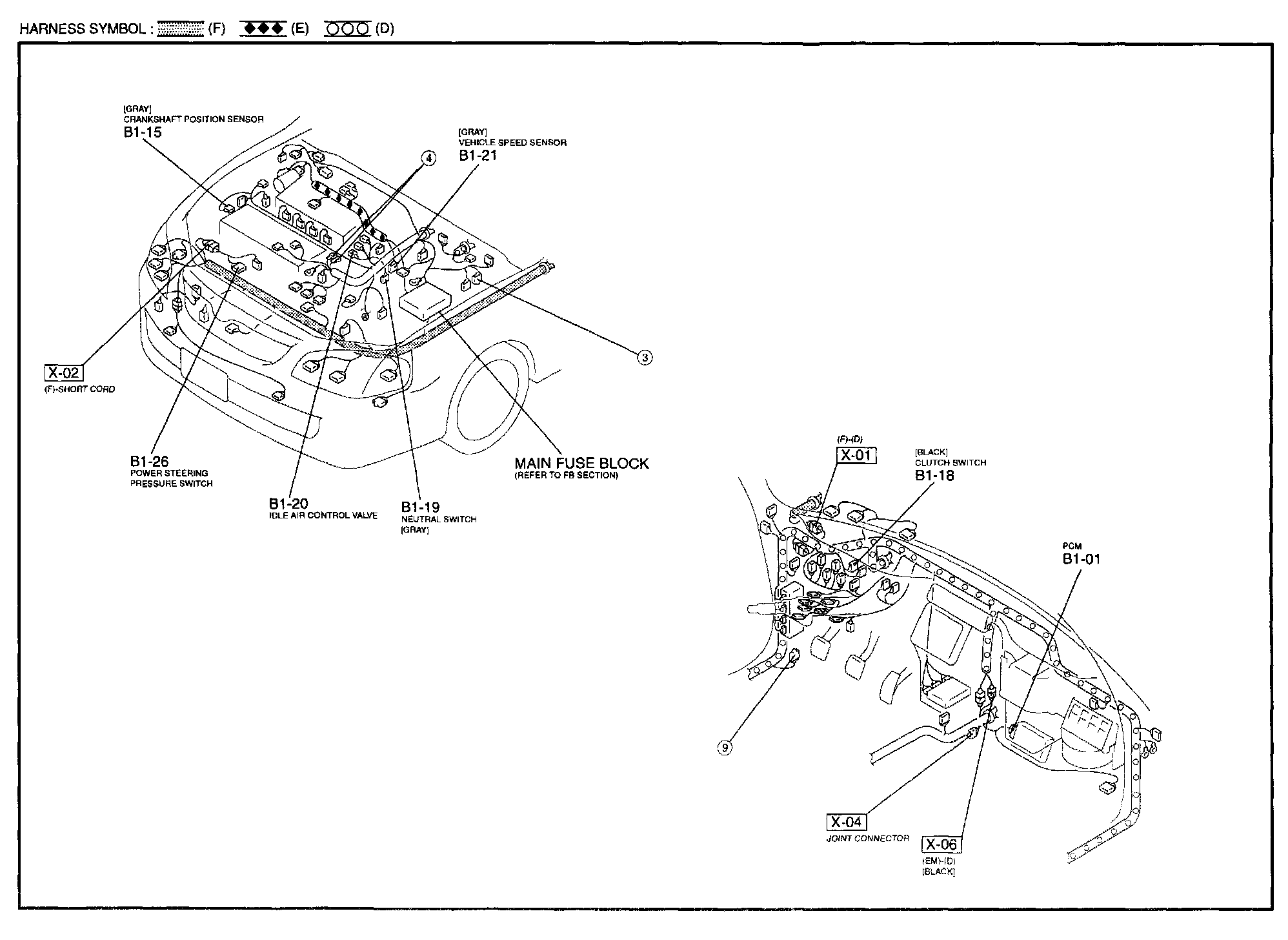

B-1d - EC-AT Control System/Engine Control System Harness/Connector Symbols:

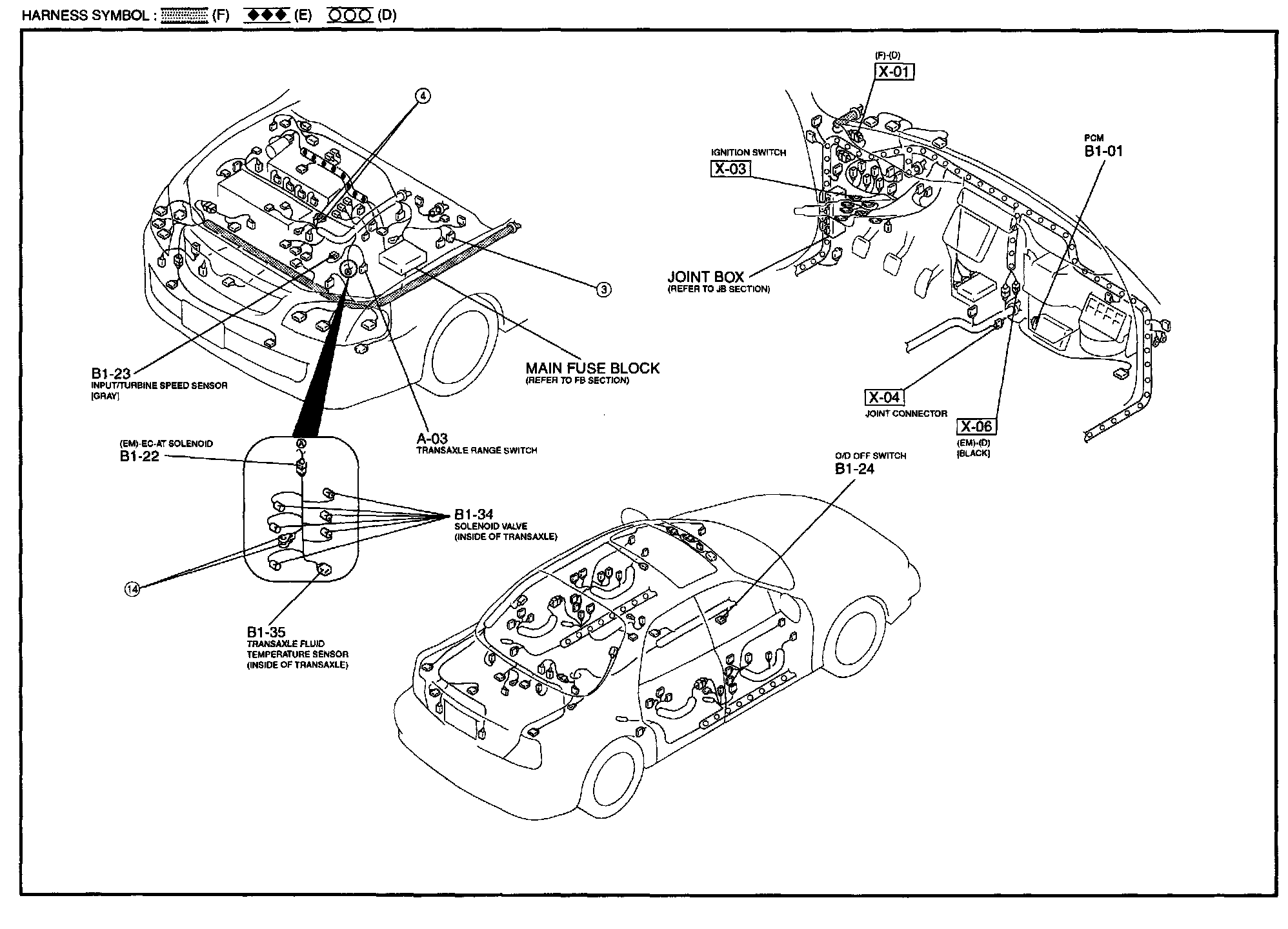

B-1e - EC-AT Control System/Engine Control System Harness/Connector Symbols:
