Keyless Control Module Id Code Change

When programming the ID code into a transmitter, verify that other transmitters are not being operated in the vicinity.
Program the ID code as indicated in the procedure.

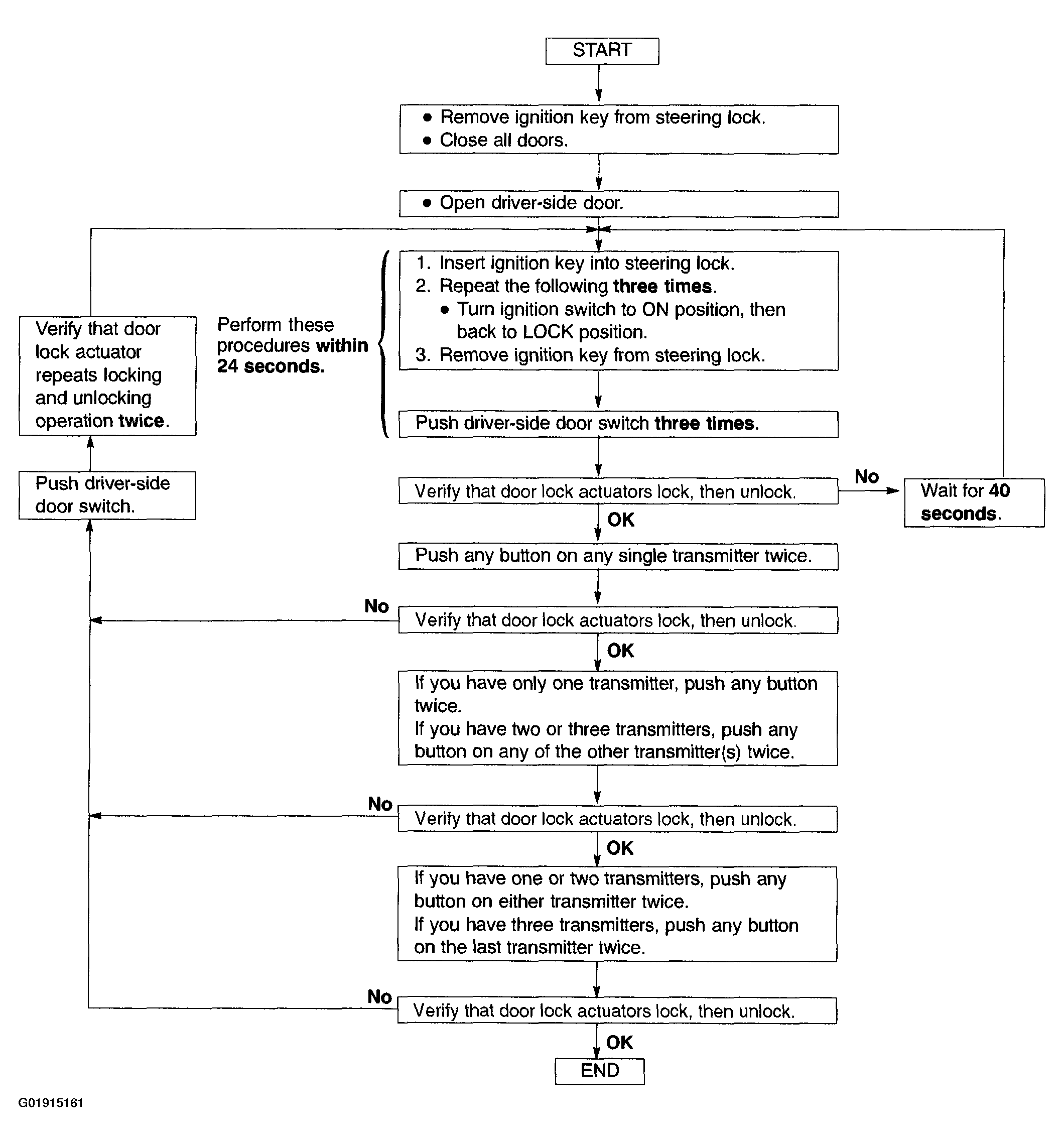

Fig 1: Keyless Control Module ID Code Checking Flow Chart
Courtesy of MAZDA MOTORS CORP.
