Keyless Control Module Removal/Installation: 5HB

  1. Disconnect the negative battery cable.
  2. Disconnect the keyless control module connector, (under driver's side dash)
  3. Remove the bolt to remove the keyless control module and the bracket as a module.

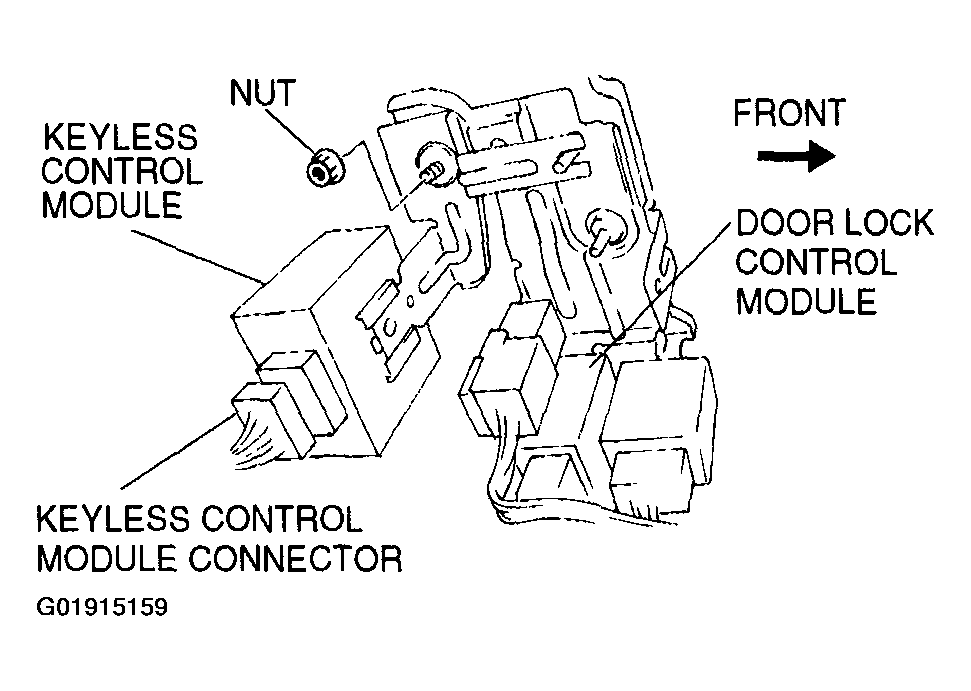

    Fig 1: Removing Keyless Control Module
    G01915159Courtesy of MAZDA MOTORS CORP.
  4. Remove the screw.
  5. Push the stopper using a small driver, and remove the bracket.

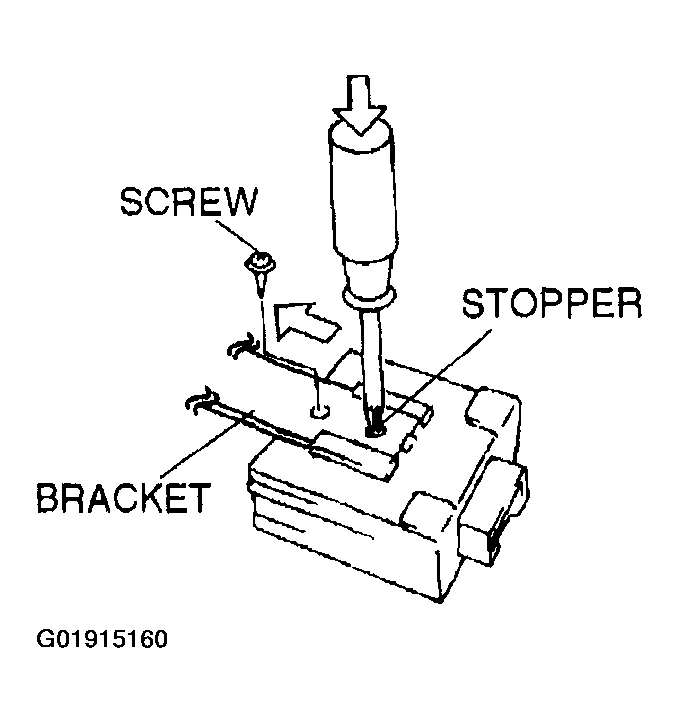

    6. Fig 2: Pushing Stopper Using Small Driver
    G01915160Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
