Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove in the order indicated in the figure.

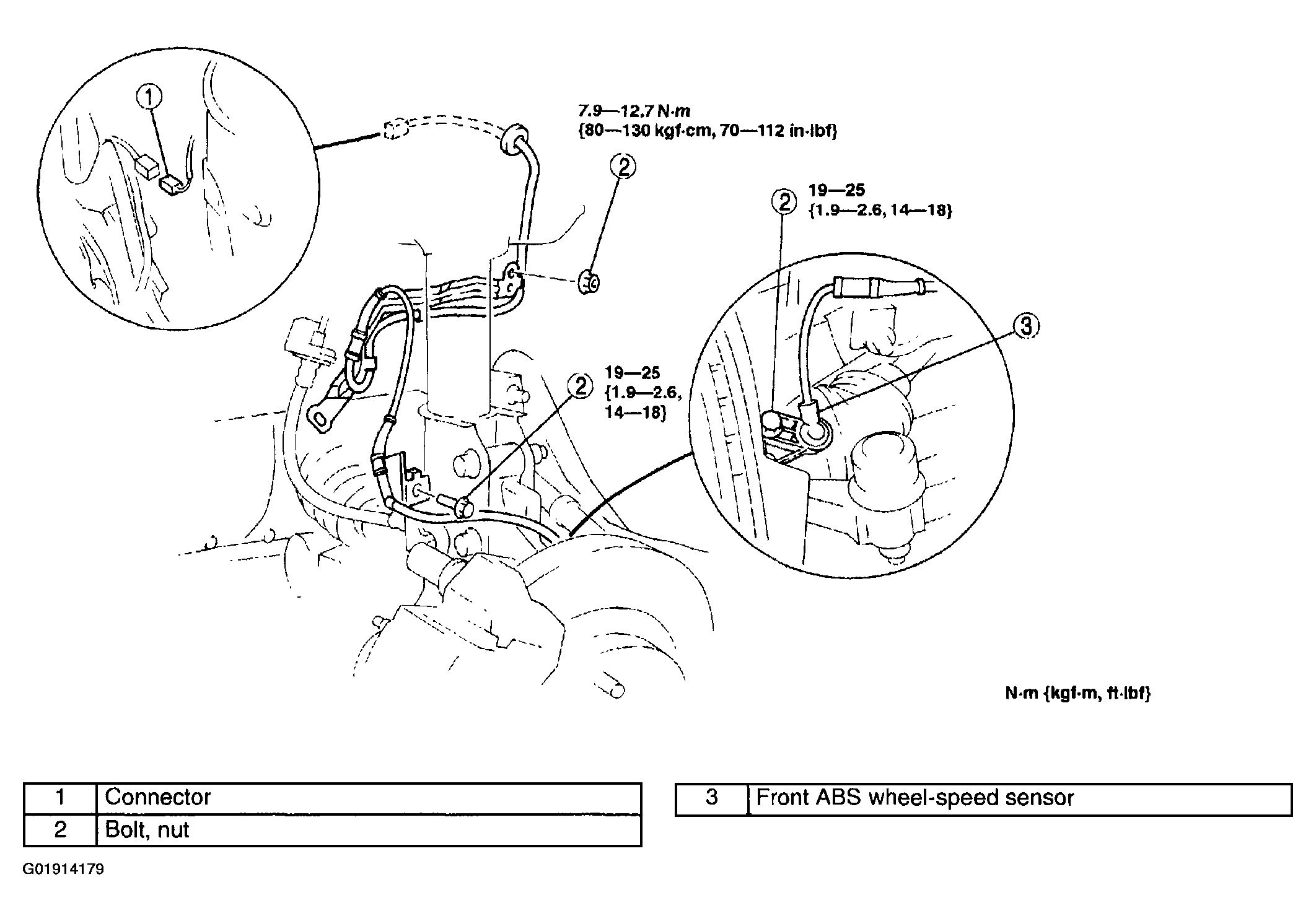

    Fig 1: Removing Front ABS Wheel-Speed Sensor
    G01914179Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
