Steering Gear And Linkage Reassembly: Notes

  1. Assemble in the order indicated in the figure.

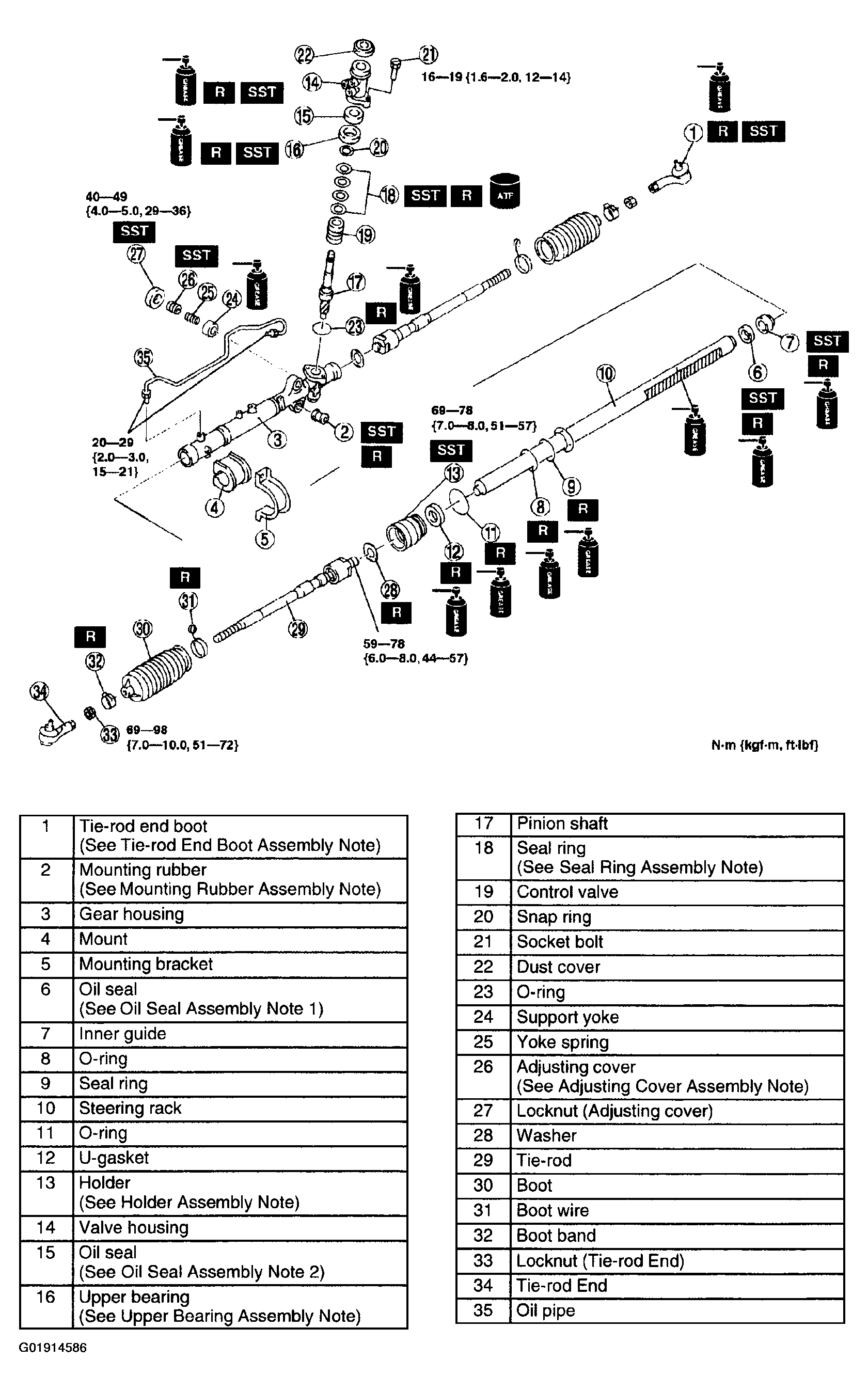

    Fig 1: Assembling Steering Gear And Linkage
    G01914586Courtesy of MAZDA MOTORS CORP.
