Transmission/Transaxle Technical Data

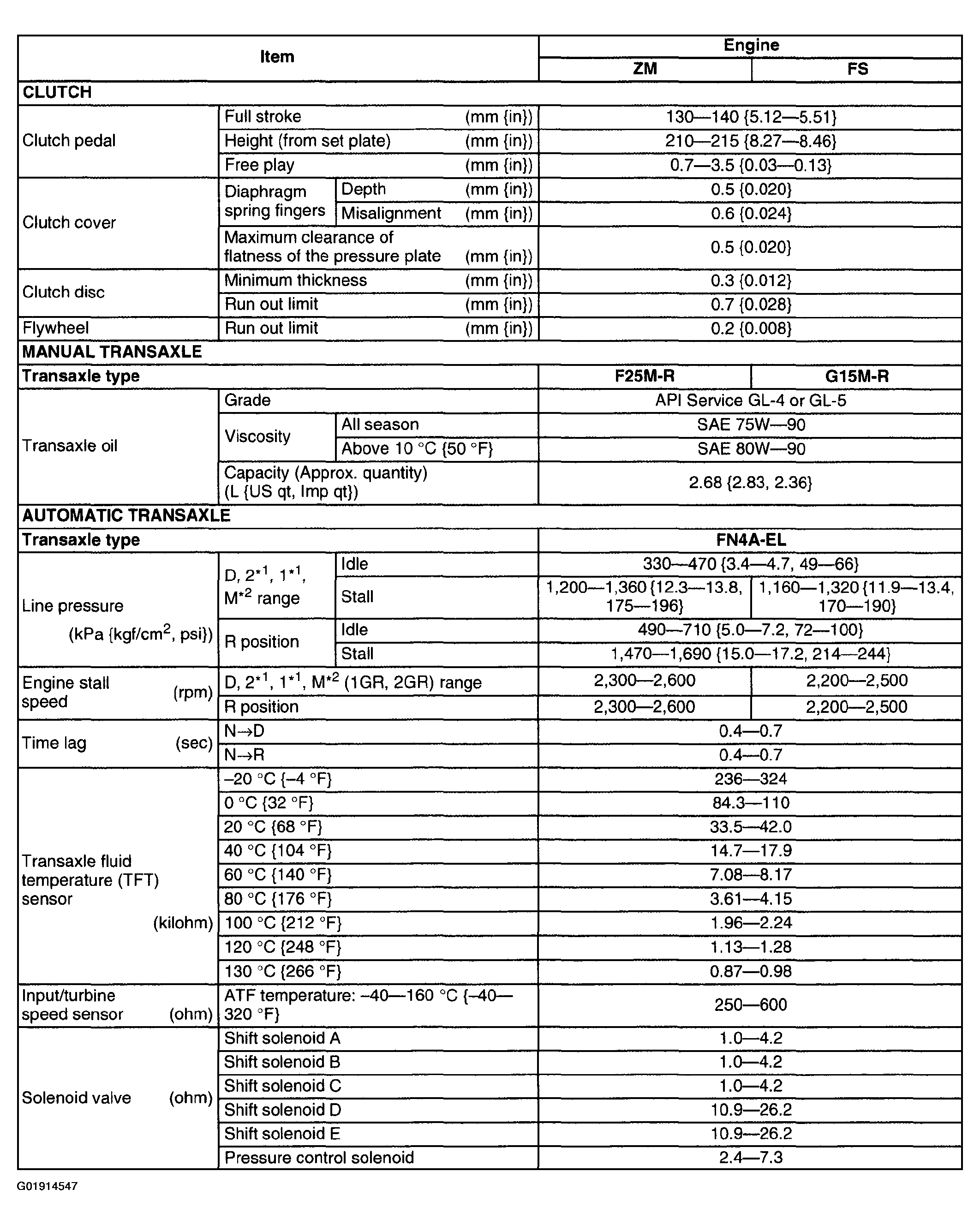

Fig 1: Transmission/Transaxle Technical Data Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Transmission/Transaxle Technical Data Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
