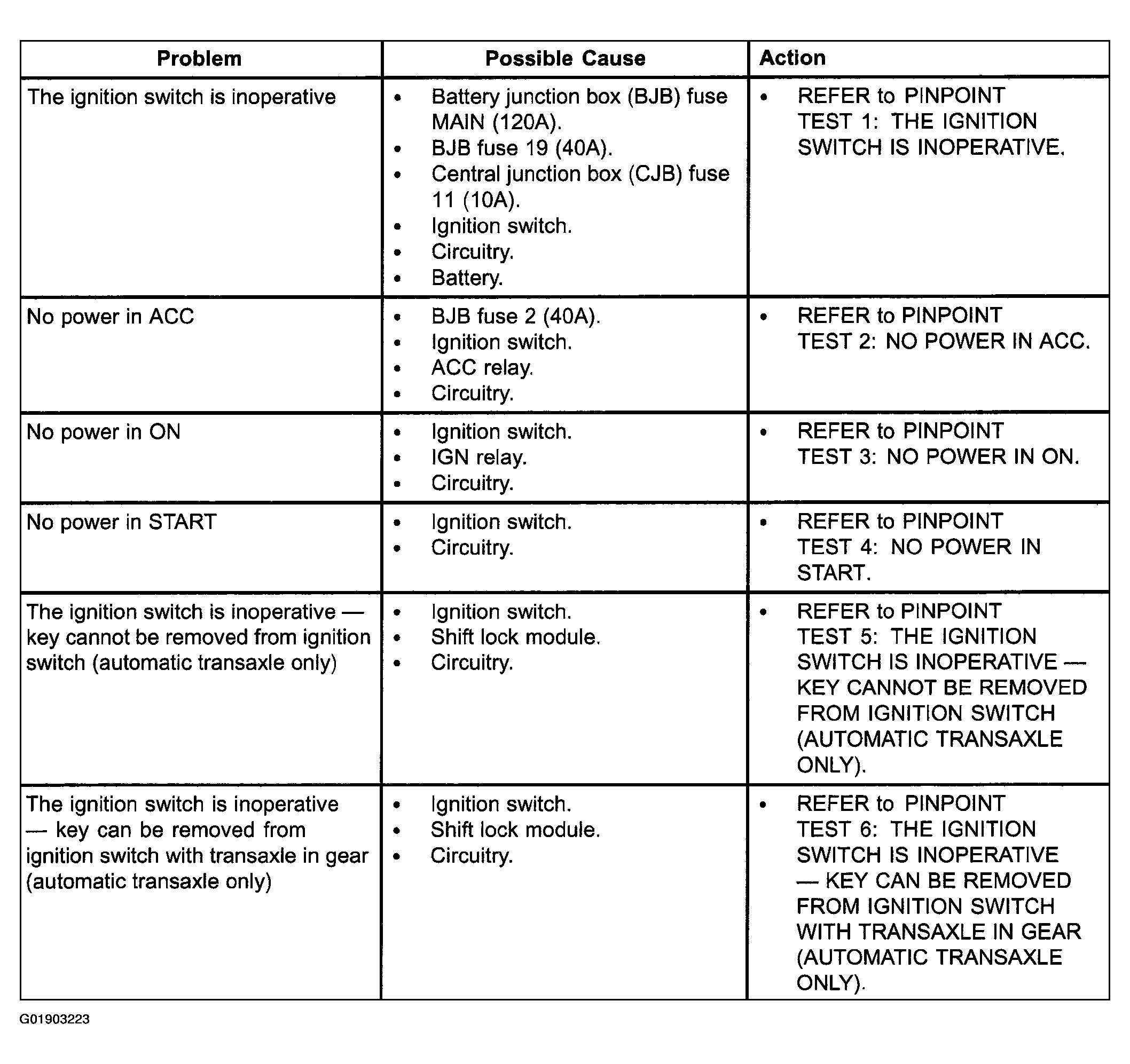

Symptom Troubleshooting Chart - Ignition Switch: Notes
PINPOINT TEST TABLE (IGNITION SWITCH)
| PINPOINT TEST | DESCRIPTION |
|---|---|
| PINPOINT TEST 1 | THE IGNITION SWITCH IS INOPERATIVE |
| PINPOINT TEST 2 | NO POWER IN ACC |
| PINPOINT TEST 3 | NO POWER IN ON |
| PINPOINT TEST 4 | NO POWER IN START |
| PINPOINT TEST 5 | THE IGNITION SWITCH IS INOPERATIVE - KEY CANNOT BE REMOVED FROM IGNITION SWITCH (AUTOMATIC TRANSAXLE ONLY) |
| PINPOINT TEST 6 | THE IGNITION SWITCH IS INOPERATIVE - KEY CAN BE REMOVED FROM IGNITION SWITCH WITH TRANSAXLE IN GEAR (AUTOMATIC TRANSAXLE ONLY) |
