Diagnostic Trouble Code Application Chart

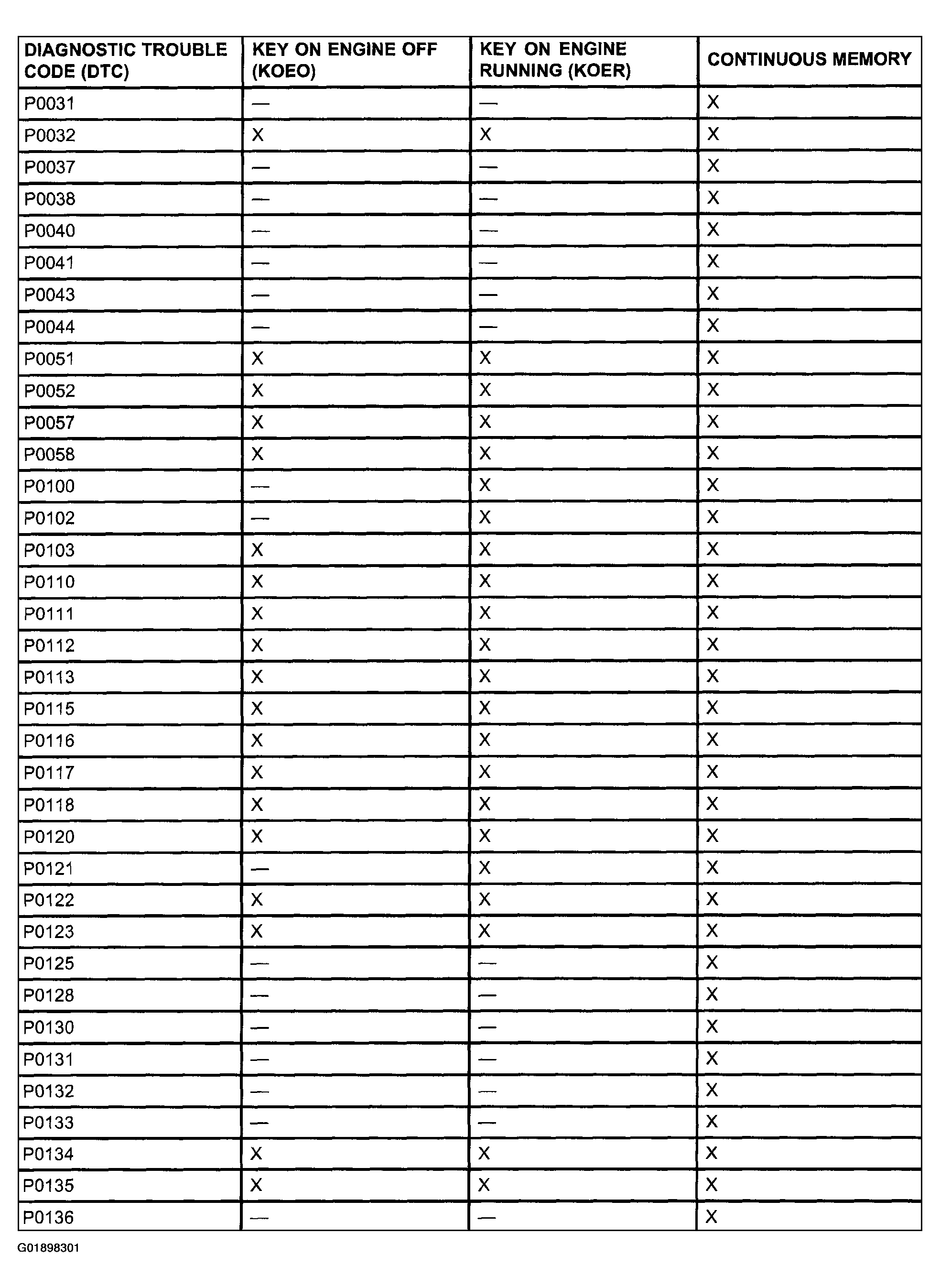

Fig 1: Diagnostic Trouble Code Application Chart (1 Of 11)

Courtesy of FORD MOTOR CO.

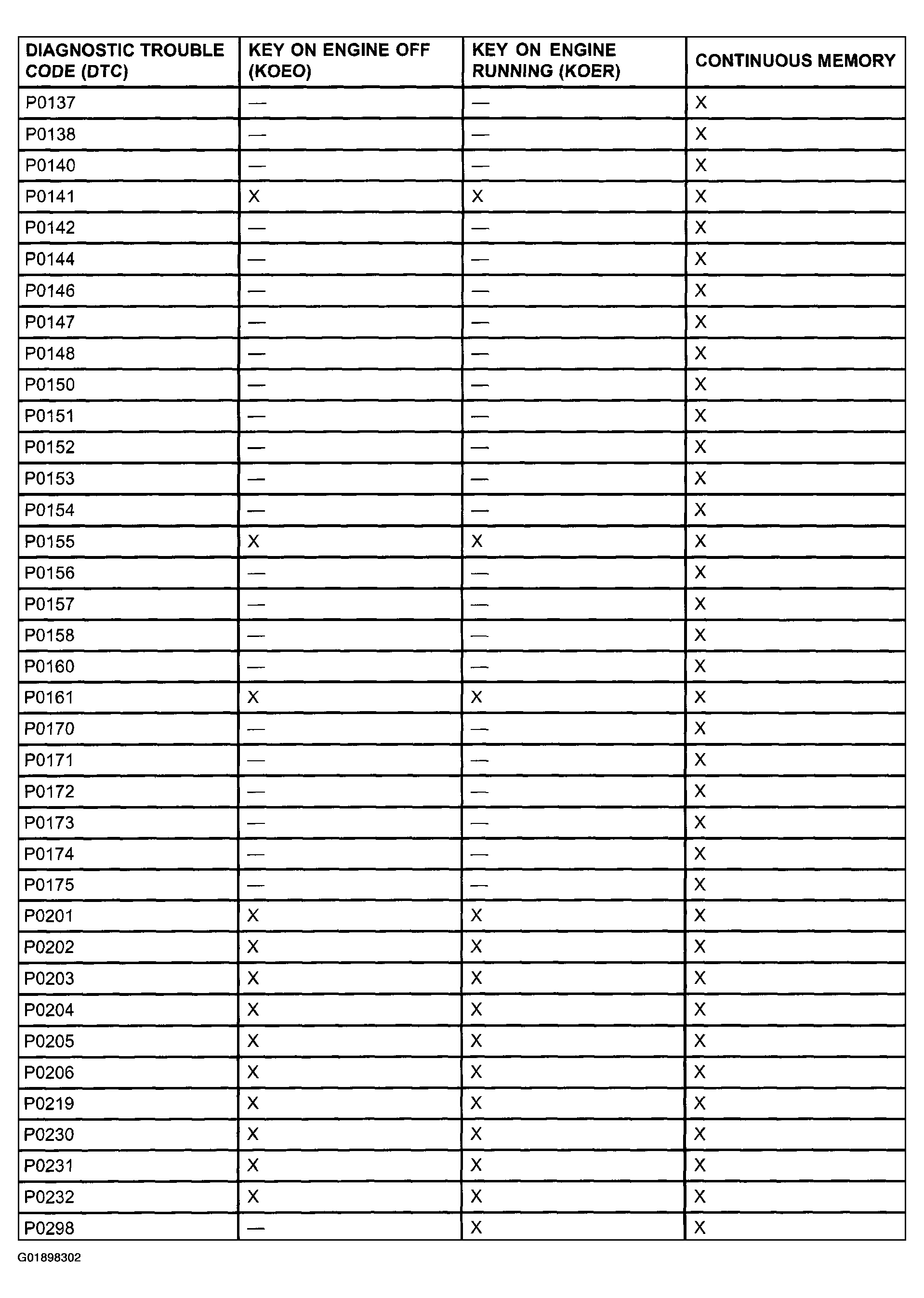

Fig 2: Diagnostic Trouble Code Application Chart (2 Of 11)

Courtesy of FORD MOTOR CO.

Fig 3: Diagnostic Trouble Code Application Chart (3 Of 11)

Courtesy of FORD MOTOR CO.

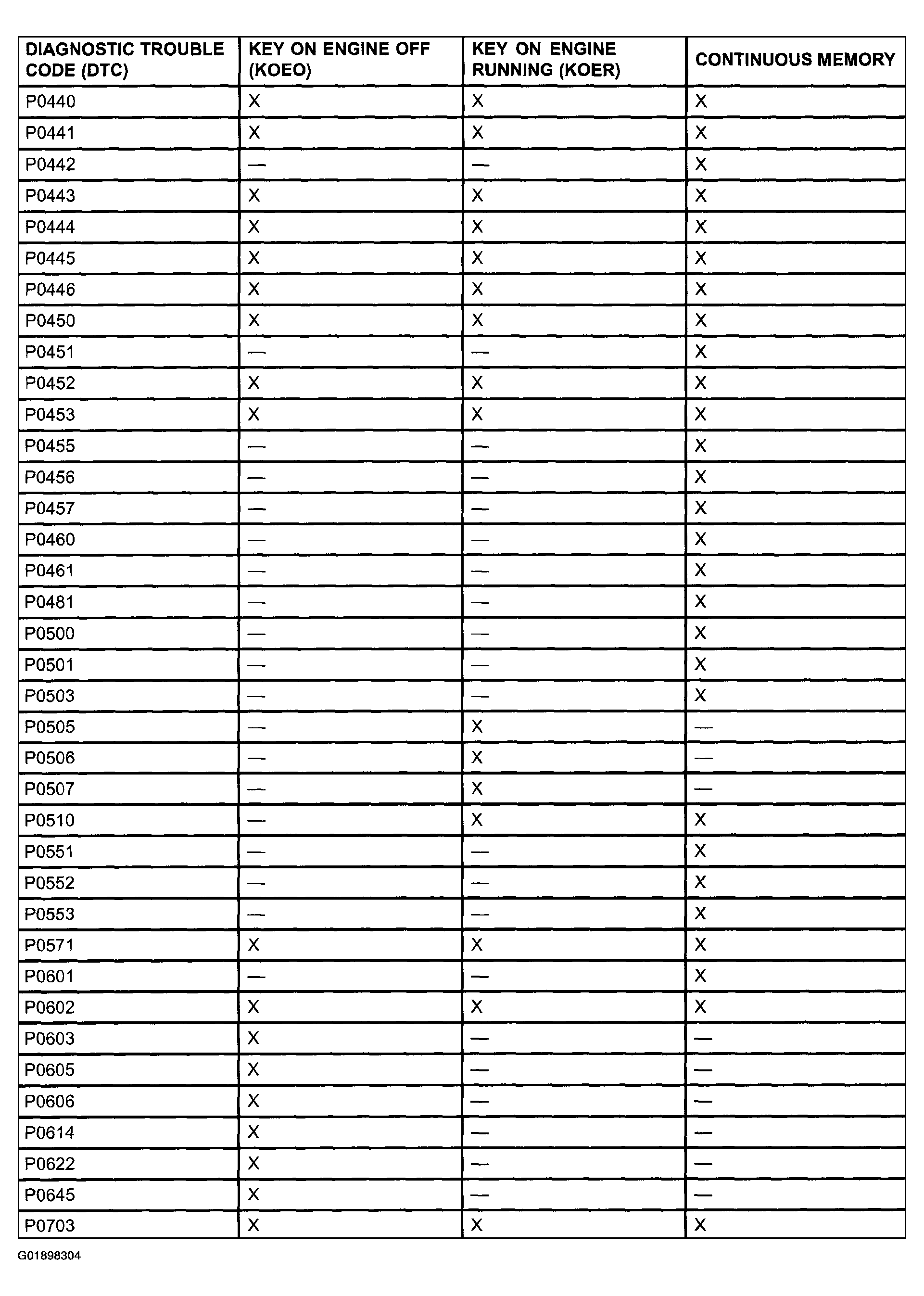

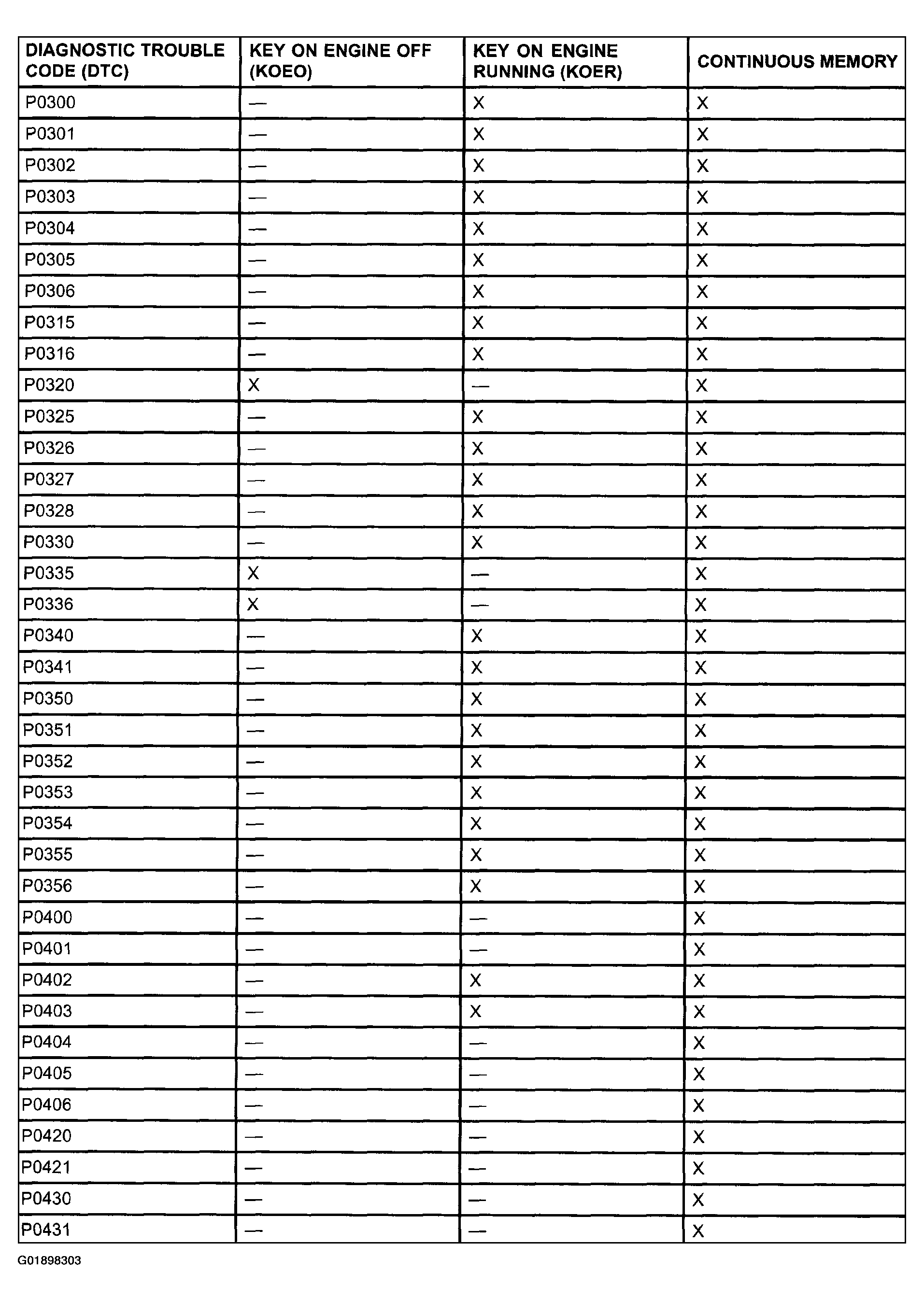

Fig 4: Diagnostic Trouble Code Application Chart (4 Of 11)

Courtesy of FORD MOTOR CO.

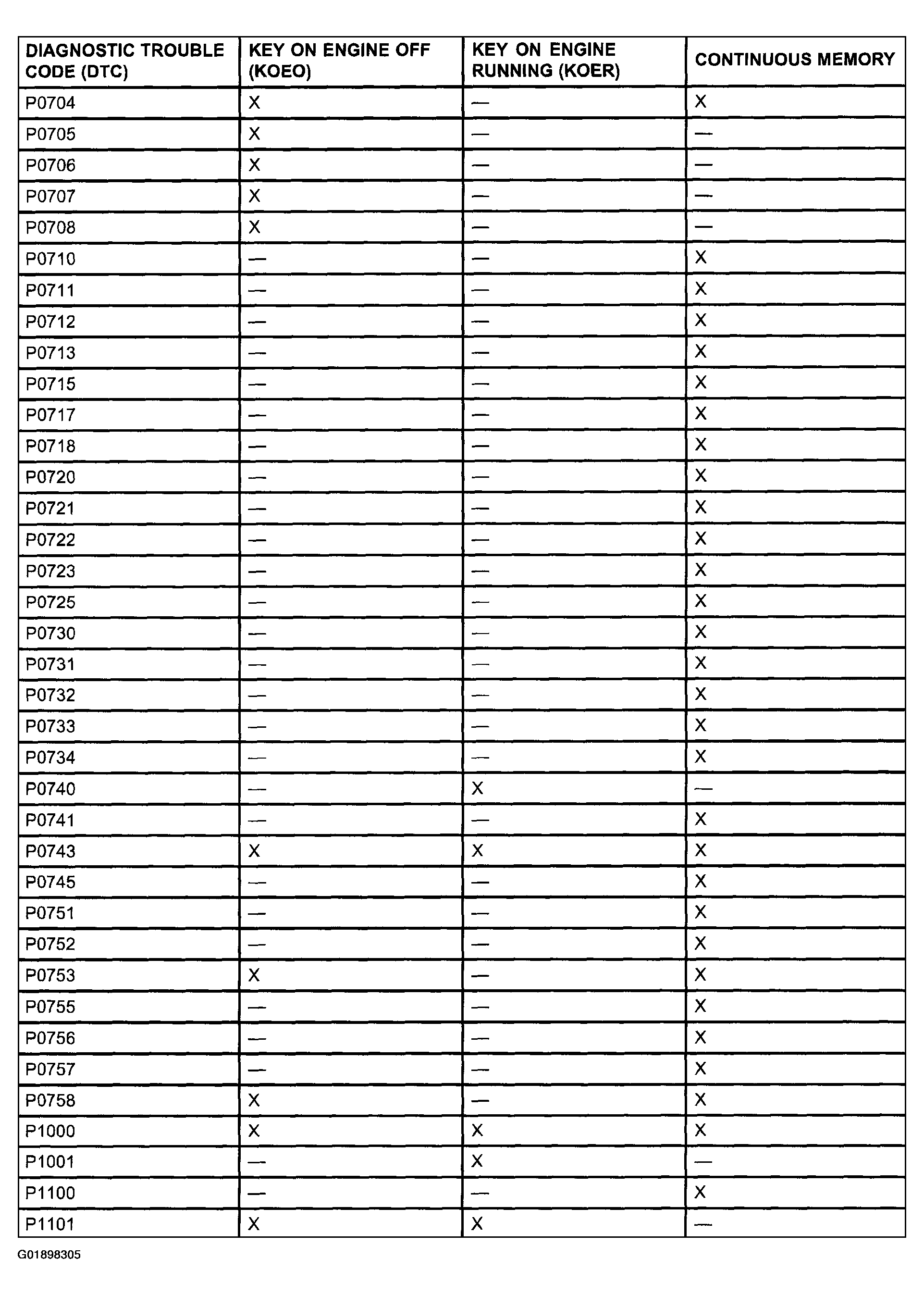

Fig 5: Diagnostic Trouble Code Application Chart (5 Of 11)

Courtesy of FORD MOTOR CO.

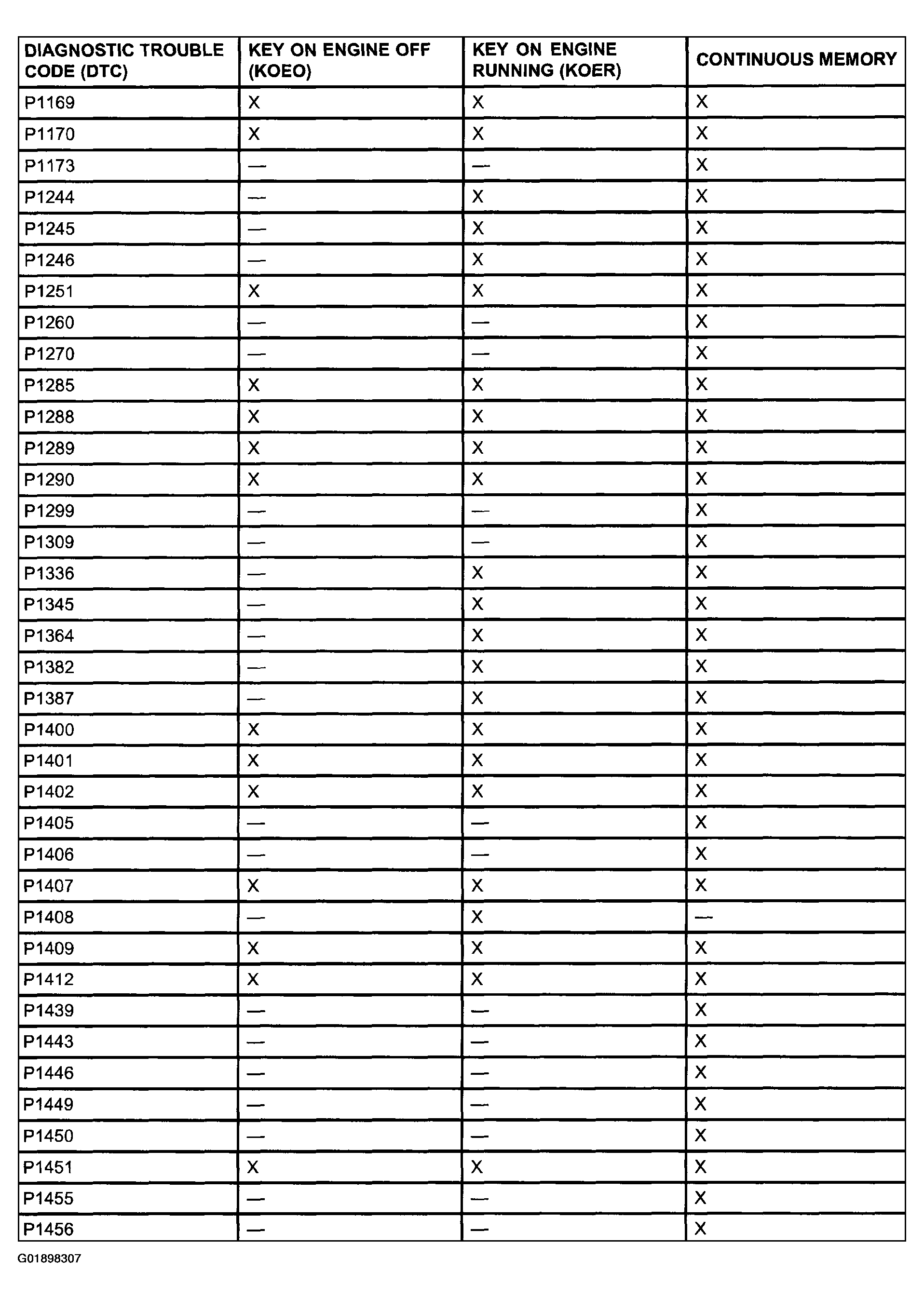

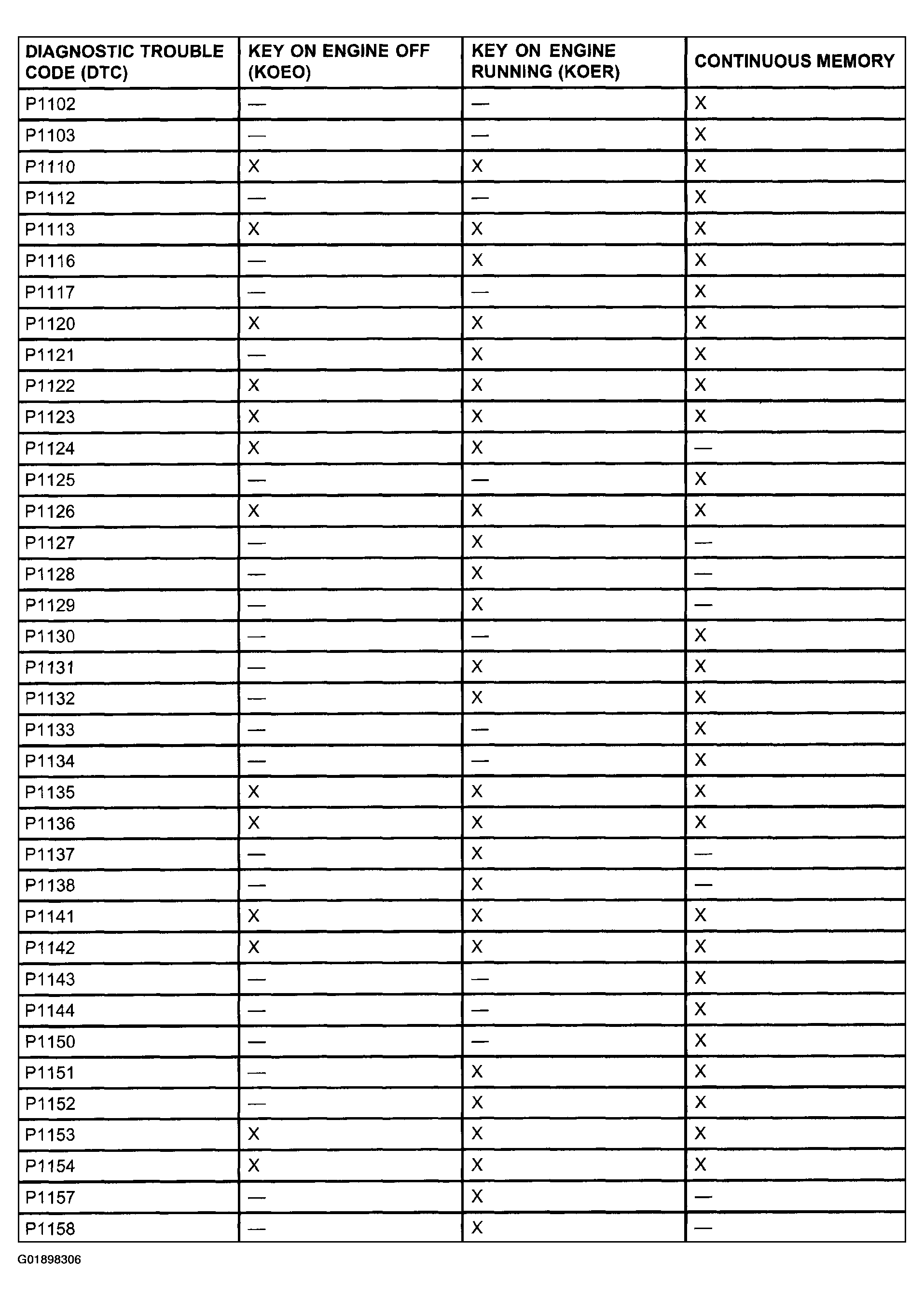

Fig 6: Diagnostic Trouble Code Application Chart (6 Of 11)

Courtesy of FORD MOTOR CO.

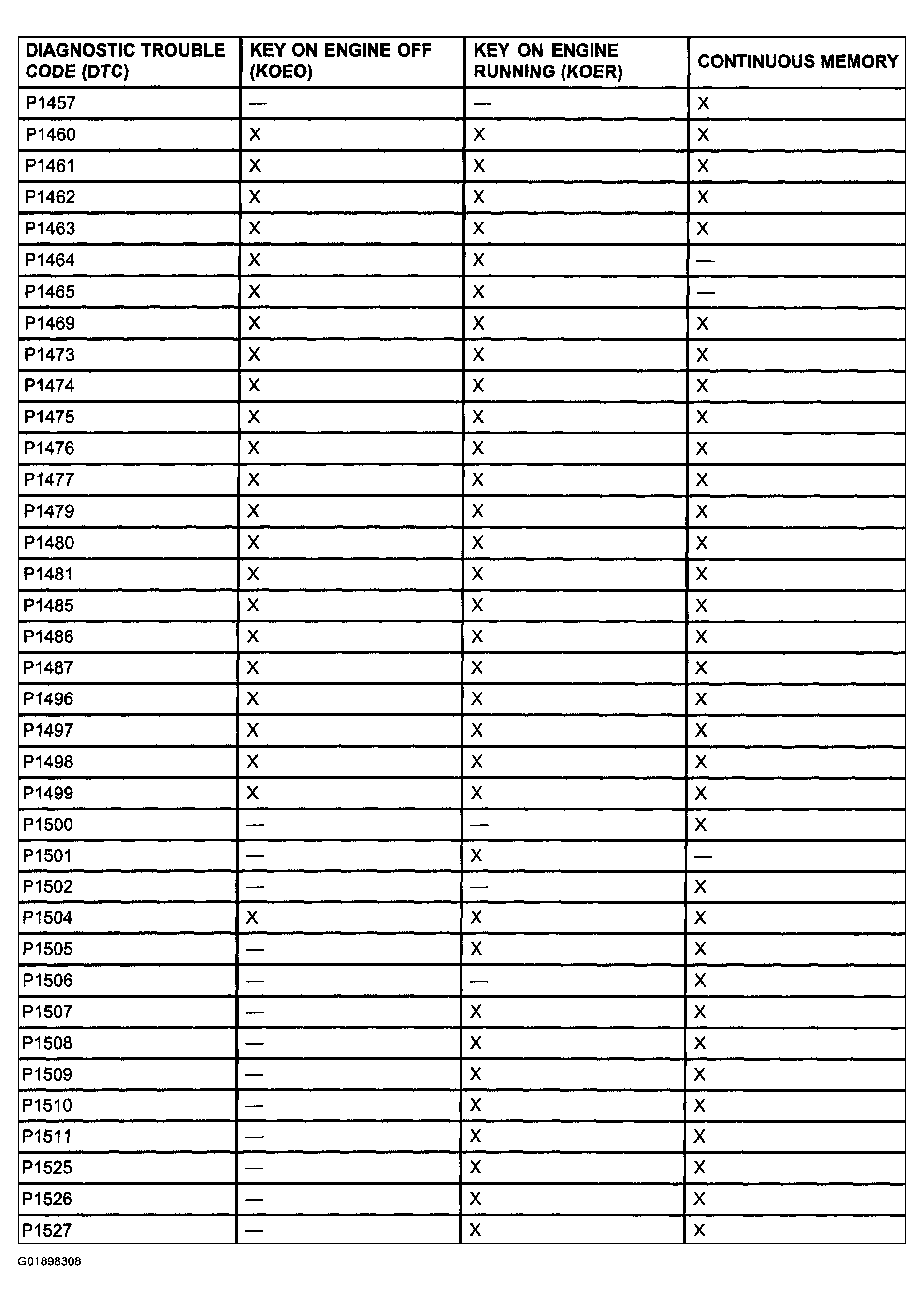

Fig 7: Diagnostic Trouble Code Application Chart (7 Of 11)

Courtesy of FORD MOTOR CO.

Fig 8: Diagnostic Trouble Code Application Chart (8 Of 11)

Courtesy of FORD MOTOR CO.

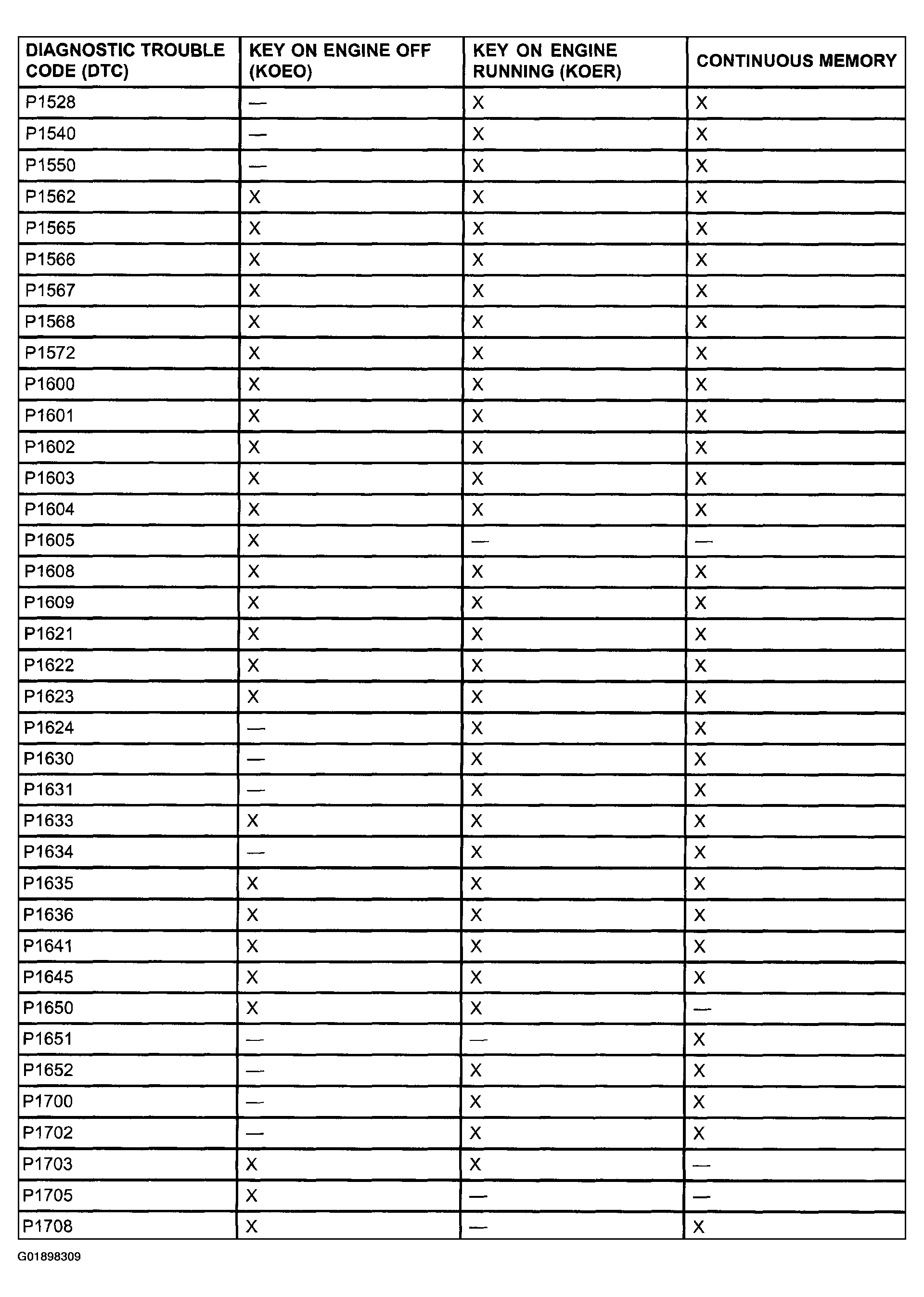

Fig 9: Diagnostic Trouble Code Application Chart (9 Of 11)

Courtesy of FORD MOTOR CO.

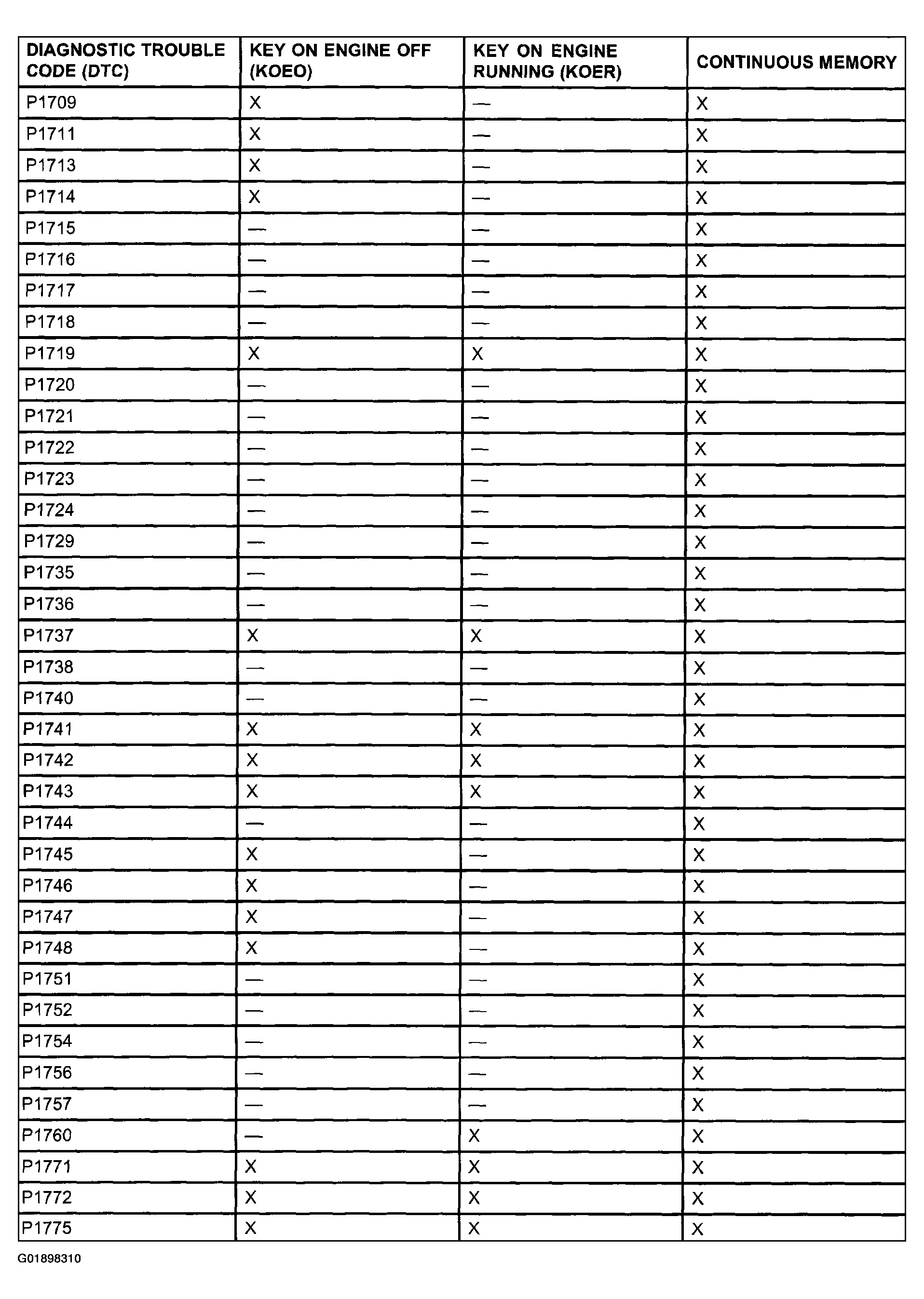

Fig 10: Diagnostic Trouble Code Application Chart (10 Of 11)

Courtesy of FORD MOTOR CO.

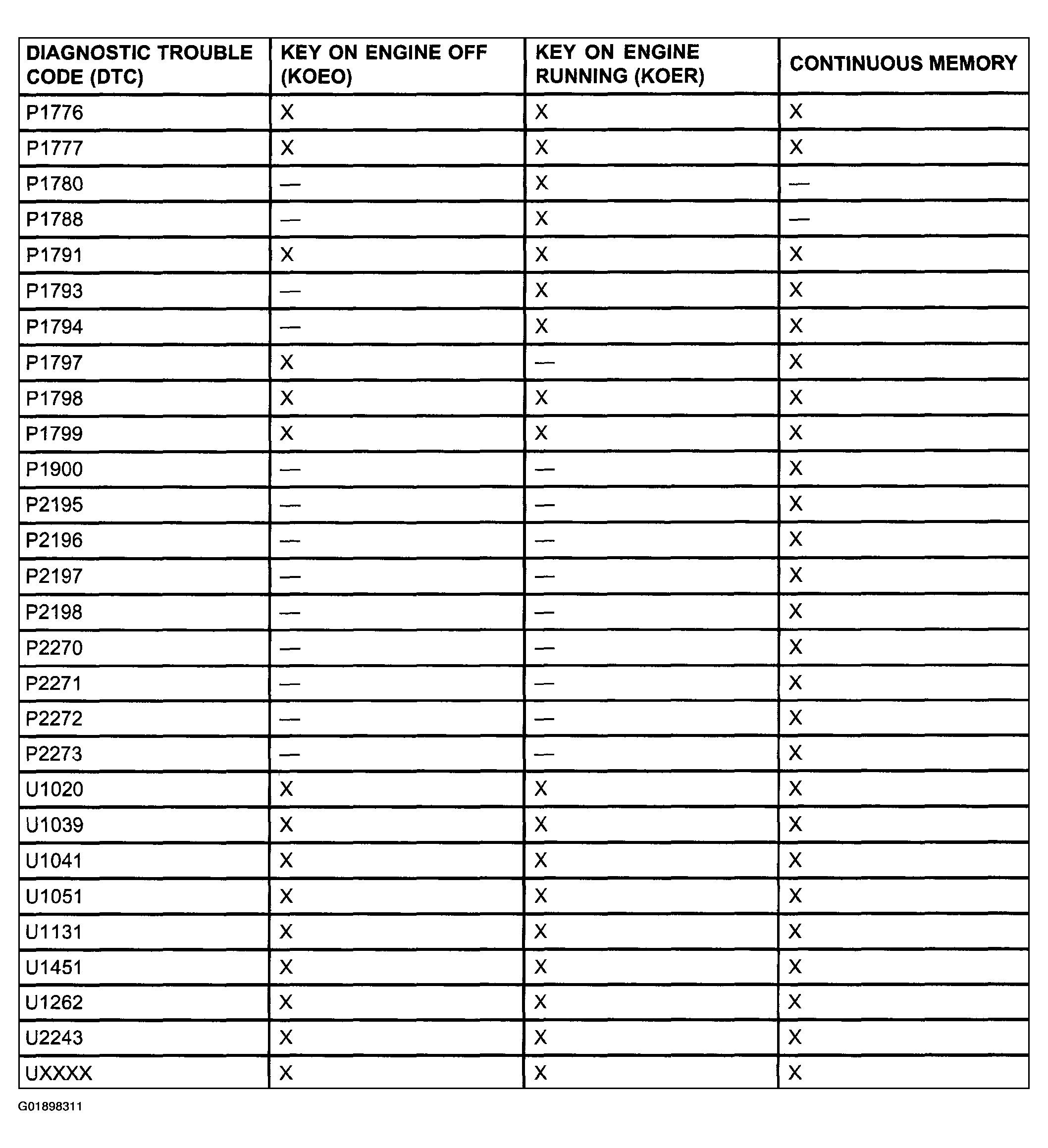

Fig 11: Diagnostic Trouble Code Application Chart (11 Of 11)

Courtesy of FORD MOTOR CO.
