Removal and Installation

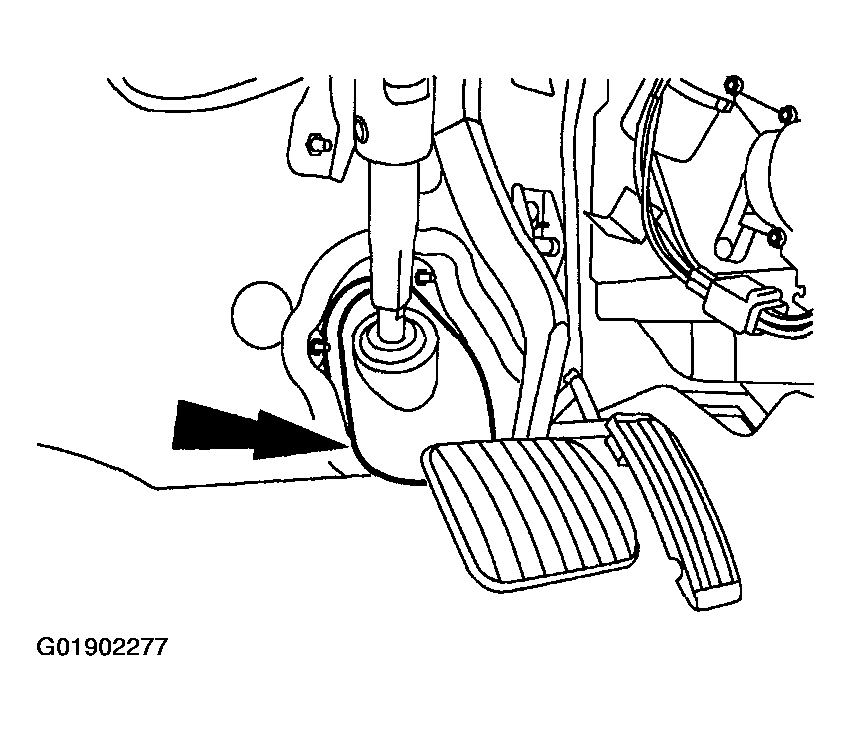

Fig 1: Positioning Boot
G01902277Courtesy of MAZDA MOTORS CORP.
  1. Position the boot aside.

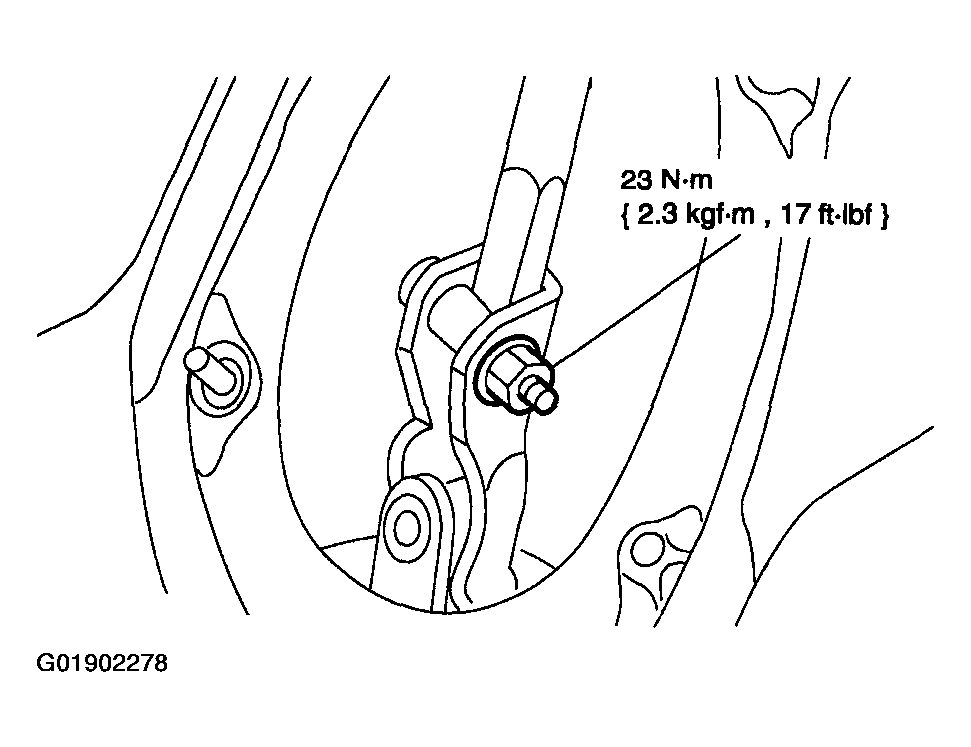

    Fig 2: Loosening Pinch Bolt/Nut
    G01902278Courtesy of MAZDA MOTORS CORP.
  2. Loosen the pinch bolt/nut and disconnect the steering column shaft from the flexible coupling.

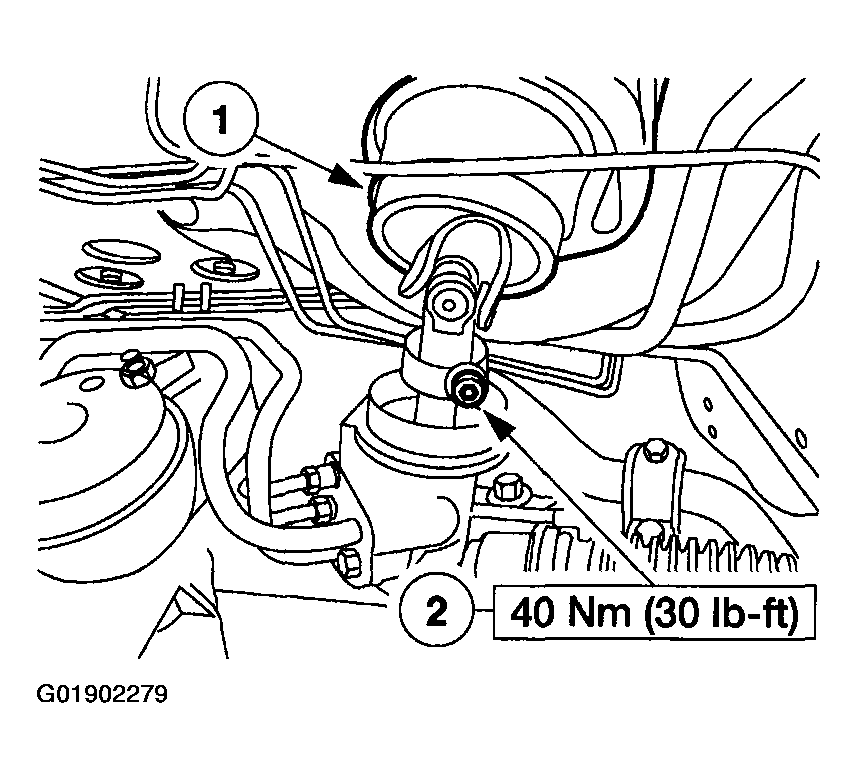

    Fig 3: Removing Steering Gear Coupling
    G01902279Courtesy of MAZDA MOTORS CORP.
  3. Remove the steering gear coupling.
    1. Position aside the rubber boot.
    2. Remove the pinch bolt.
  4. To install, reverse the removal procedure.
