Removal and Installation

Disconnect the battery negative cable.

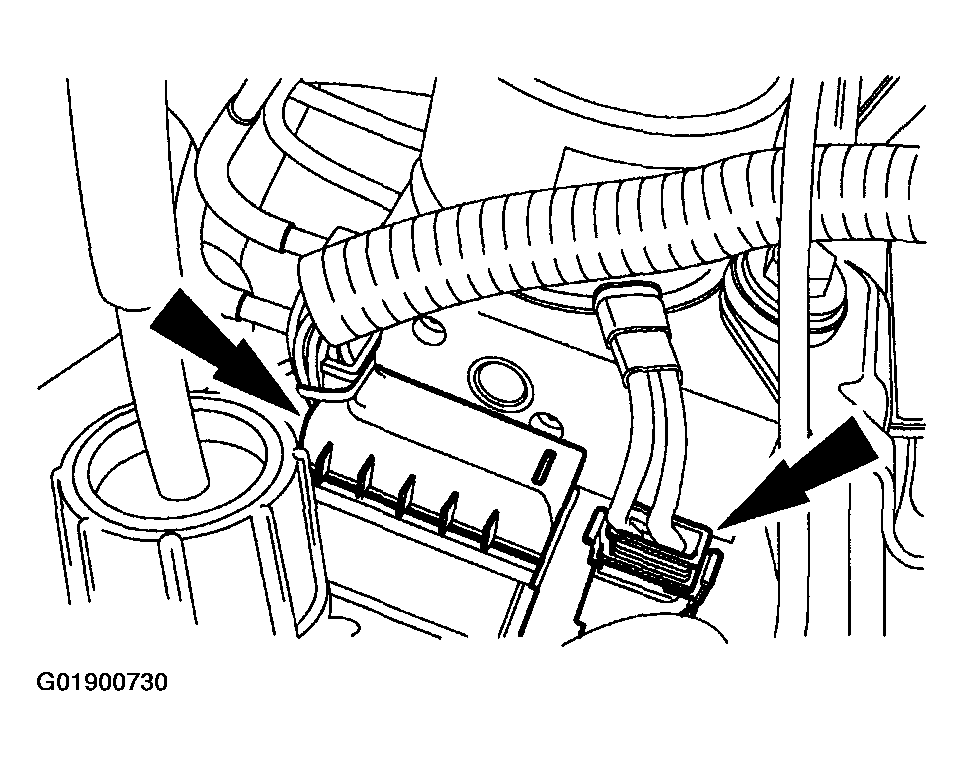

Fig 1: Disconnecting Electrical Connectors
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connectors.
Raise and support the vehicle.

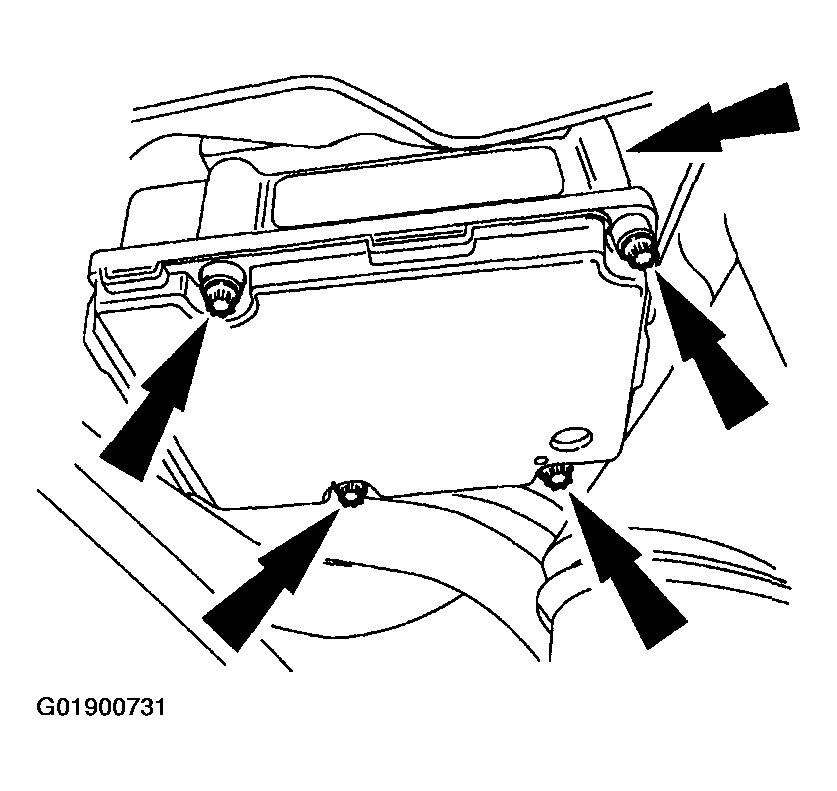

Fig 2: Removing Screws And Control Module
Courtesy of MAZDA MOTORS CORP.
Remove the screws and the control module.
NOTE:
- The 4x2 and 4x4 modules are not interchangeable. Before installing a module, verify its application.
To install, reverse the removal procedure.
