Removal and Installation

Remove the wheel and tire. Refer to WHEEL AND TIRE .

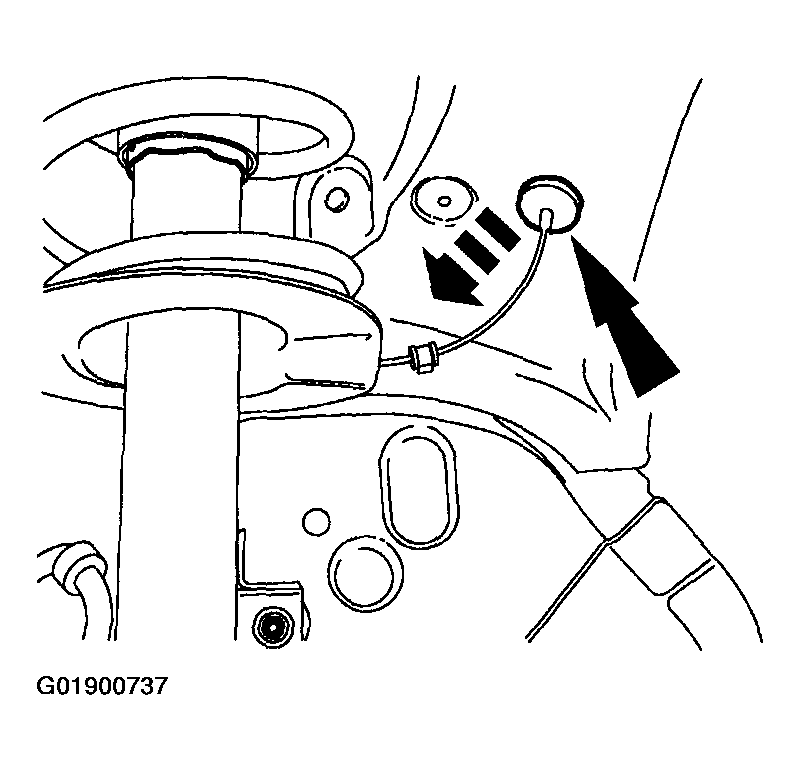

Fig 1: Detaching Grommet From Body And Pulling Connector Through Hole
Courtesy of MAZDA MOTORS CORP.
Detach the grommet from the body and pull the connector through the hole.

Fig 2: Disconnecting Sensor Wiring - Front Sensor
Courtesy of MAZDA MOTORS CORP.
Disconnect the sensor wiring.

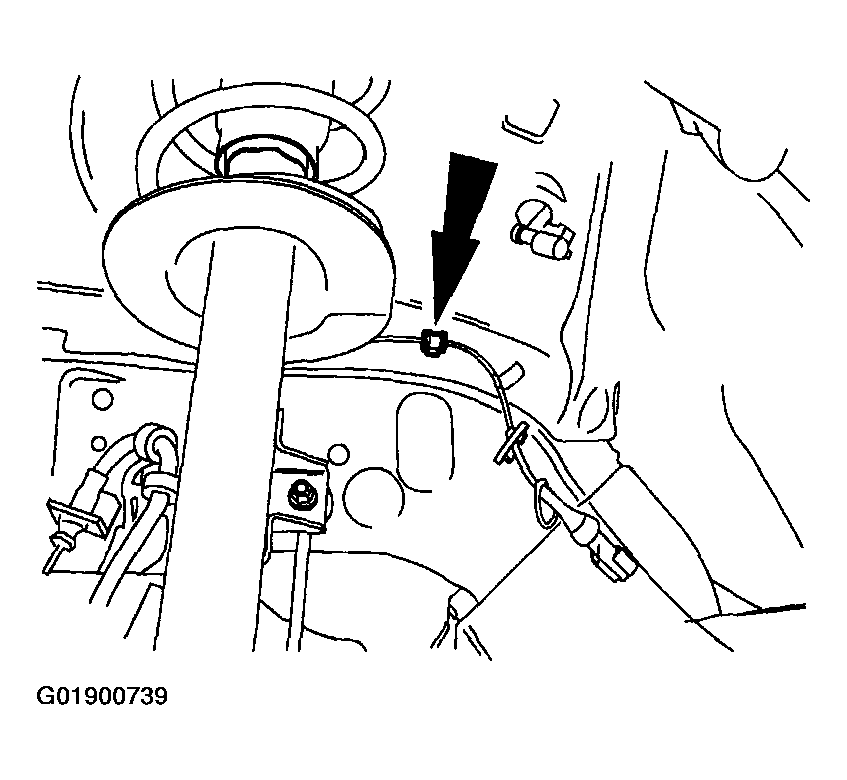

Fig 3: Detaching Retainer - Front Sensor
Courtesy of MAZDA MOTORS CORP.
Detach the retainer.

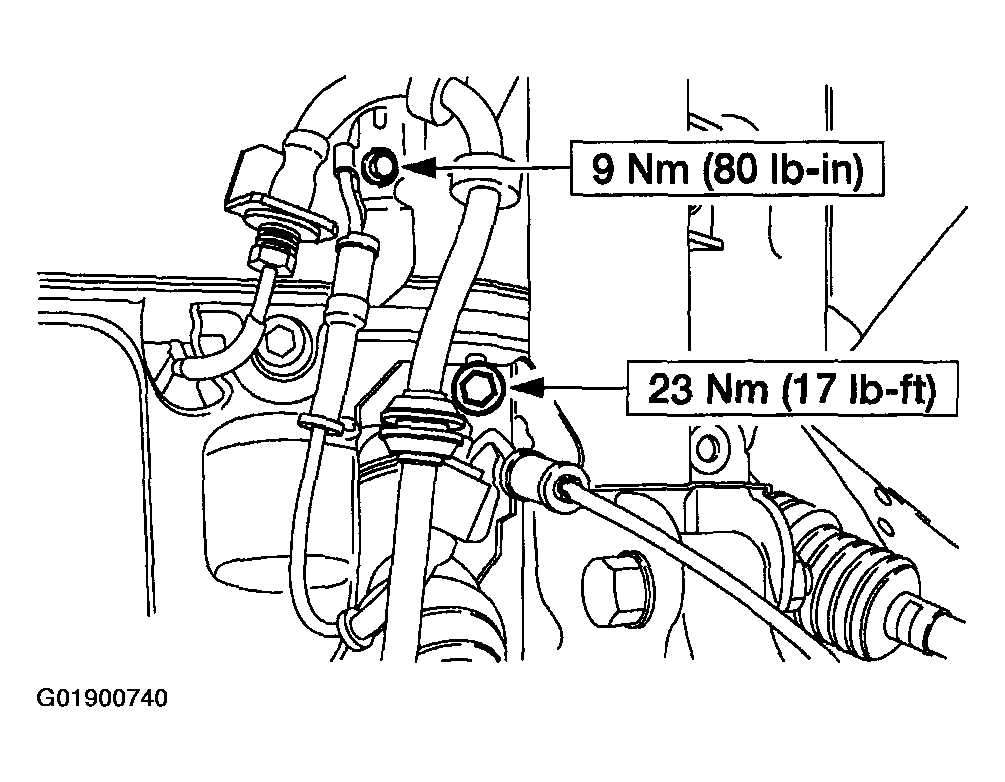

Fig 4: Removing Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

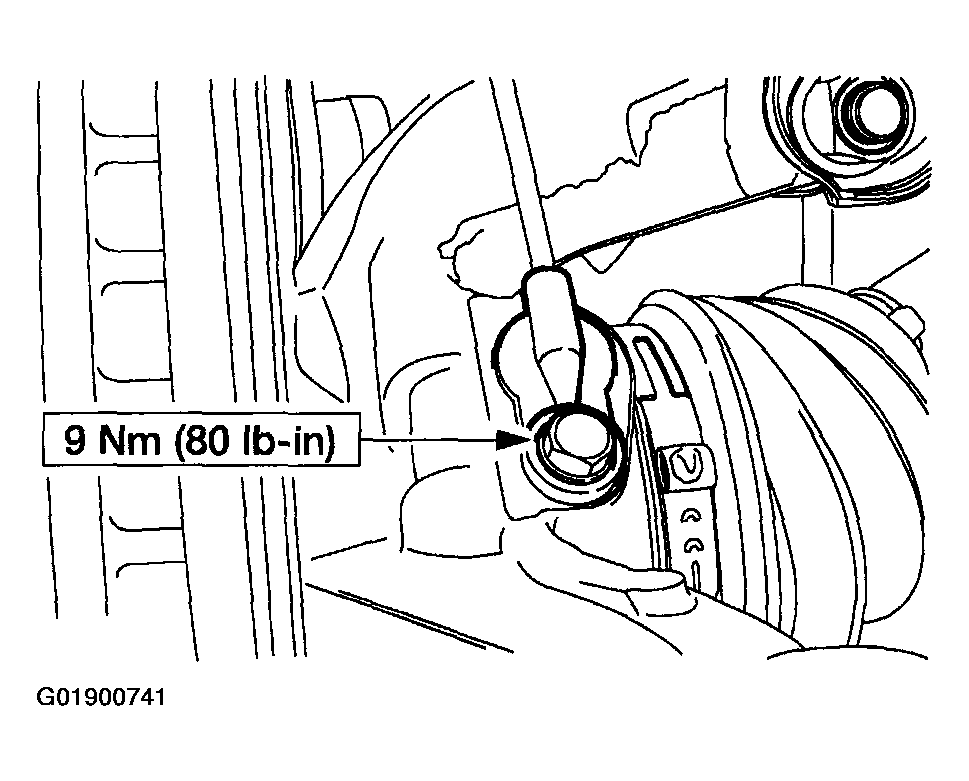

Fig 5: Removing Bolt And Sensor
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Clean off any dirt that may have collected around the sensor before removal.
Remove the bolt and the sensor.
NOTE:
- Thoroughly clean the mounting surface.
To install, reverse the removal procedure.
