Climate Control Unit Installation
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
- Install the climate control unit to the center panel.

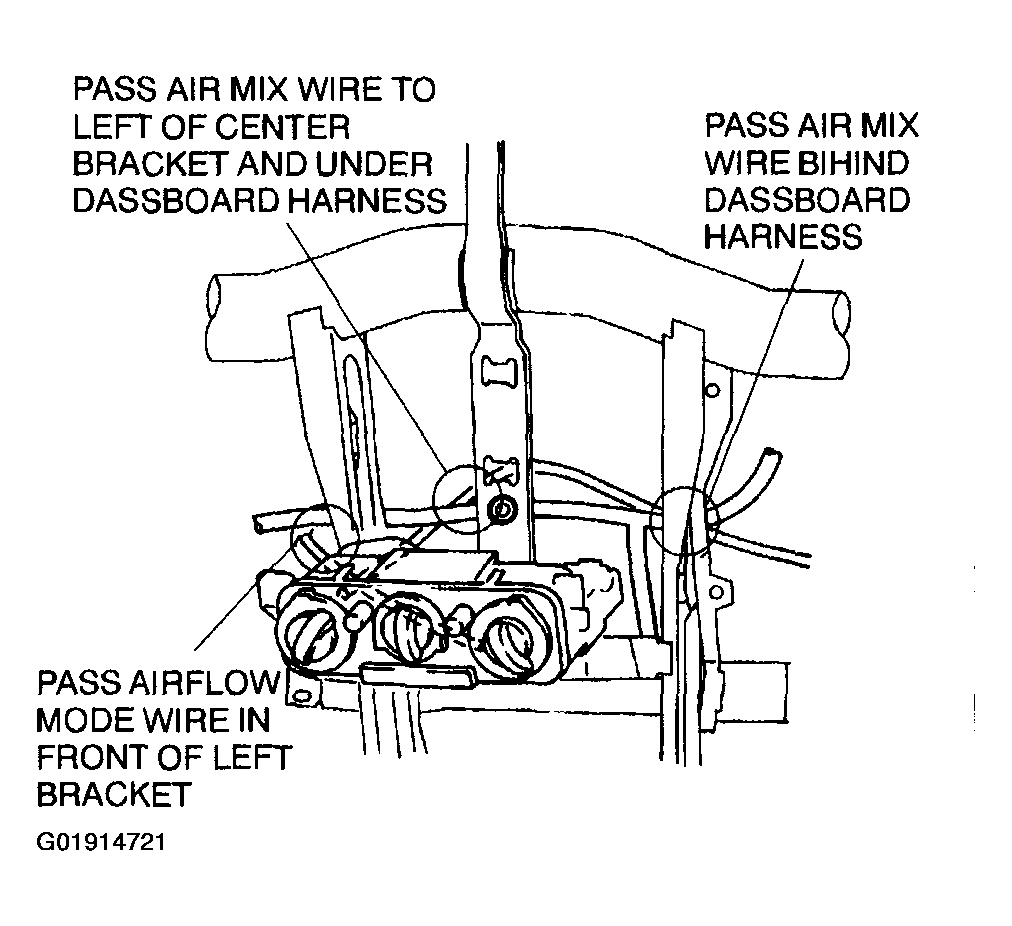

- Pass each wire through the following routes then connect to each unit.
- Connect the climate control unit connectors.
- Install the center panel.
- Adjust the climate control unit wire. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT .)
- Connect the negative battery cable.
