Climate Control Unit Removal
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Disconnect the air mix and airflow mode wires from each wire clamp and link.
- Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION .)

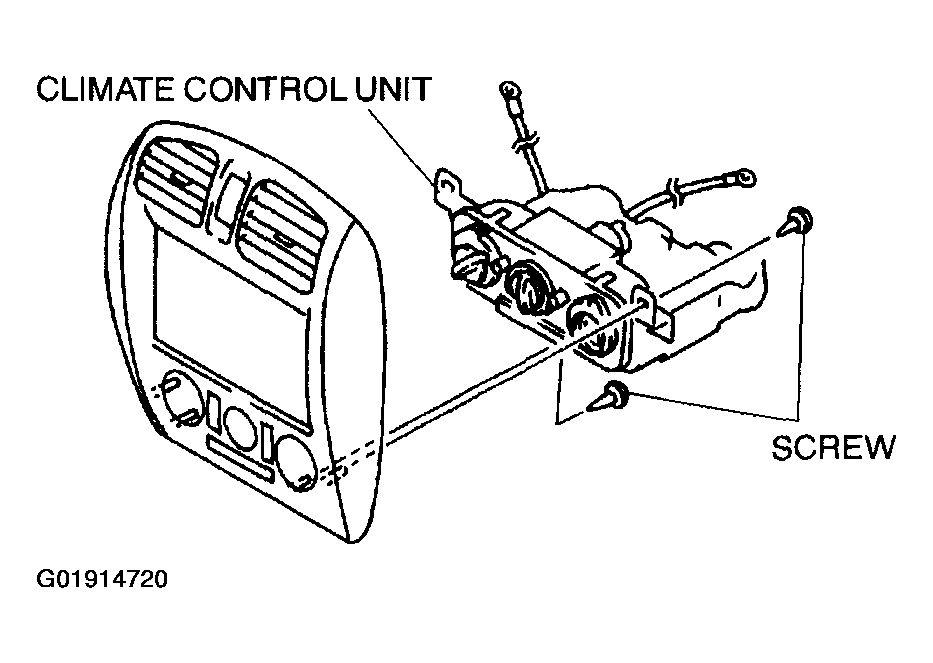

- Remove the screws and the climate control unit.
