Lower Module Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the audio unit. (See AUDIO UNIT REMOVAL .)
Remove in the order indicated in the figure.

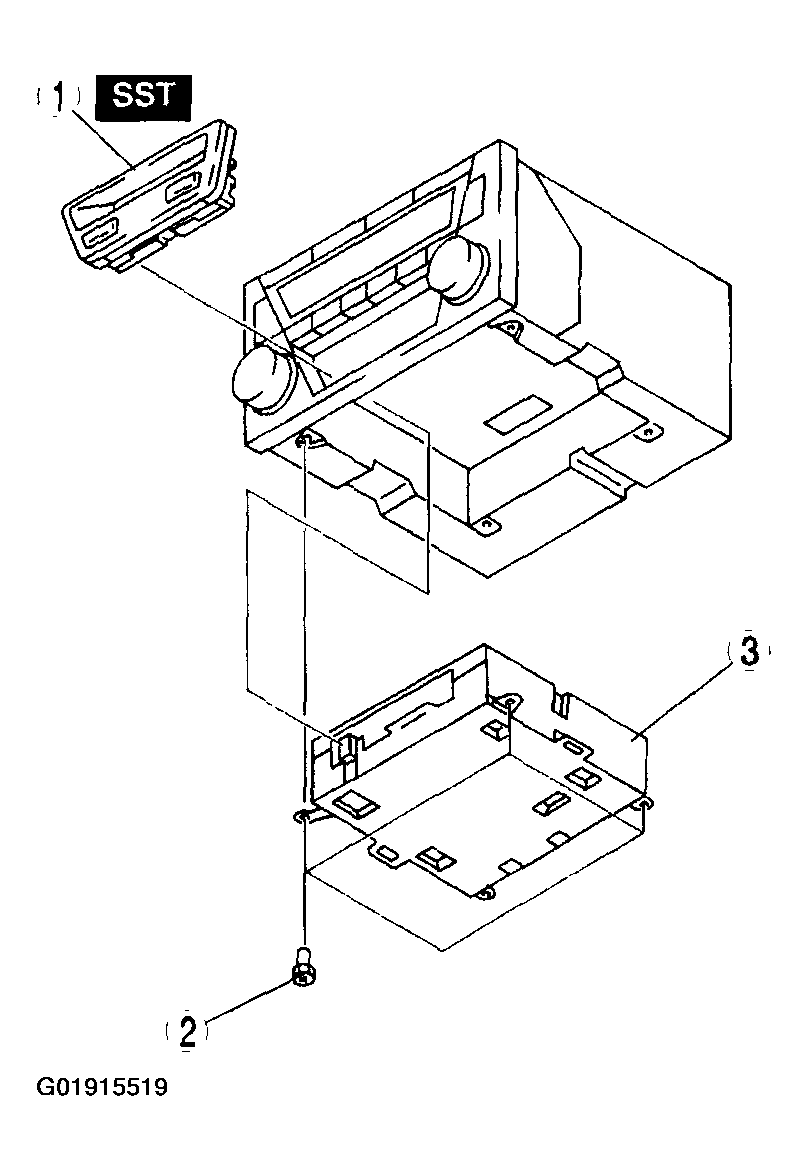

Fig 1: Lower Module Removing Sequence Index
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing Lower Module
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
