Front Alignment Specifications

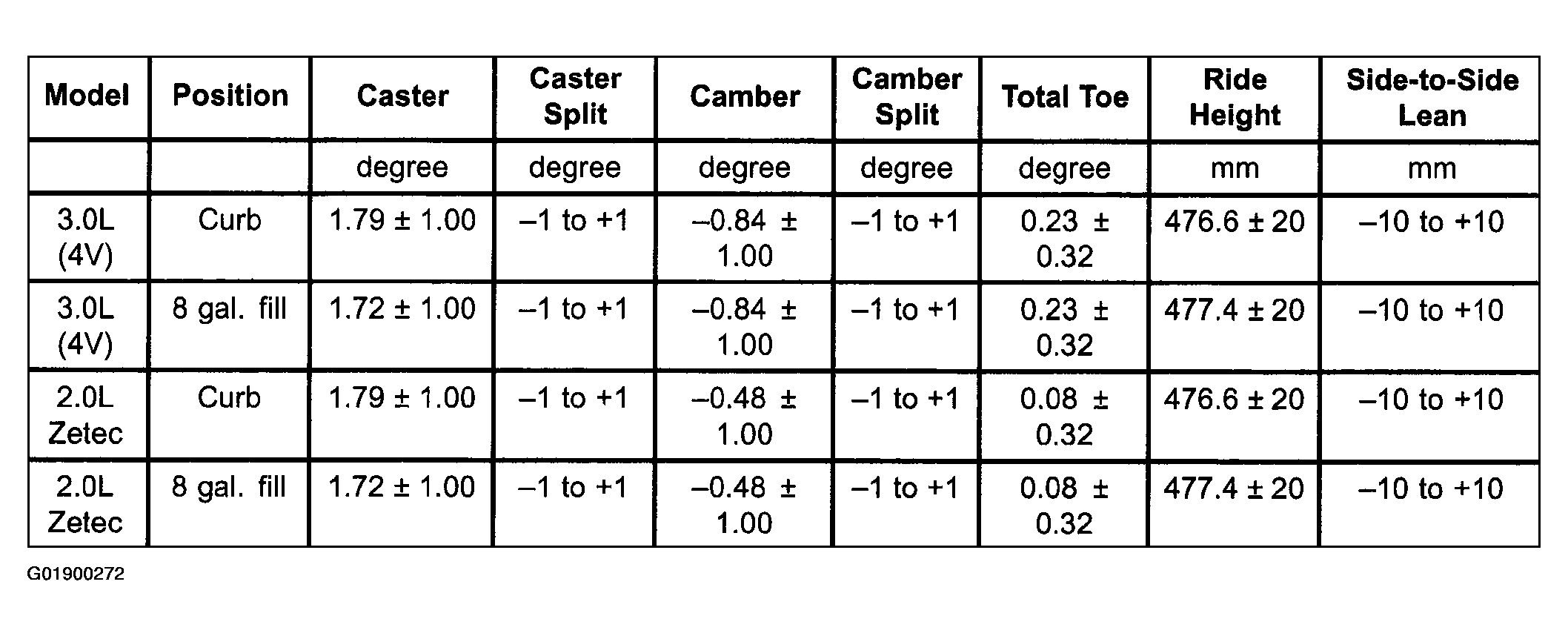

Fig 1: Front Alignment Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
