Selector Lever Cable: Installation

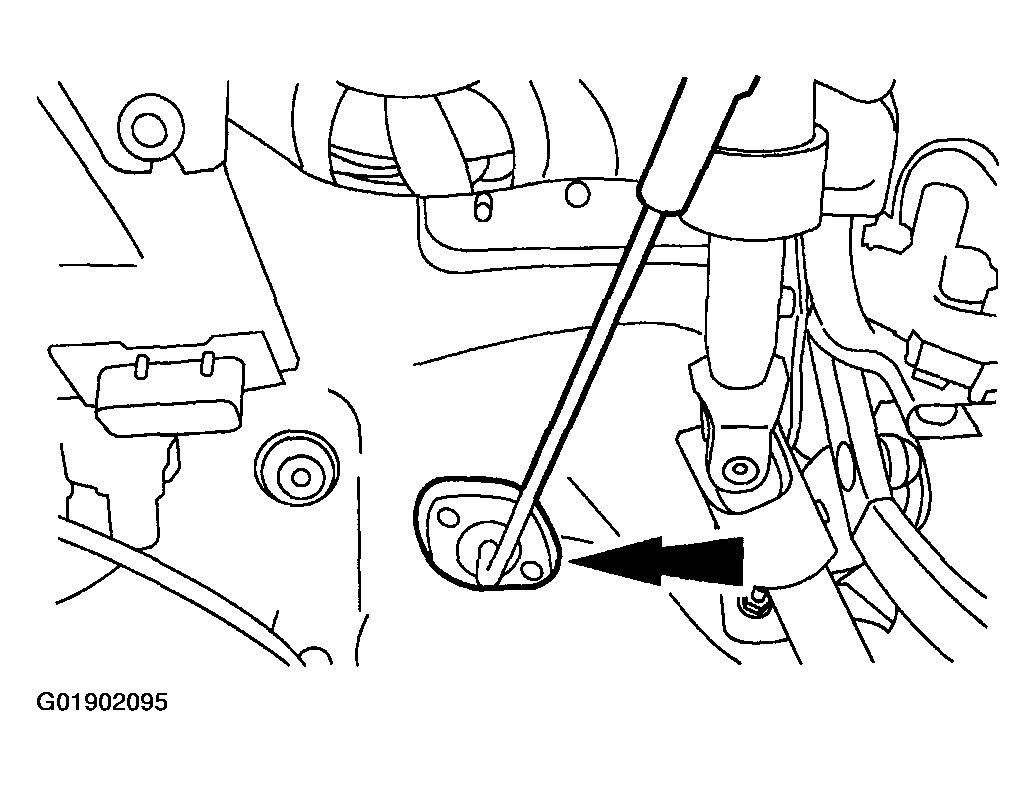

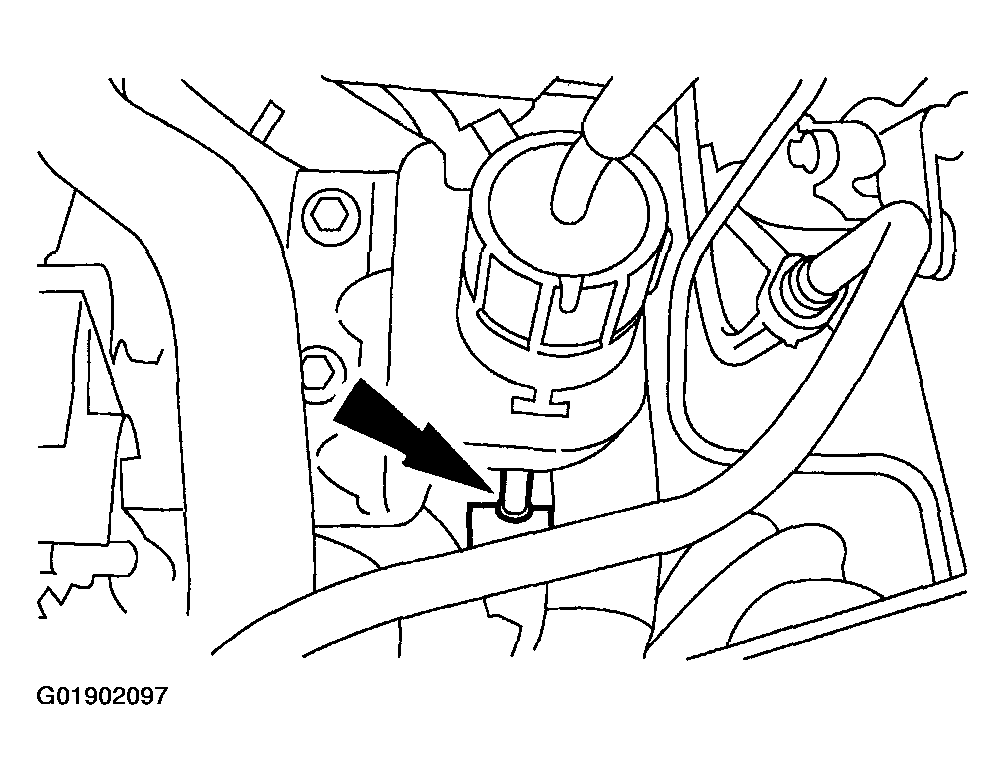

Fig 1: Installing Gearshift Cable

Courtesy of MAZDA MOTORS CORP.

Install the gearshift cable.

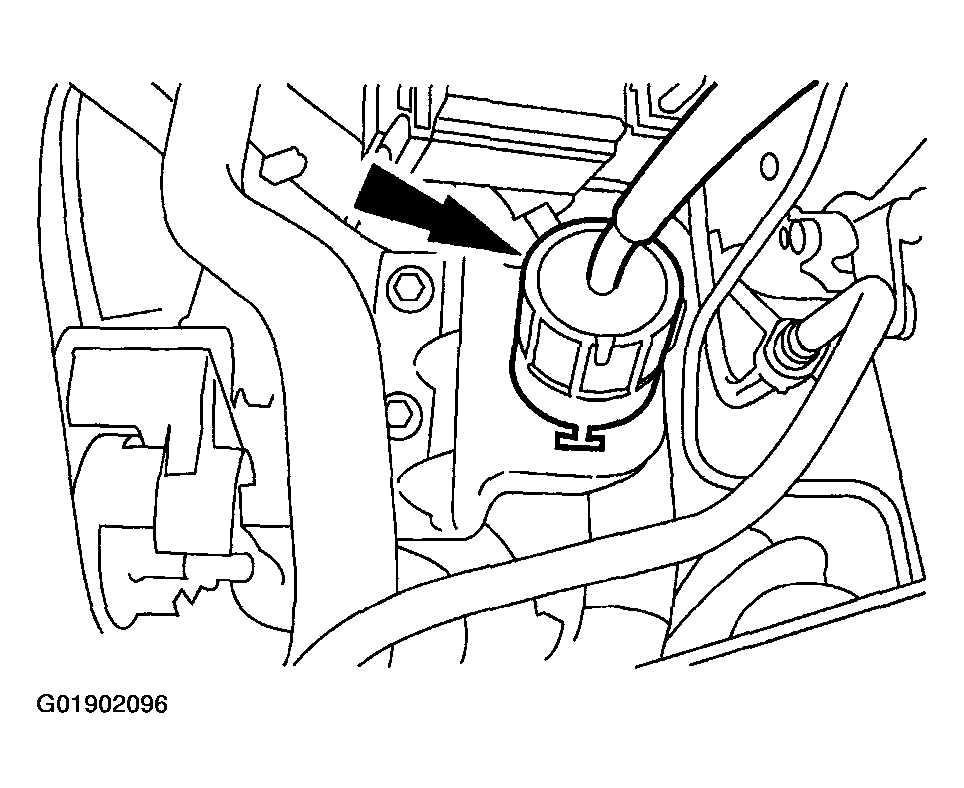

Fig 2: Installing Gearshift Cable In Bracket
Courtesy of MAZDA MOTORS CORP.
Install the gearshift cable in the bracket.

Fig 3: Connecting Gearshift Cable To Transaxle Shifter Lever
Courtesy of MAZDA MOTORS CORP.
Connect the gearshift cable to the transaxle shifter lever.

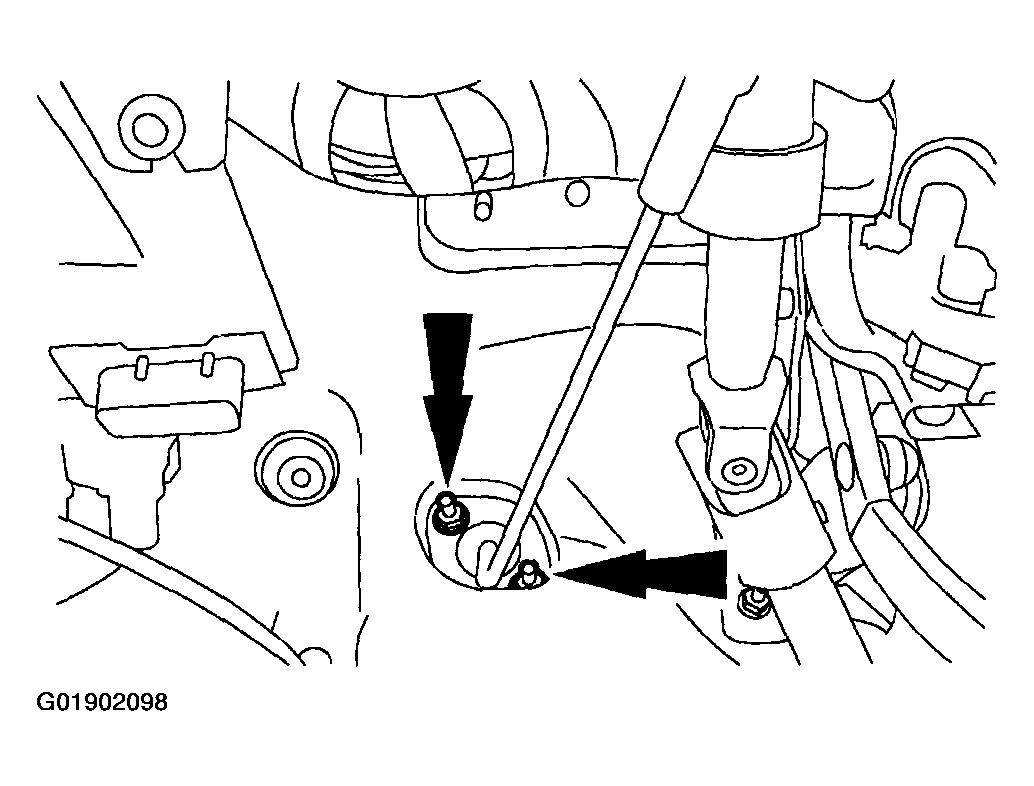

Fig 4: Installing Gearshift Cable Nuts
Courtesy of MAZDA MOTORS CORP.
Install the gearshift cable nuts.

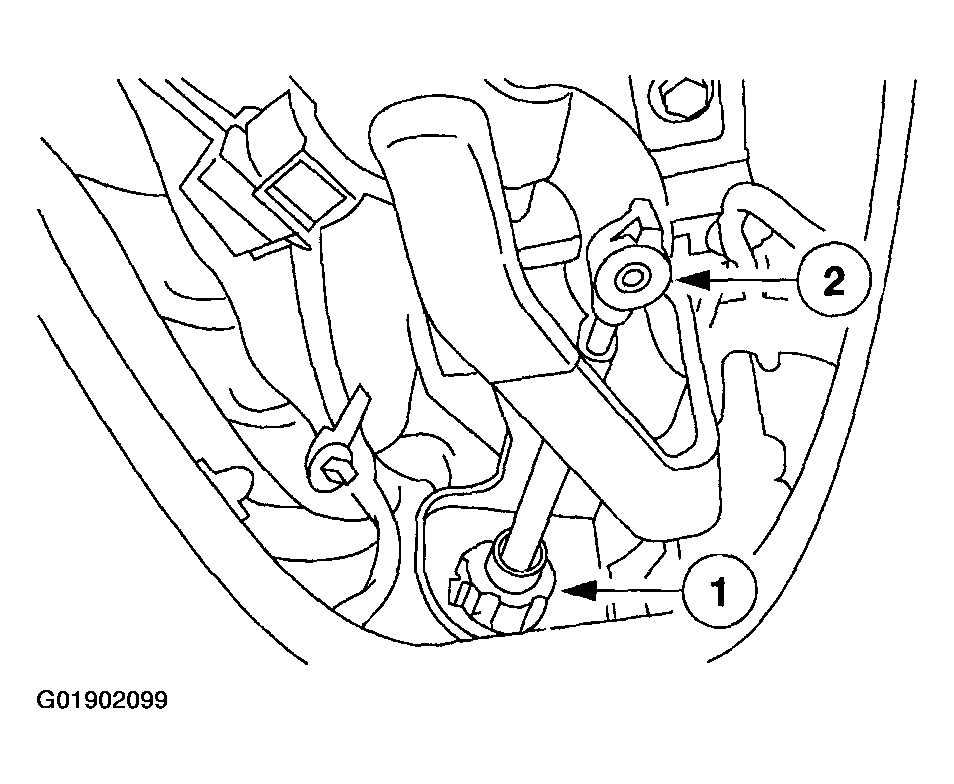

Fig 5: Connecting Gearshift Cable To Gearshift Lever
Courtesy of MAZDA MOTORS CORP.
Connect the gearshift cable to the gearshift lever.
1. Attach the gearshift cable to the steering column bracket.
2. Connect the gearshift cable to the gearshift lever.

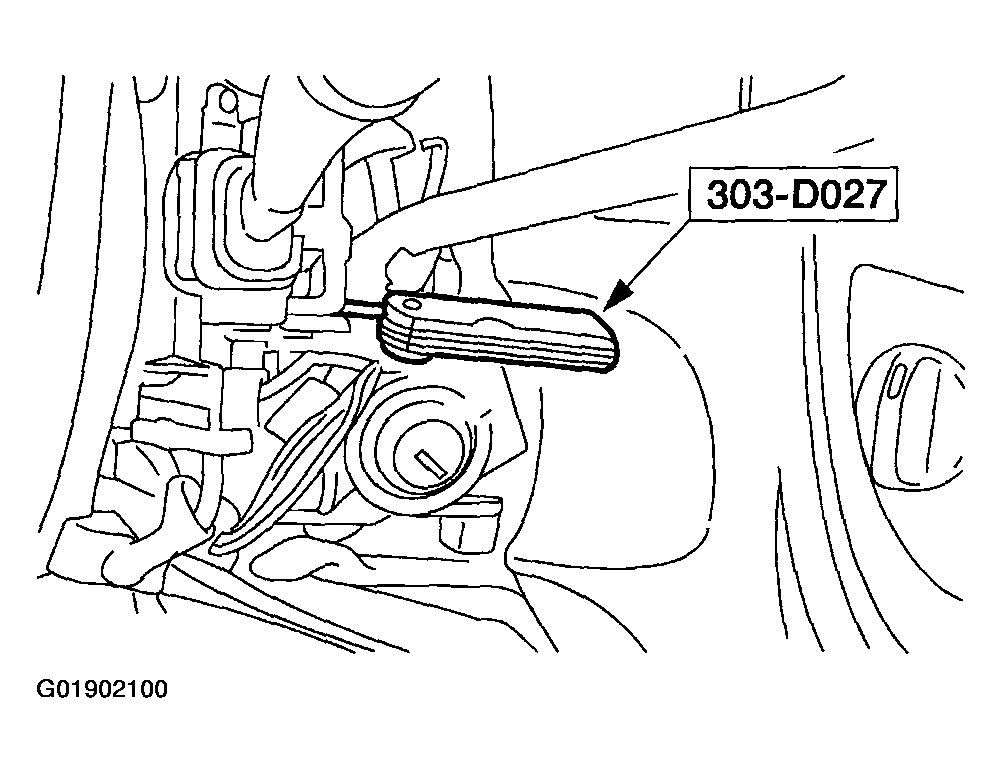

  Fig 6: Positioning Feeler Gauge Between Gearshift Lever Selector And Gearshift Lever Detent
  Courtesy of MAZDA MOTORS CORP.
Position a 0.6 mm (0.023 in) feeler gauge between the gearshift lever selector and the gearshift lever detent.
Place the gearshift lever in the DRIVE position and hang a 1.4 kg (3 lb) weight from the gearshift lever.

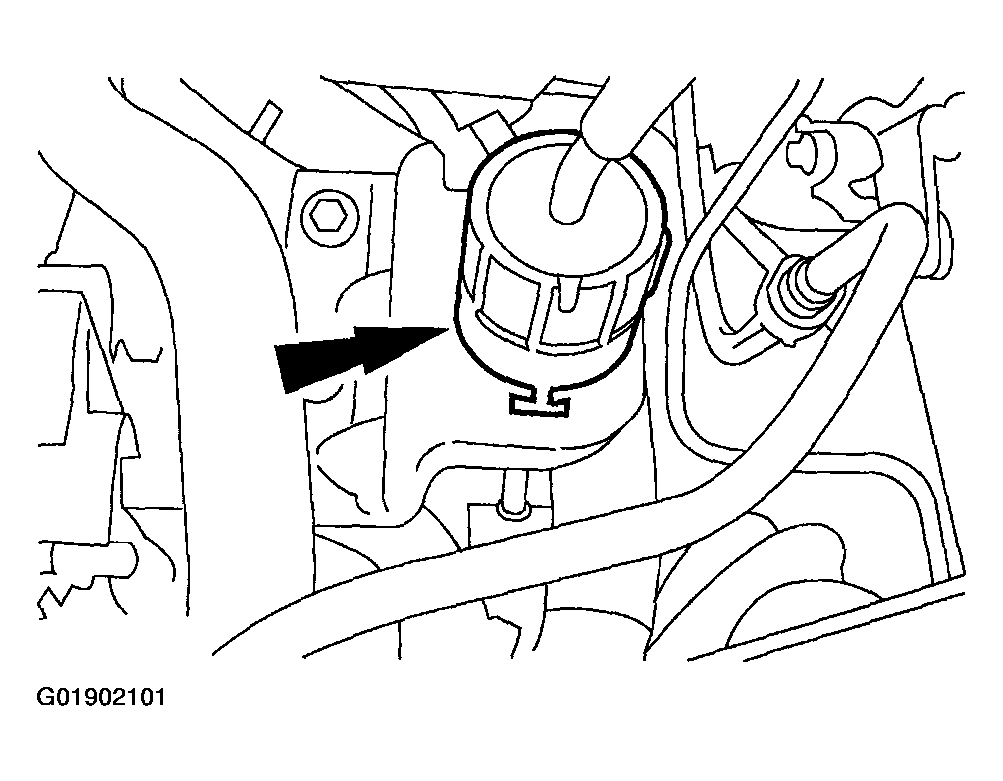

Fig 7: Loosening Gearshift Cable Adjuster To Adjust Cable
Courtesy of MAZDA MOTORS CORP.
Loosen the gearshift cable adjuster to adjust the cable then tighten.

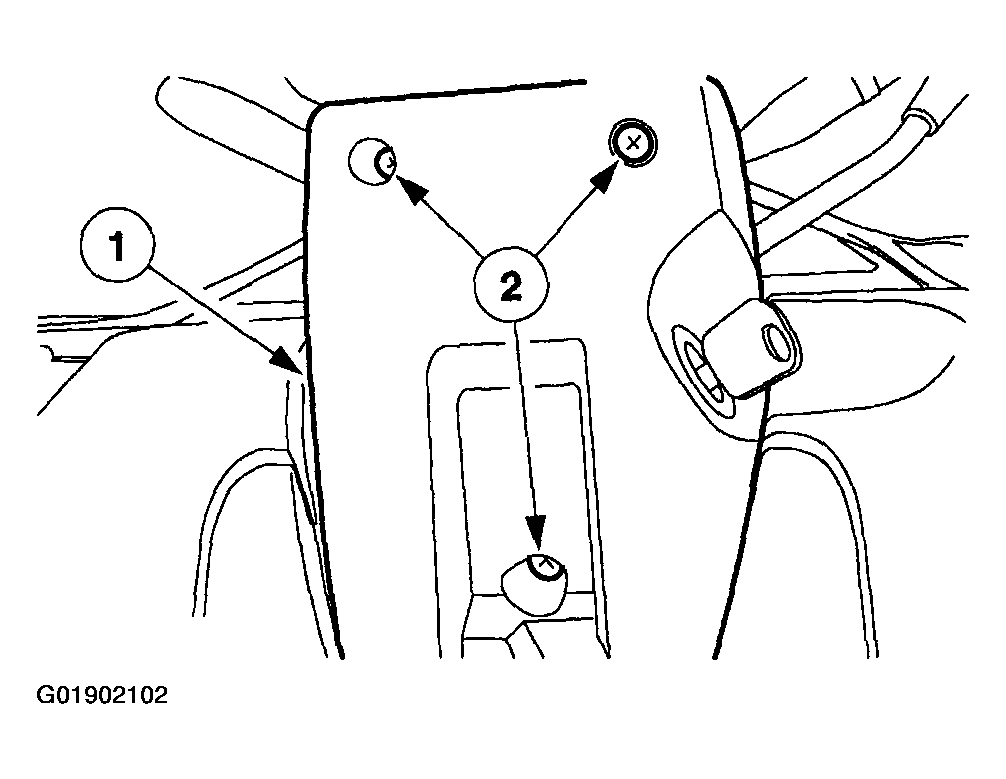

Fig 8: Installing Lower Steering Column Shroud
Courtesy of MAZDA MOTORS CORP.
Install the lower steering column shroud.
1. Position the lower steering column shroud.
2. Install the screws.

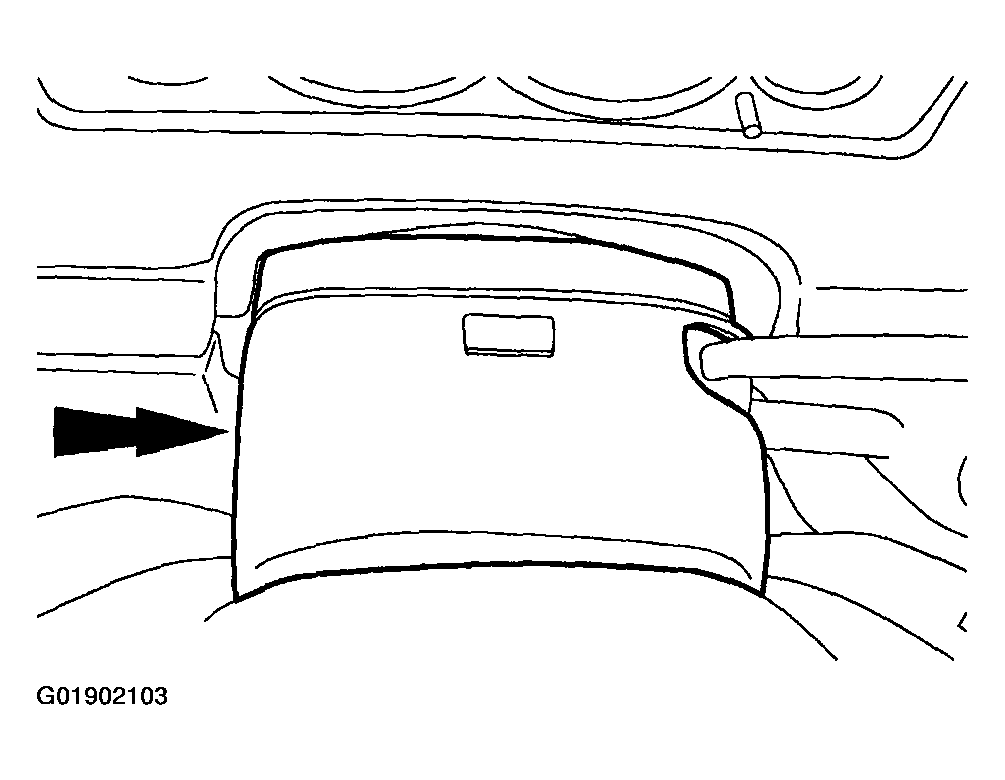

  Fig 9: Installing Upper Steering Column Shroud
  Courtesy of MAZDA MOTORS CORP.
Install the upper steering column shroud.
