Control System (Except For CALIFORNIA Emission Regulation Applicable Model Includes Automatic Transaxle Control Information)

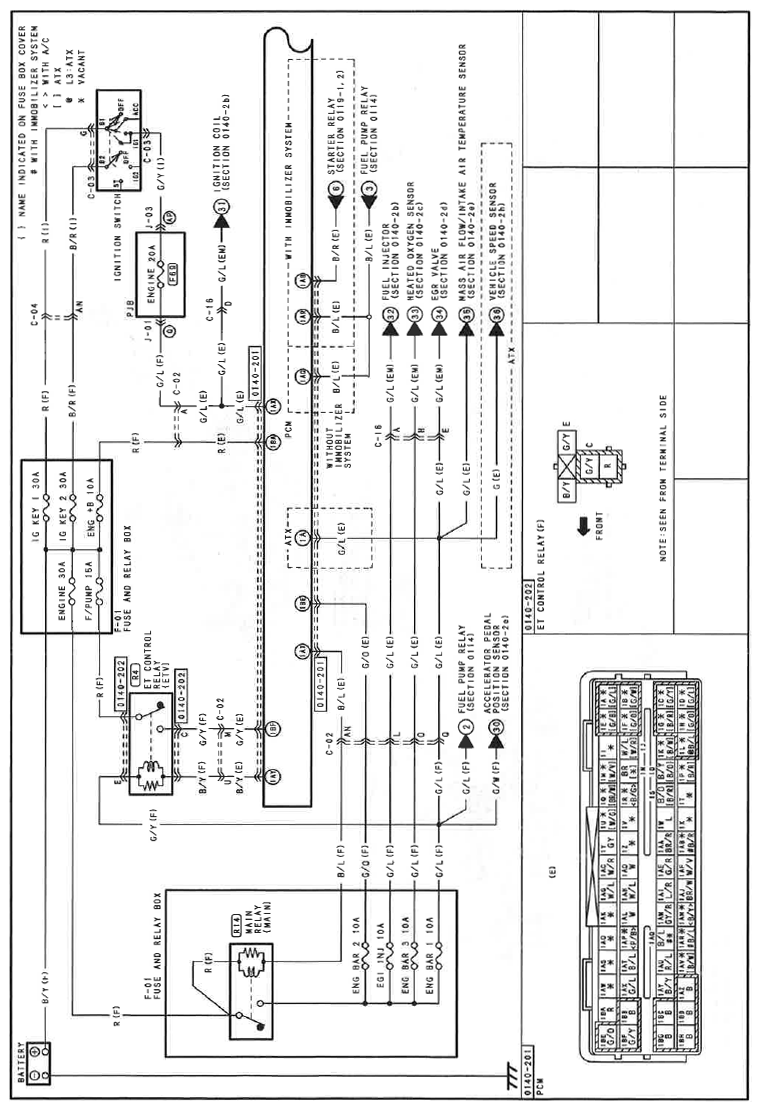

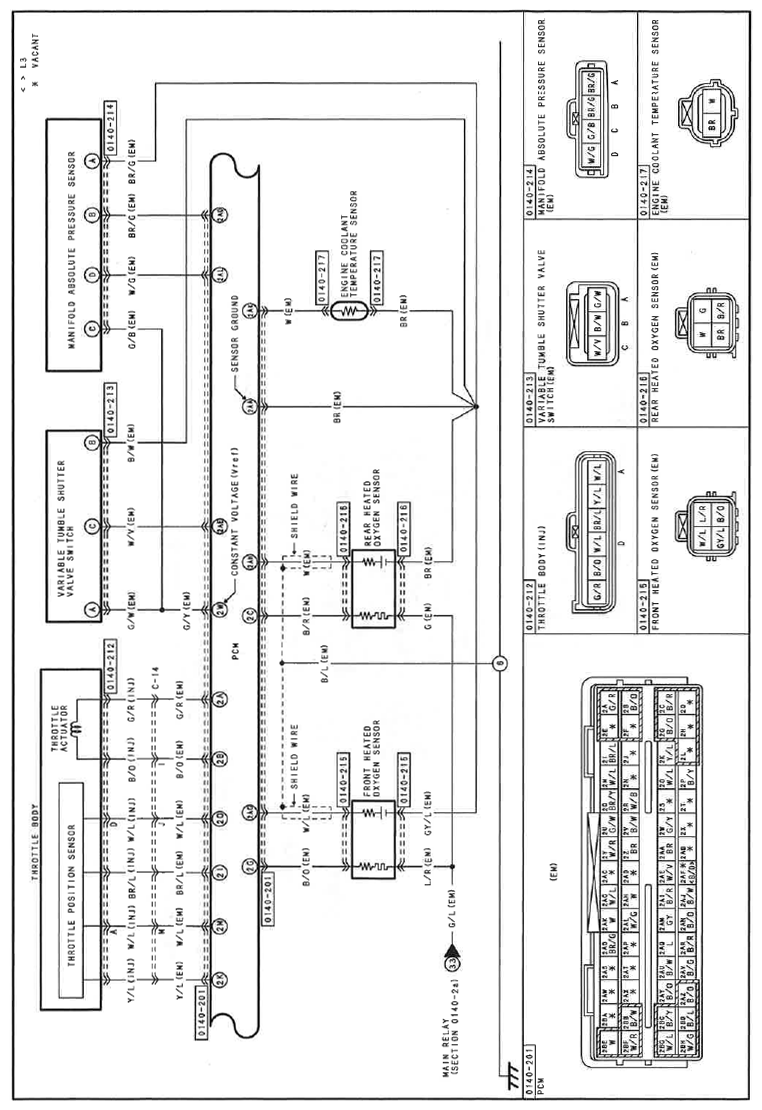

Fig 1: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2A; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

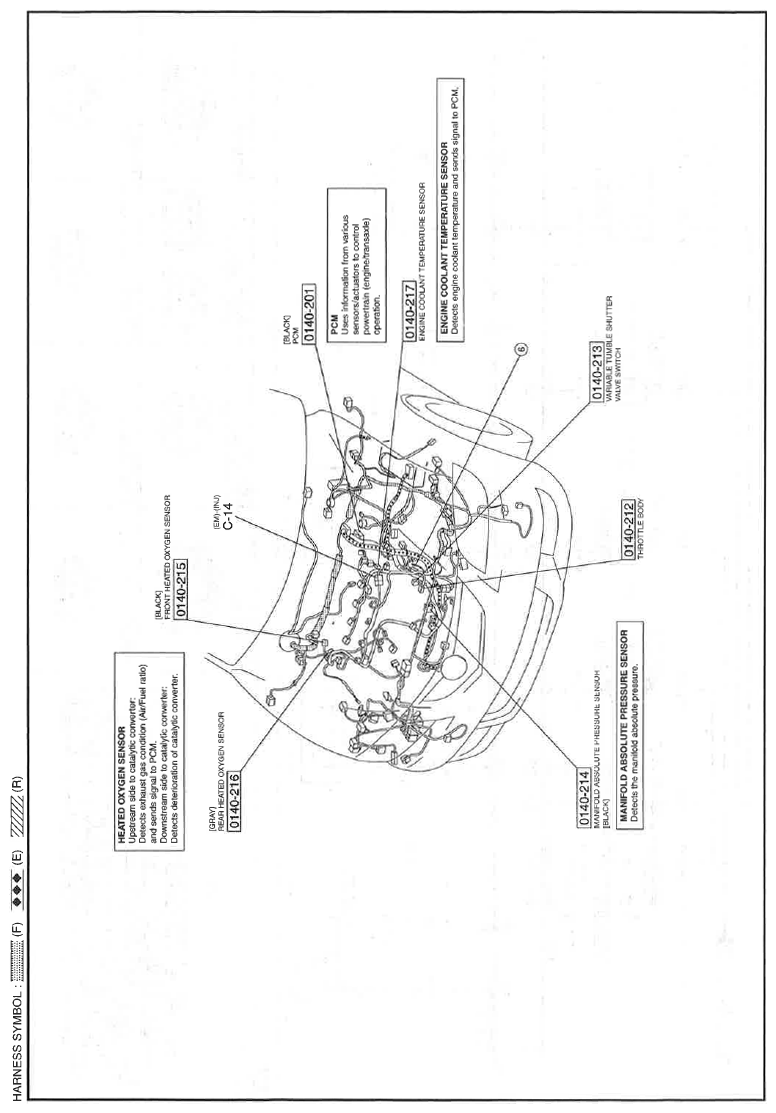

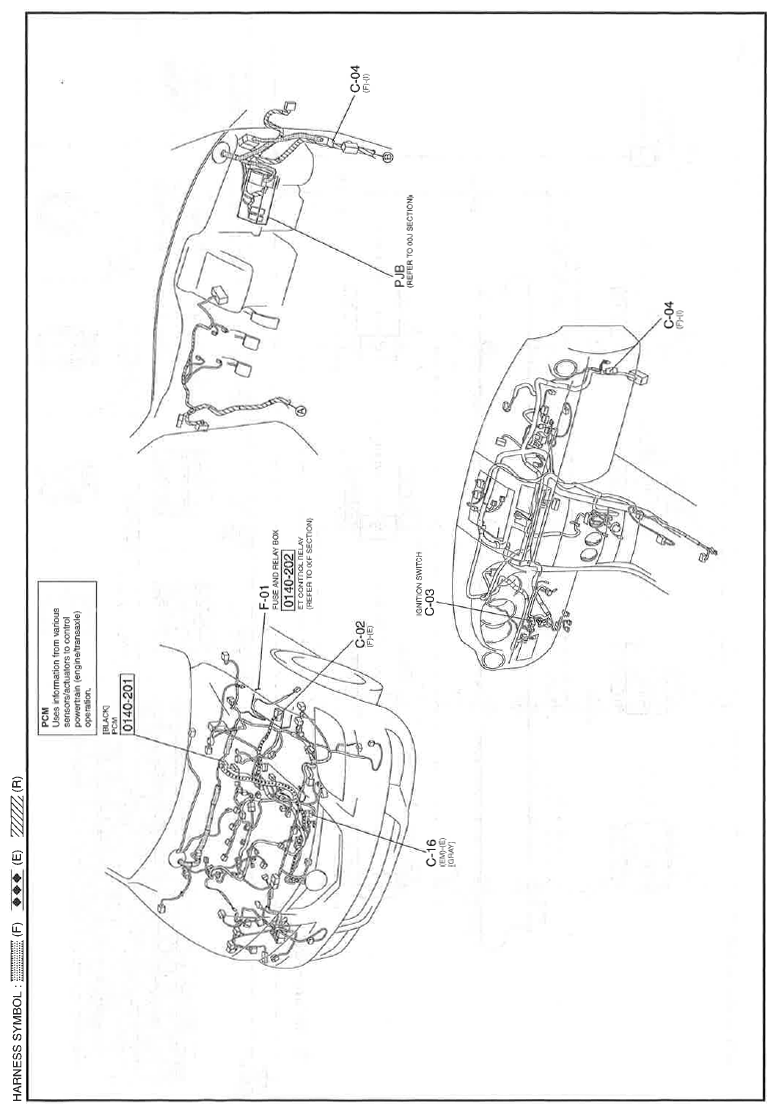

Fig 2: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2A; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

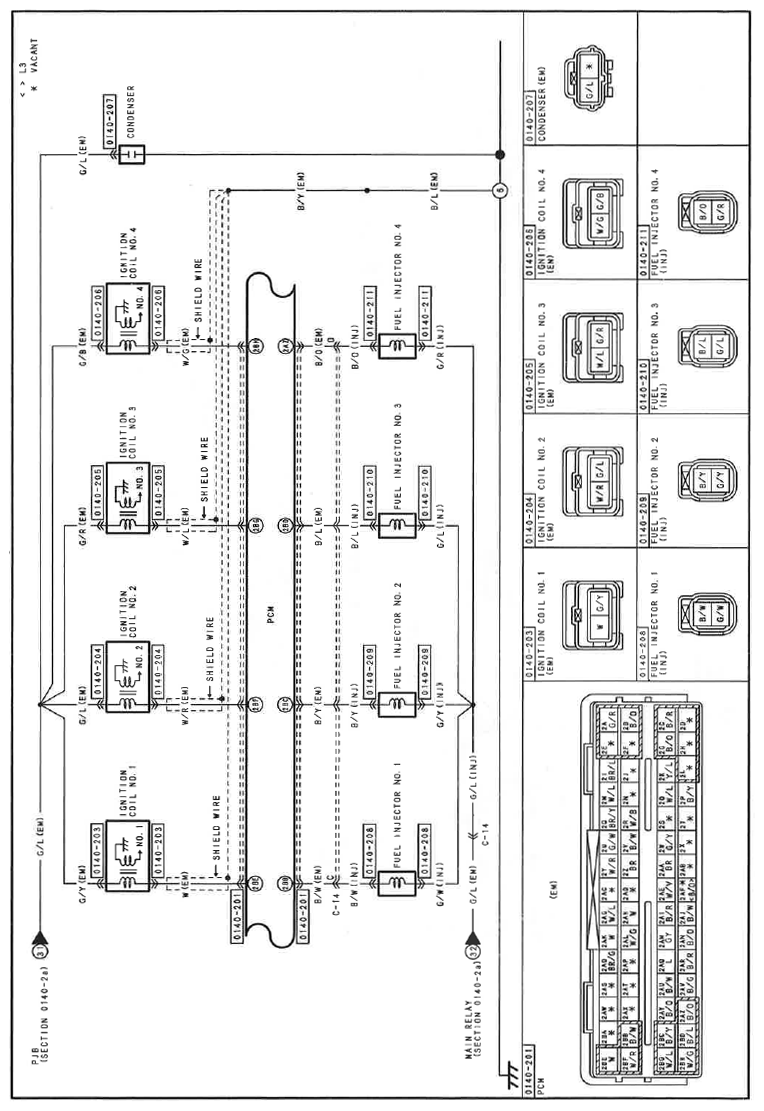

Fig 3: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2B; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

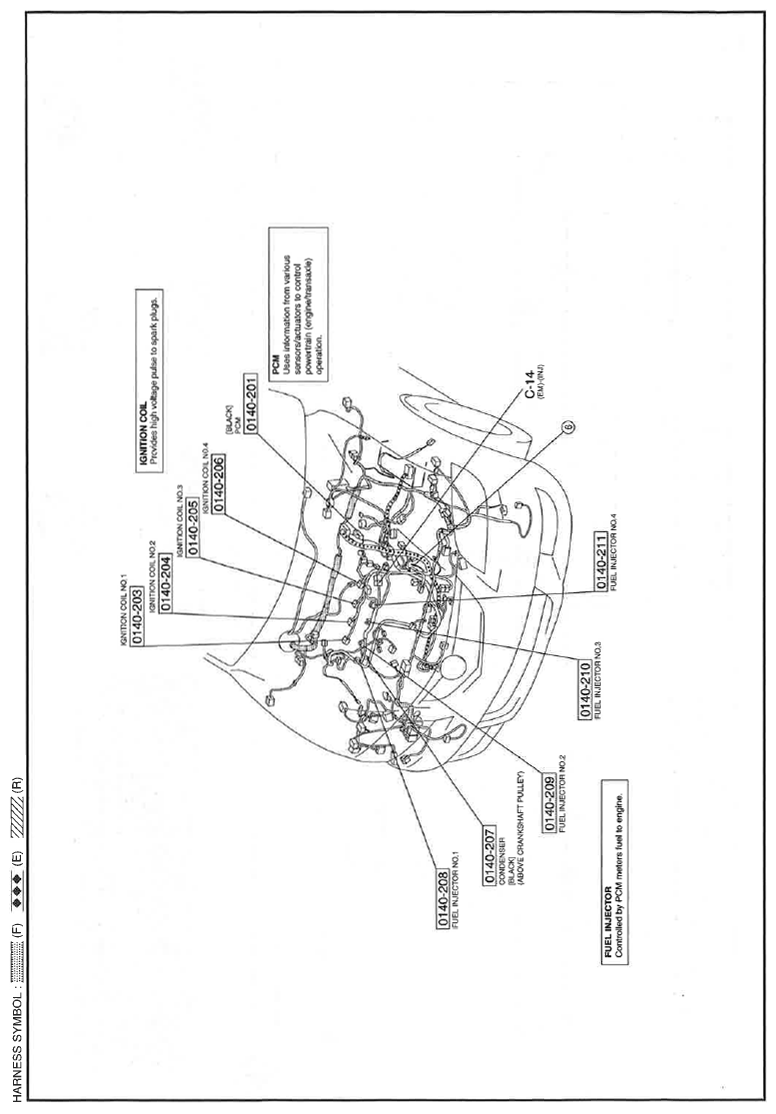

Fig 4: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2B; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

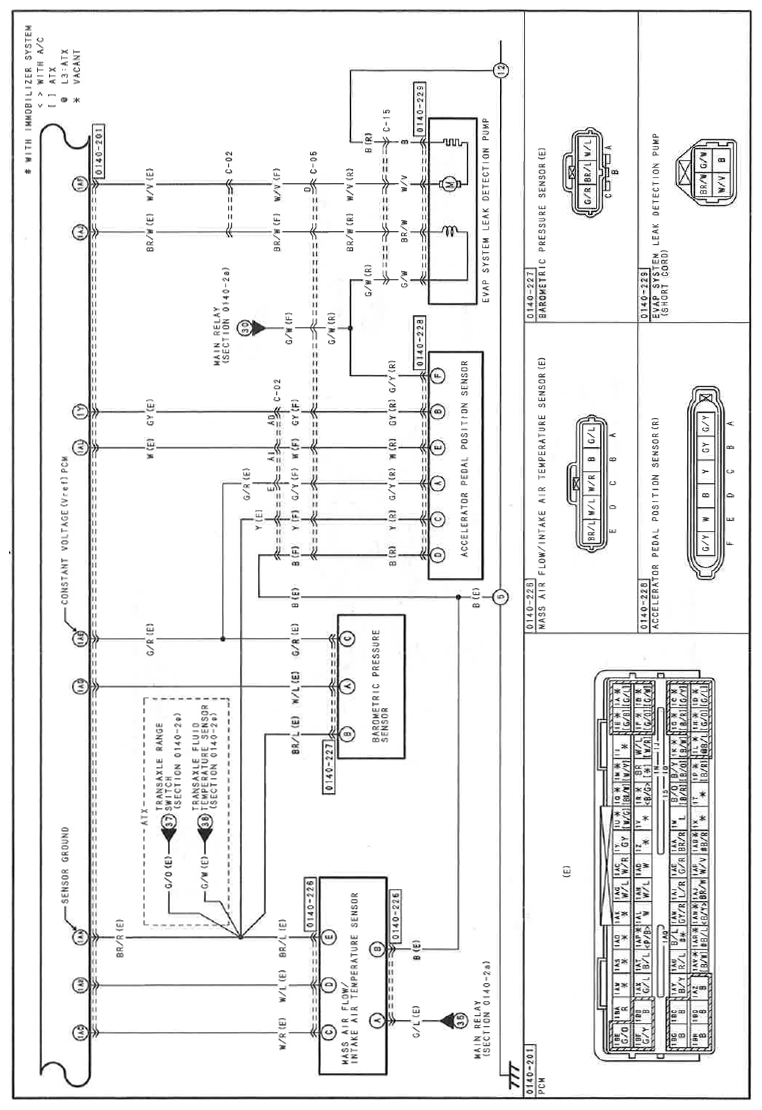

Fig 5: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2C; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2C; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

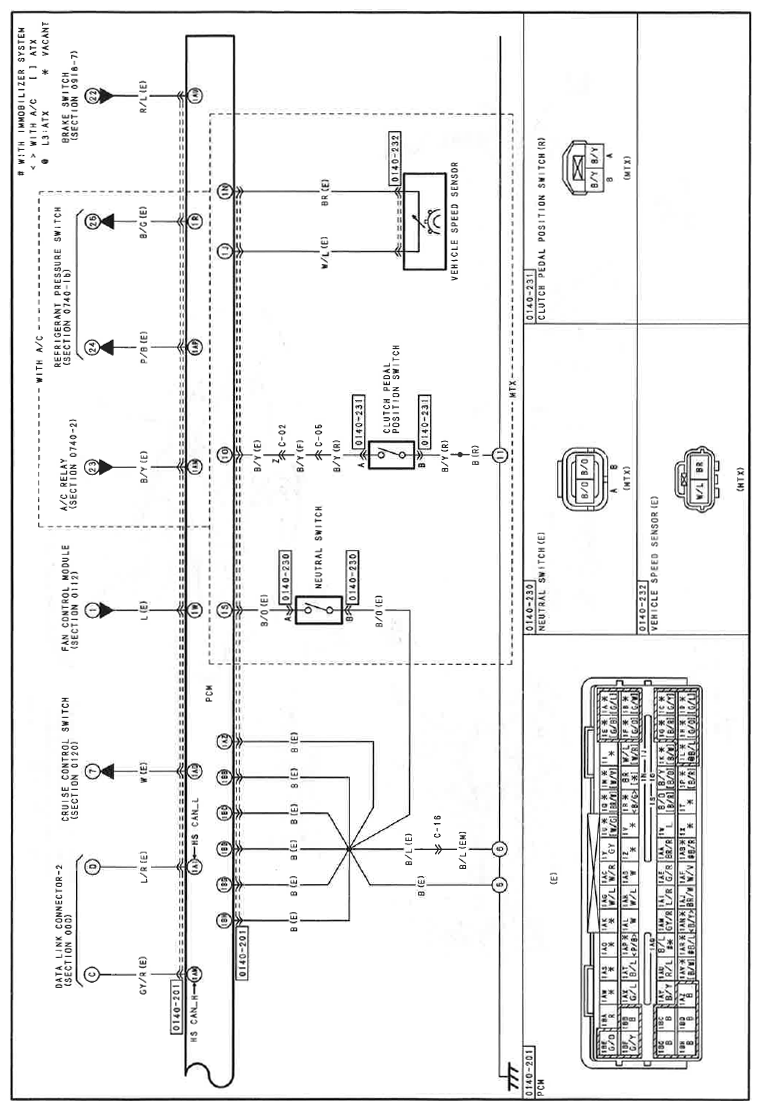

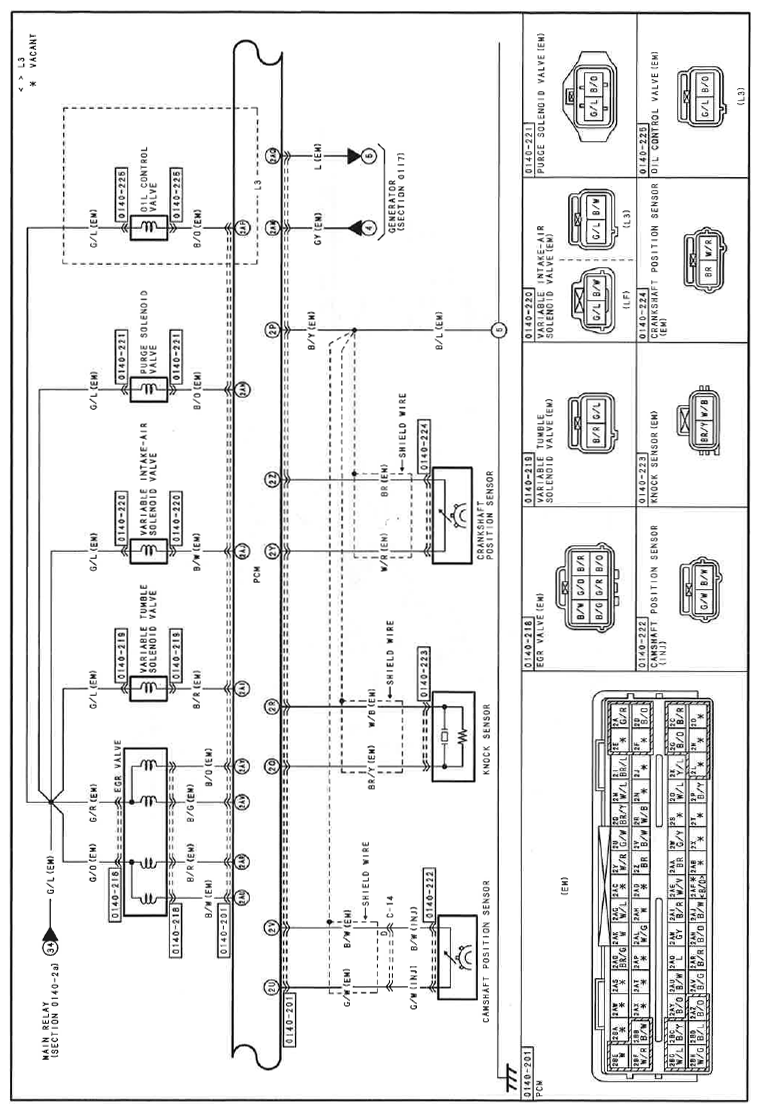

Fig 7: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2D; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

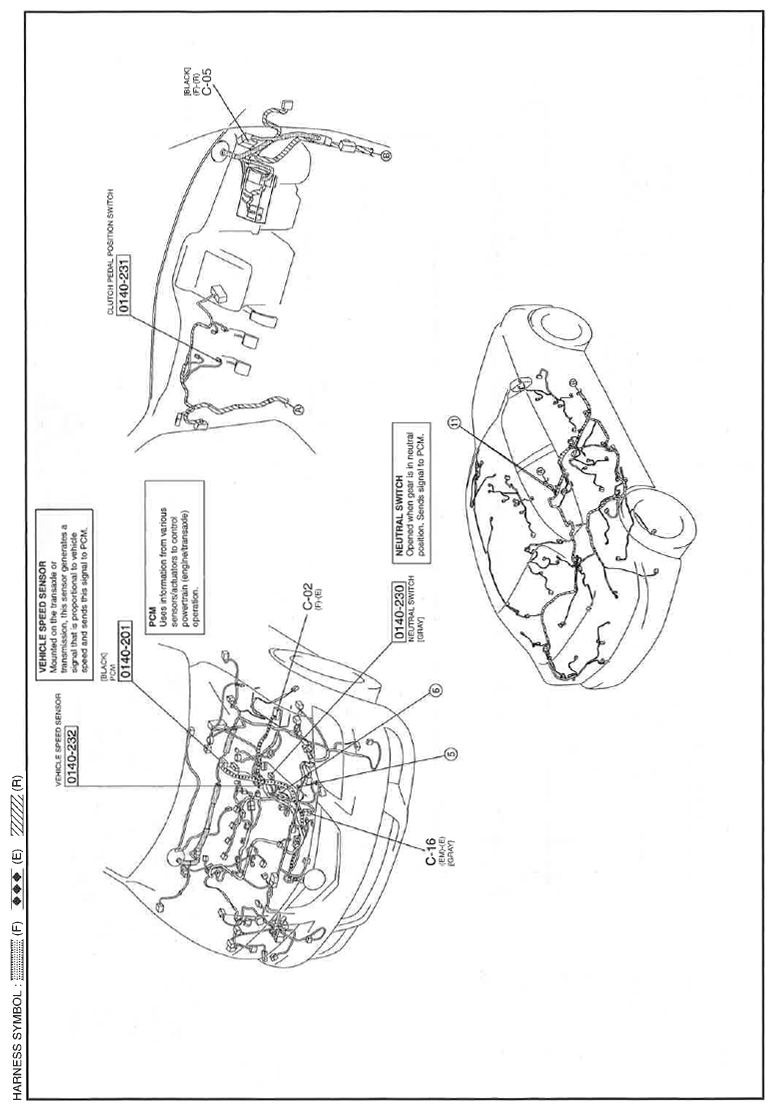

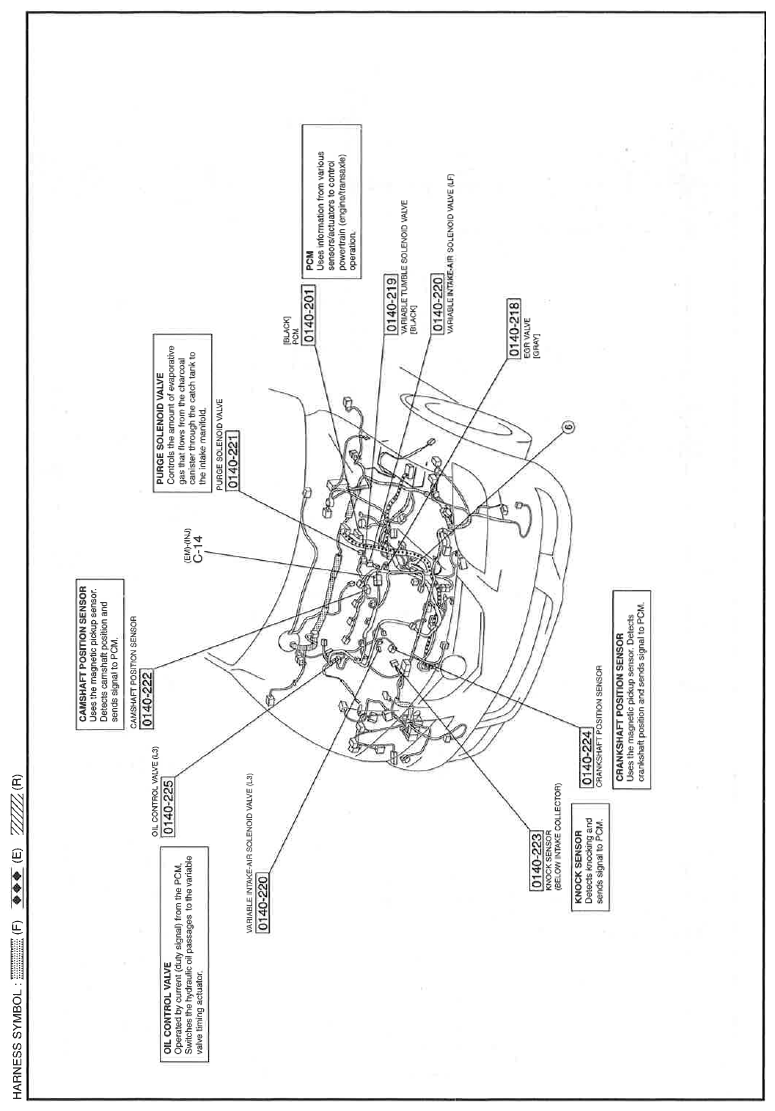

Fig 8: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2D; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

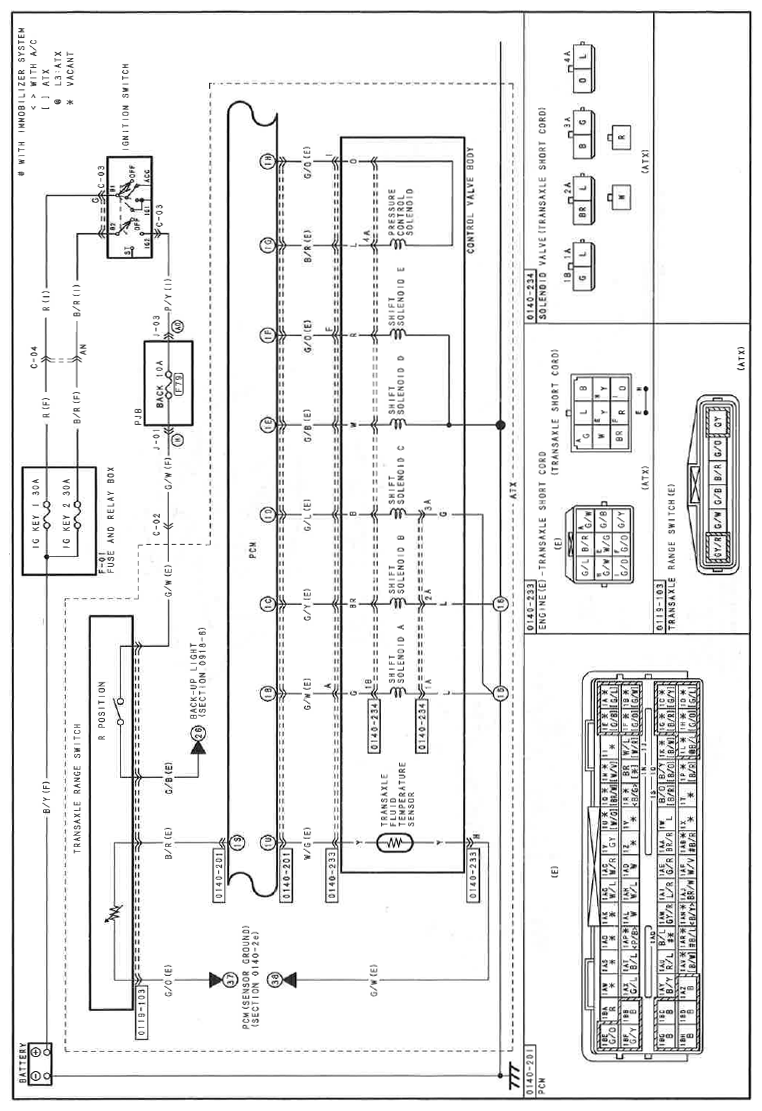

Fig 9: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2E; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

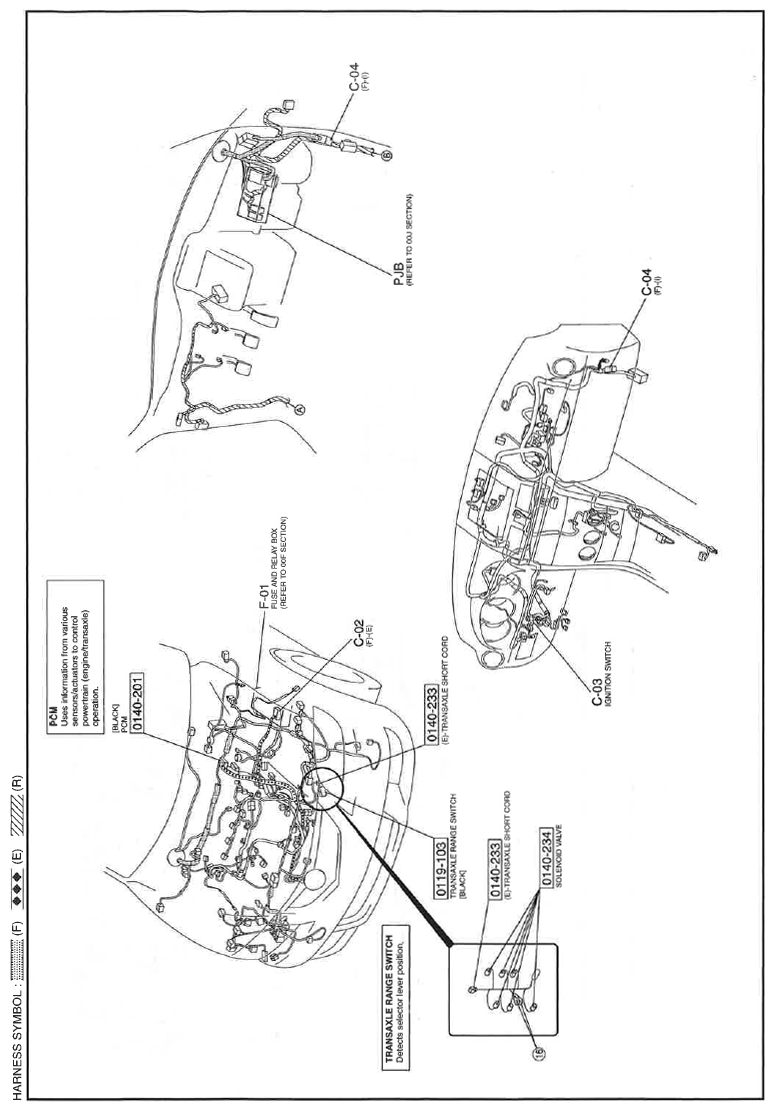

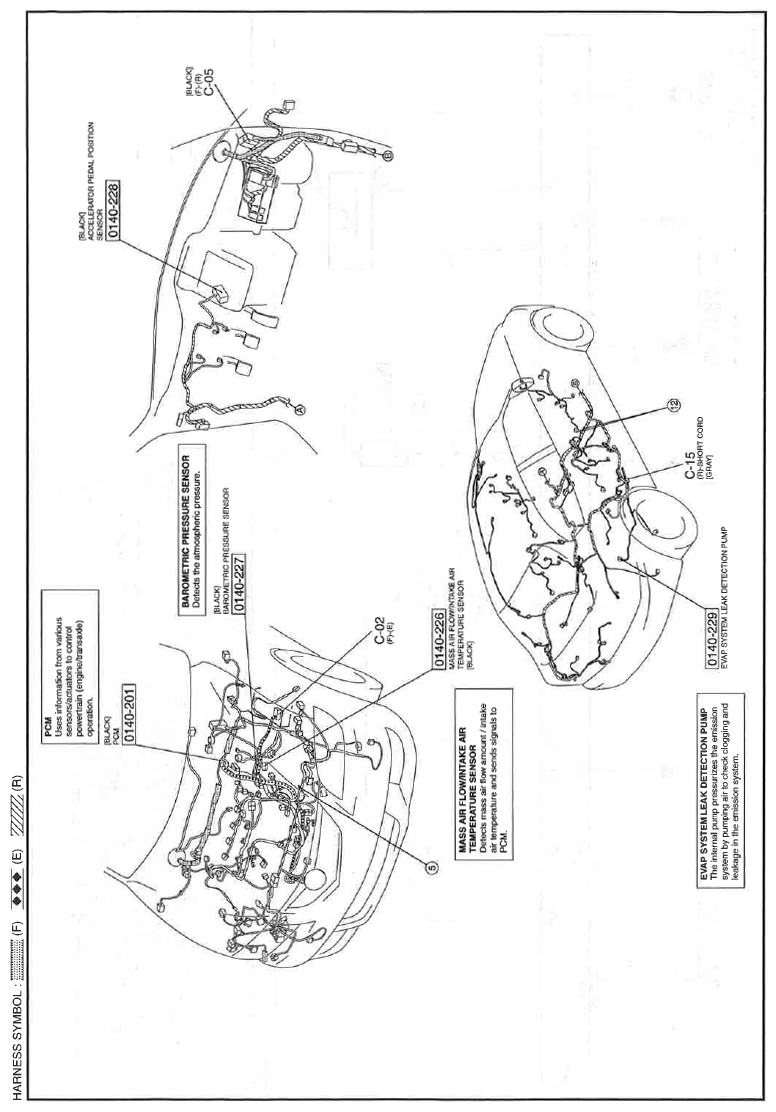

Fig 10: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2E; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 11: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2F; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

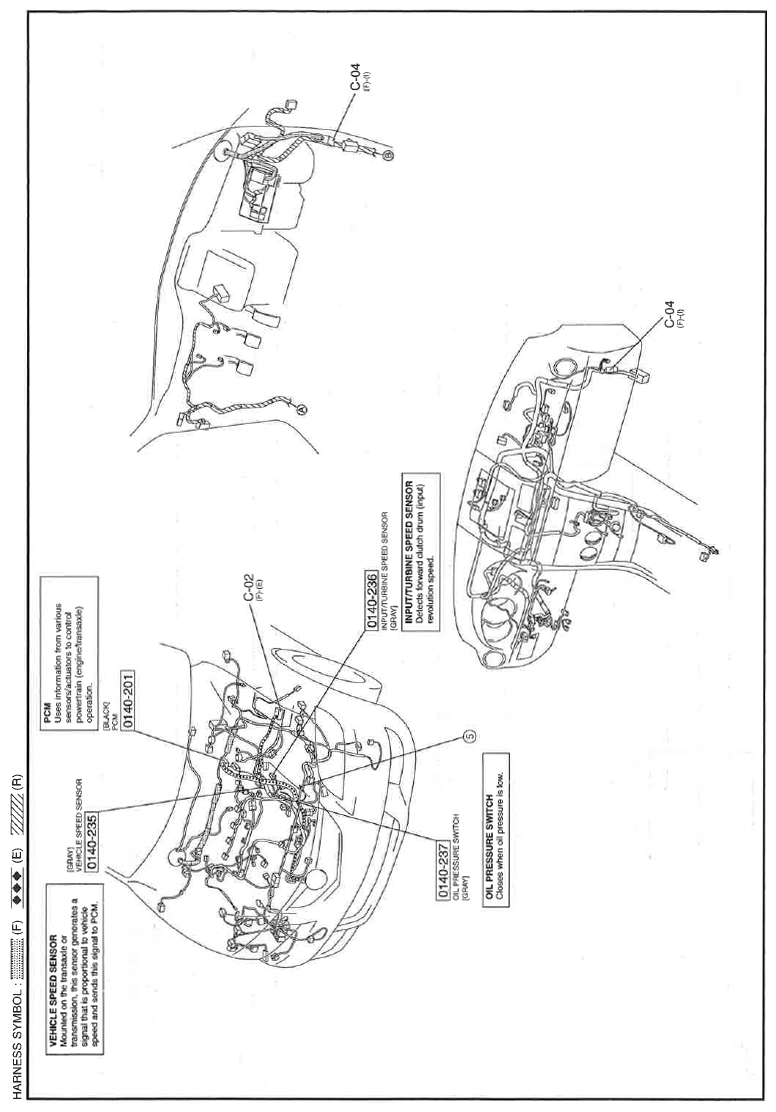

Fig 12: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2F; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 13: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2G; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 14: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2G; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

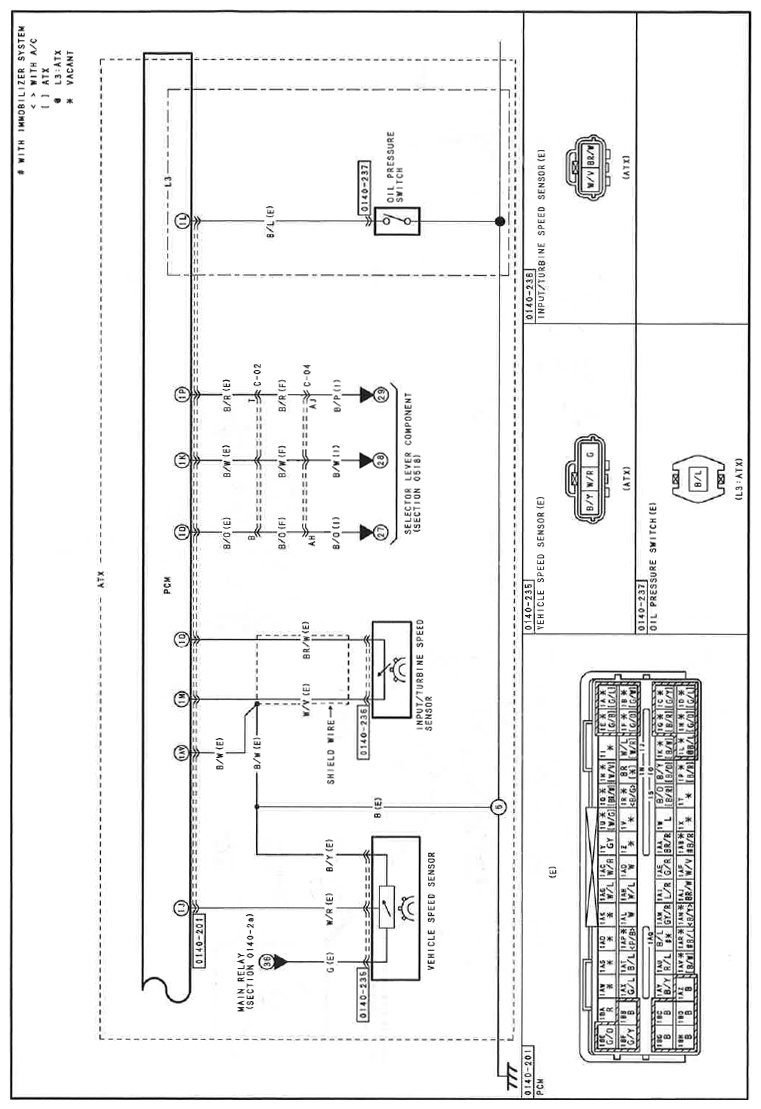

Fig 15: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2H; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 16: Control System - Except For California Emission Regulation Applicable Model Includes Automatic Transaxle Control Information (0140-2H; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
